Place of Origin:
china
Brand Name:
PM
Certification:
CE
Model Number:
TJM-568-30T
Contact Us

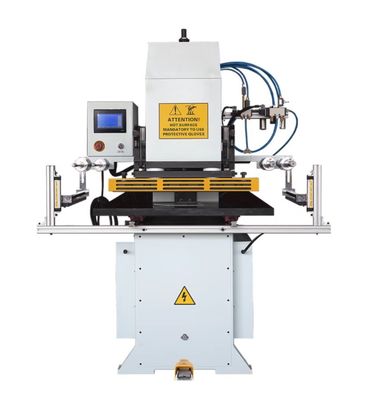

Paper Bag Hot Foil Stamping Machine for Handle Bag
Features:
1. One man operation with easy parameters setting on touch screen, mainly used for hot stamping, embossing and die cutting on various materials.
2. Boosting cylinder from German technology, air over hydraulic reinforcement driving system, freely switching from two-stroke and three-stroke, ensure high efficiency and energy-saving.
3. Linear guideway from HIWIN, Taiwan, ensure high precision on sliding out and in of the worktable.
4. CE standard, safety device and electrical system is equipped: Omron Safety light curtain, Heat protective cover, Omron touch screen, Digital control, Working status display.
5. Adjustable delay time and pressure for hot stamping to achieve various results.
Specifications:
| Model | TJM-568-8T | TJM-568-15T | TJM-568-30T |
| Max. Pressure | 8 Ton | 15 Ton | 30 Ton |
| Max. Stamping Size | 510×390mm | 590×440mm | 780×540mm |
| Max. Cutting Area | 490×370mm | 570×420mm | 760×520mm |
| Worktable Area | 780×490mm | 880×540mm | 980×640mm |
| Max. Working Height | 100mm | 100mm | 100mm |
| Workable Stroke | 160mm | 200mm | 250mm |
| Temperature | 0~300℃ | 0~300℃ | 0~300℃ |
| Air Supply | 0.8~1.2mpa | 0.8~1.2mpa | 0.8~1.2mpa |
| Total Power | 4.8kw | 5.8kw | 7.8kw |
| Weight | 900kgs | 1200kg | 1600kg |
| Dimension(LxWxH) | 1120×890×1940mm | 1200×960×1990mm | 1440×1330×2010mm |
Company Profile:
Our main products are Auto Bender, Laser cutter, Diecutting machine, Hot stamping machine, Laminator, Dieboard making tools and consumables in Packaging and Printing industry.
With our Auto Bender and Laser cutter, manual tools, users can set up or upgrade dieshop easily and raise efficiency greatly. Our high quality cutting rules feature good hardness and perfect flexibility and we also have various kinds of creasing rules, perforating rules, wave rules, cut-crease rules, zipper rules and glue flap rules.
