Place of Origin:
china
Brand Name:
PM
Certification:
CE
Model Number:
ML-750
Contact Us

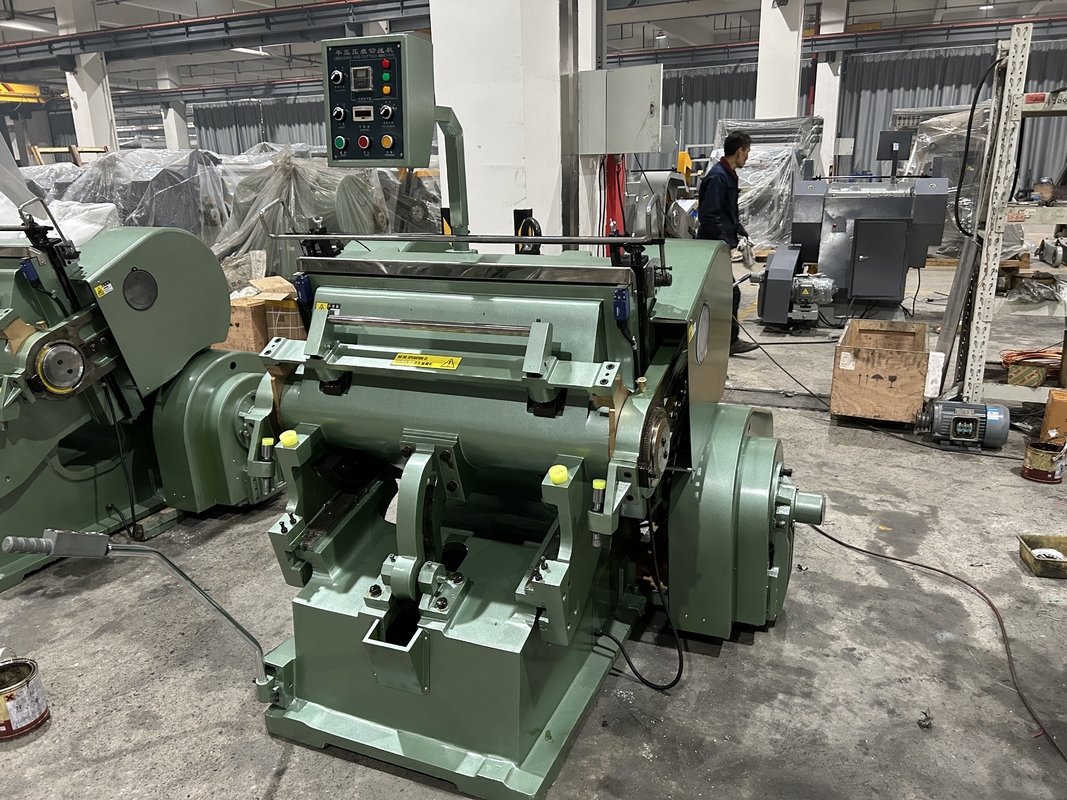

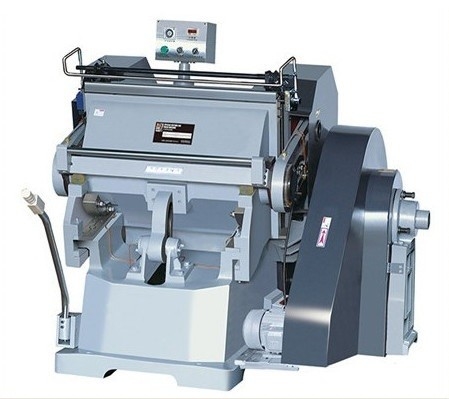

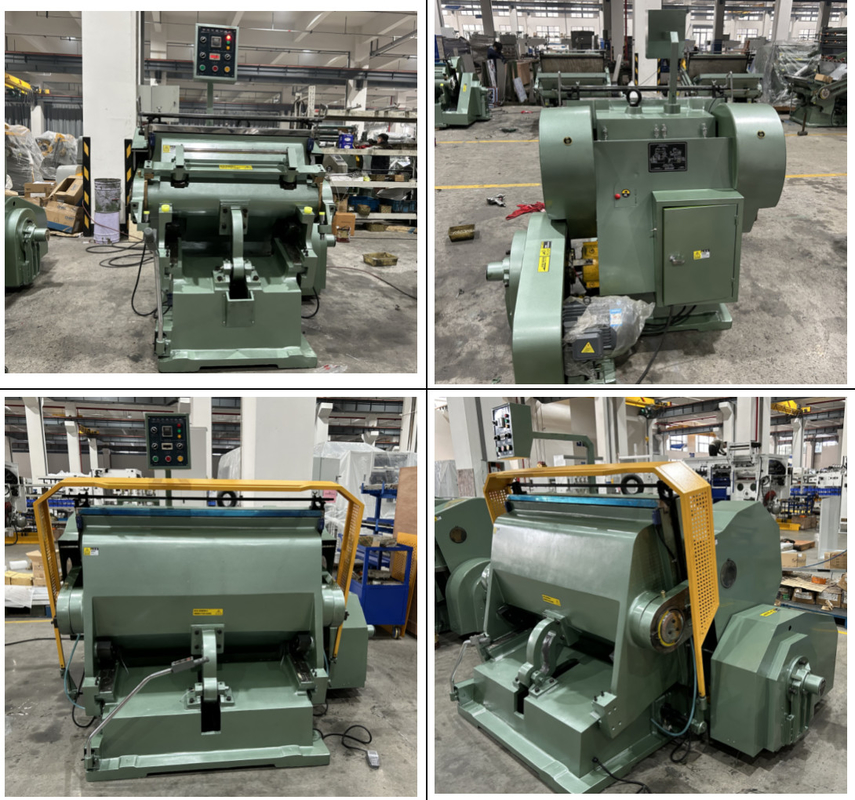

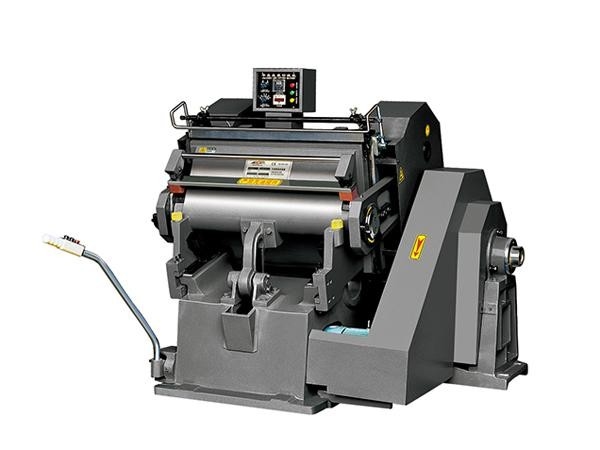

Our die cutting machine is an indispensable piece of post press equipment which is widely used for die cutting, and creasing of adhesive stickers, carrier bags, book covers, packing boxes, greeting cards, desk calendars, corrugated cartons, etc. It can effectively cut the desired material into large numbers of the same shape.
Features
1. Our die cut machine is manufactured using high quality material for high strength
2. It adopts a 2-step helical gear mechanism, resulting in stable operation, large cutting force, and low noise.
3. Single disc electromagnetic clutch ensures agile, reliable operation
4. Reasonably designed operational altitude, moving bed with a large open angle
5. Electrical system is designed in accordance with IEC standard.
6. Single sheet die cutting, continuous die cutting operations, adjustable delay range
7. Reliable safety system ensures operator safety.
Advantages
1. Our die cutting machine uses centralized lubrication pump system
2. It adopts world famous brand electrical components
3. Strengthened construction ensures smooth operation and long service life.
4. The adoption of active plate frame makes it convenient to install die cutting rule and adjust pressure, producing clear and beautiful results.
| Specification | |||||||
| Model | Inner Chase Size(mm) |
Speed (strokes/min) |
Max.Rule Length(m) | Motor Power(kw) | Weight(t) | Overall Dimensions(mm) | |
| ML-750 | 750*520 | 26±2 | ＜15 | 2.2kw | 1.8 | 1450×1300×1400 | |
| ML-930 | 930*670 | 23±2 | ＜25 | 4kw | 2.7 | 1550×1800×1650 | |
| ML-1040 | 1040*720 | 23±2 | ＜30 | 4kw | 3 | 1650×1800×1650 | |
| ML-1100 | 1100*800 | 20±2 | ＜32 | 4kw | 3.7 | 1800×1900×1800 | |
| ML-1200 | 1200*820 | 20±2 | ＜35 | 4kw | 4.2 | 1900×1900×1800 | |
| ML-1300 | 1300*920 | 16±2 | ＜40 | 5.5kw | 5.3 | 2100×1900×2000 | |
| ML-1400 | 1400*1000 | 15±2 | ＜45 | 5.5kw | 6 | 2200×1900×2000 | |
| ML-1500 | 1500*1050 | 14±2 | ＜48 | 7.5kw | 6.2 | 2300×1900×2000 | |
| ML-1600 | 1600*1250 | 13±2 | ＜50 | 11kw | 10.5 | 2800×2300×2400 | |
| ML-1800 | 1800*1300 | 13±2 | ＜60 | 11kw | 11.5 | 3000×2300×2500 | |
| ML-2000 | 2000*1400 | 13±2 | ＜65 | 15kw | 14 | 3200×2400×2600 | |
| ML-2200 | 2200*1400 | 13±2 | ＜70 | 15kw | 15 | 3400×2400×2600 | |
| ML-2500 | 2500*1400 | 11±3 | ＜80 | 22kw | 16 | 3700×2400×2600 | |
| ML-2800 | 2800×1600 | 11±3 | ＜85 | 30kw | 18 | 4000×2400×2600 | |
| ML-3000 | 3000×1600 | 11±3 | ＜90 | 30kw | 20 | 4200×2400×2600 | |
Features:
The heavy-duty machine body is made of cast iron (resin sand casting), which ensures its high strength and durability.

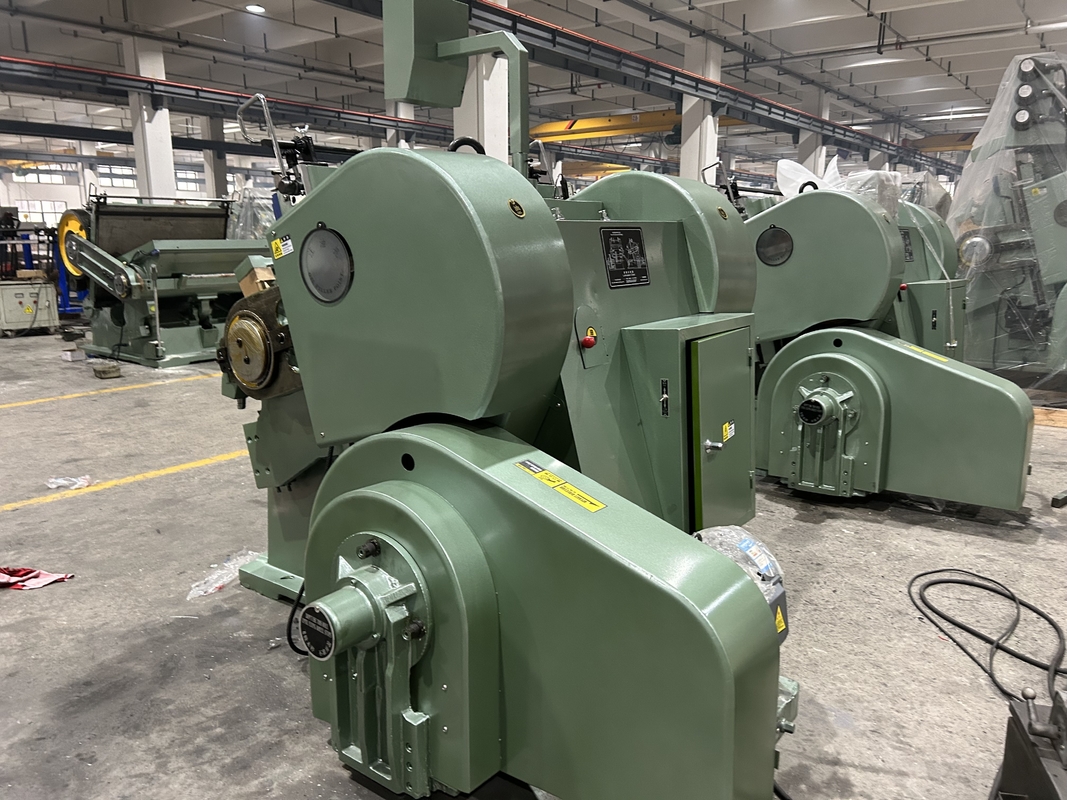

The large flywheel and helical gears allow the machine to run smoothly and at high pressure.
The advanced automatic central lubrication system ensures full lubrication for every necessary transmission part.
A dependable safety system: the machine is outfitted with a hand brake and several other brakes with limit switches.
Company profile:
Our main products are Auto Bender, Laser cutter, Diecutting machine, Hot stamping machine, Laminator, Dieboard making tools and consumables in Packaging and Printing industry.
FAQ
Q1: Are you a manufacturer ?
Yes.We are a professional manufacturer of machine for more than15 years.
