Place of Origin:
zhejiang
Brand Name:
PM
Certification:
CE
Model Number:
ML-750
Contact Us

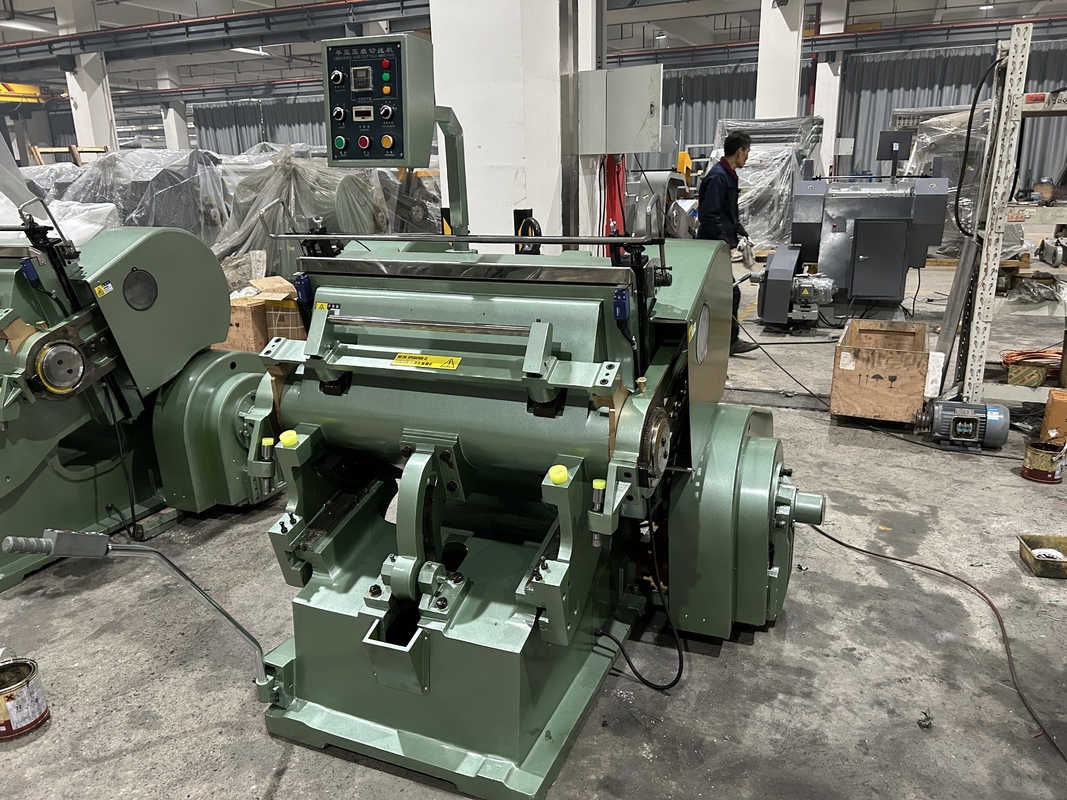

It is used for die cutting and creasing various types of paper, paperboard, corrugated board, label, and plastic sheets, with single pressing and cutting, continuous pressing and cutting, and an adjustable time delay during the continuation.
The operation system is well-designed and easy to use, and the clamp for pressing can be opened at a wide angle. It is equipped with a central lubrication system and automatic oil pumps.

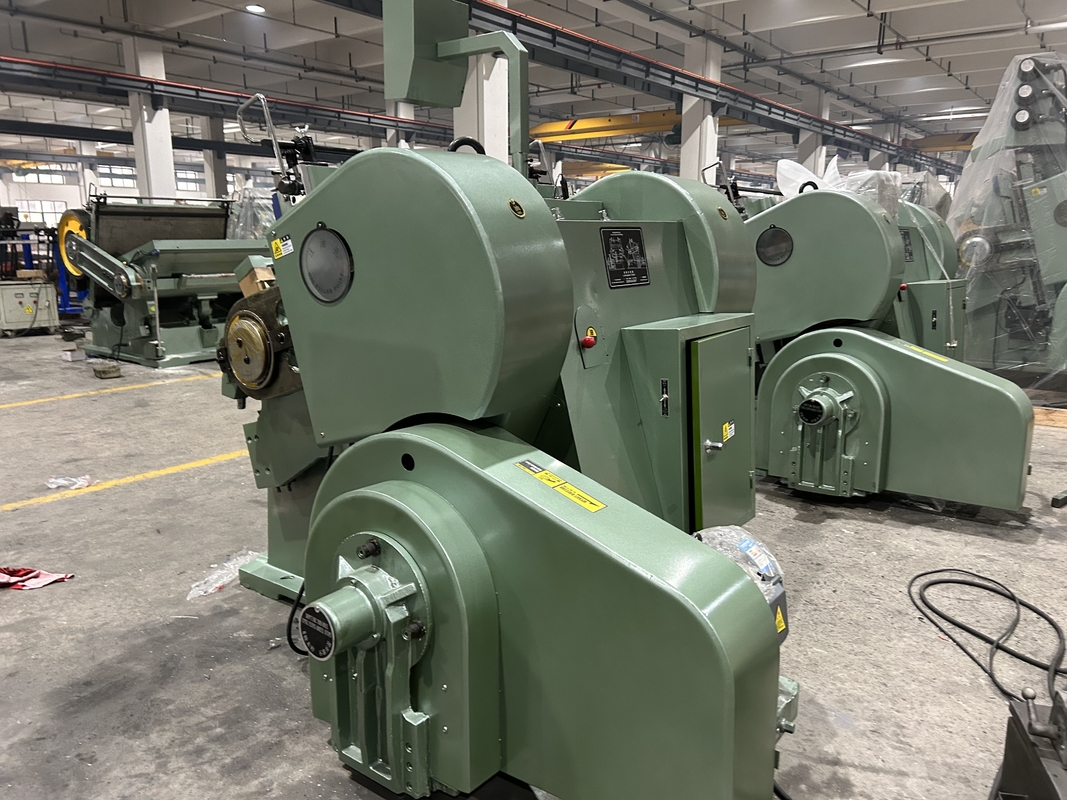

The body of the machine is made of high-strength cast iron. It is also equipped with a large flywheel, which can ensure high pressure for cutting.
Suitable materials:
Paper and paperboard
Corrugated board
Sticky label (kiss cut)
Plastic sheets, e.g., PVC and PP sheets (need to add the optional heating plate)
| Specification | |||||||
| Model | Inner Chase Size(mm) |
Speed (strokes/min) |
Max.Rule Length(m) | Motor Power(kw) | Weight(t) | Overall Dimensions(mm) | |
| ML-750 | 750*520 | 26±2 | ＜15 | 2.2kw | 1.8 | 1450×1300×1400 | |
| ML-930 | 930*670 | 23±2 | ＜25 | 4kw | 2.7 | 1550×1800×1650 | |
| ML-1040 | 1040*720 | 23±2 | ＜30 | 4kw | 3 | 1650×1800×1650 | |
| ML-1100 | 1100*800 | 20±2 | ＜32 | 4kw | 3.7 | 1800×1900×1800 | |
| ML-1200 | 1200*820 | 20±2 | ＜35 | 4kw | 4.2 | 1900×1900×1800 | |
| ML-1300 | 1300*920 | 16±2 | ＜40 | 5.5kw | 5.3 | 2100×1900×2000 | |
| ML-1400 | 1400*1000 | 15±2 | ＜45 | 5.5kw | 6 | 2200×1900×2000 | |
| ML-1500 | 1500*1050 | 14±2 | ＜48 | 7.5kw | 6.2 | 2300×1900×2000 | |
| ML-1600 | 1600*1250 | 13±2 | ＜50 | 11kw | 10.5 | 2800×2300×2400 | |
| ML-1800 | 1800*1300 | 13±2 | ＜60 | 11kw | 11.5 | 3000×2300×2500 | |
| ML-2000 | 2000*1400 | 13±2 | ＜65 | 15kw | 14 | 3200×2400×2600 | |
| ML-2200 | 2200*1400 | 13±2 | ＜70 | 15kw | 15 | 3400×2400×2600 | |
| ML-2500 | 2500*1400 | 11±3 | ＜80 | 22kw | 16 | 3700×2400×2600 | |
| ML-2800 | 2800×1600 | 11±3 | ＜85 | 30kw | 18 | 4000×2400×2600 | |
| ML-3000 | 3000×1600 | 11±3 | ＜90 | 30kw | 20 | 4200×2400×2600 | |
Features:
The heavy-duty machine body is made of cast iron (resin sand casting), which ensures its high strength and durability.
The large flywheel and helical gears allow the machine to run smoothly and at high pressure.
The advanced automatic central lubrication system ensures full lubrication for every necessary transmission part.
A dependable safety system: the machine is outfitted with a hand brake and several other brakes with limit switches.
Company profile:
Our main productsare Auto Bender, Laser cutter, Diecutting machine, Hot stamping machine, Laminator, Dieboard making tools and consumables in Packaging and Printing industry.
