700mm Length 13mm Standard Back or 9mm Narrow Back Pressboard Creasing Matrix Adhesive creasing channel For diemaking

China 700mm Length 13mm Standard Back or 9mm Narrow Back Pressboard Creasing Matrix Adhesive creasing channel For diemaking supplier
700mm Length 13mm Standard Back or 9mm Narrow Back Pressboard Creasing Matrix Adhesive creasing channel For diemaking supplier 700mm Length 13mm Standard Back or 9mm Narrow Back Pressboard Creasing Matrix Adhesive creasing channel For diemaking supplier 700mm Length 13mm Standard Back or 9mm Narrow Back Pressboard Creasing Matrix Adhesive creasing channel For diemaking supplier 700mm Length 13mm Standard Back or 9mm Narrow Back Pressboard Creasing Matrix Adhesive creasing channel For diemaking supplier 700mm Length 13mm Standard Back or 9mm Narrow Back Pressboard Creasing Matrix Adhesive creasing channel For diemaking supplier 700mm Length 13mm Standard Back or 9mm Narrow Back Pressboard Creasing Matrix Adhesive creasing channel For diemaking supplier

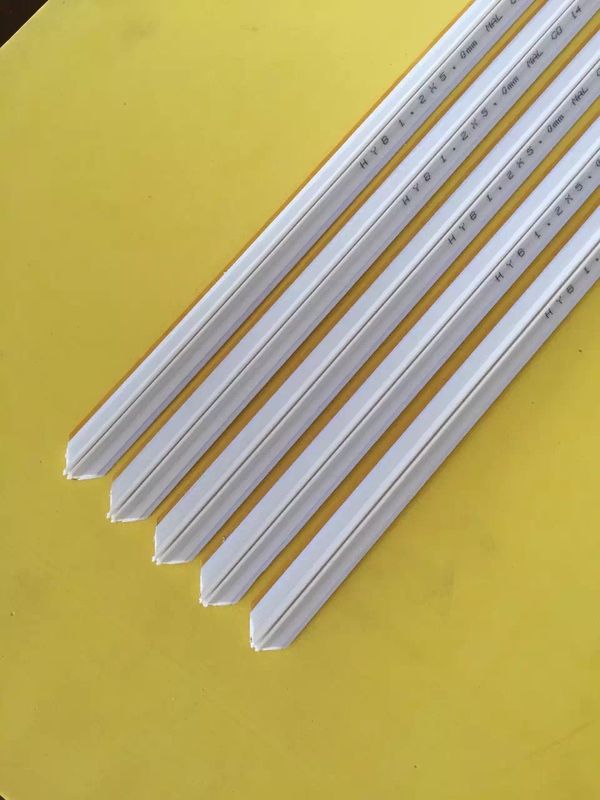

Large Image :  700mm Length 13mm Standard Back or 9mm Narrow Back Pressboard Creasing Matrix Adhesive creasing channel For diemaking

Product Details:

Place of Origin: China
Brand Name: Diamond
Certification: ISO9000
Model Number: PM-CM

Payment & Shipping Terms:

Minimum Order Quantity: 200 pieces
Price: USD 0.32-.4 Per piece
Packaging Details: 50 pcs in a box, 10 boxes in 1 wood case / 34 pcs in a box, total meter in 1 box is 23.80M
Delivery Time: One or Two Weeks
Payment Terms: L/C, T/T
Supply Ability: 50000 pieces per week
Contact Now
Detailed Product Description
Material: PVC, Fiber And Plastic Colour: White
Size: Different Size As Per Thickness/gsm Back Type: 13mm Standard Or 9mm Narrow
Length: 700mm Application: Box Or Carton Counter Plate

700mm Length 13mm Standard Back or 9mm Narrow Back Pressboard Creasing Matrix Adhesive creasing channel For diemaking

Specifications



Die making creasing matrix with adhesive
1. Used to box and carton creasing
2. Various sizes
3. High precision
4. 50pc




Die Making Creasing Matrixs for Die cutting and creasing machine


1. For die cutting .
2. Different size available.
3. Two different material :plastic and pressboard





Adhesive Creasing Matrix



Specifications:

Material: plastic,Pressboard.

Size:0.2*1.0mm,0.3*0.6mm,0.3*0.8mm,0.3*1.0mm,

0.3*1.1-1.7mm,0.4*0.6mm,0.4*0.8mm,

0.4*1.0-1.7mm,0.4*1.9mm,0.4*2.1mm,

0.5*0.6mm,0.5*0.8mm,0.5*1.0-1.7mm,and etc.

Advantages:

1) Fast and exact matrix

2) Self adhesive steel based

3) Channel from hard plastic



Accurate positon ability, good glue material to ensure sticky ability

Complete range of size to ensure all kind of demand

Plastic material and pressboard material both available

Ordinary type and Finger lift type (for easy peel off the back)



Back width: normal 13mm or narrow 9mm



Length: 700mm/pcs



Material:

1. Plastic and

2. Pressboard (more durable)



Technique characteristics

700mm Length 13mm Standard Back or 9mm Narrow Back Pressboard Creasing Matrix Adhesive creasing channel For diemaking

Quickly setting cteasing matrix, adopting advanced technology, and well making, is the rsult of years of technical innovation and practical application, enjoying a high reputation in the carton and box industry. Convenient handing and excellent quality make the creasing perfect.


A.Thickess of creasing matrix.
B.Brute mighty bottom film
C.Channel width of creasing matrix.
D.Locating plastic strip.
E.Protection film.




1.The amount needed to get the length of the indentation modulus  2.Indentation die cutting machine used incision, the indentation die cut into both ends of the natural 90-degree corner

3.Indentation with plastic mold on the position will be cut indentation in the card-mode version of the cutting line indentation 4.To protect Indentation model glue off the bottom

5.Die-cutting machine to transfer the pressure well, and then die-board installed, and then switch on a cutting machine, that is, positioning mode indentation in the mold plate on the end of 6.Indentation modulus tear on the positioning of plastic article



Paper weight
(g)
Thickness of the paper
Indentation line height (mm)
Indentation made common line
23.50
23.40
23.20
23.20
23.10
23.00
23.24
22.9
200
0.28mm
0.3×1.0
0.4×1.0

0.5×1.0

250
0.35mm
0.3×1.2
0.4×1.2
0.5×1.2

0.5×1.2

300
0.42mm
0.3×1.3
0.4×1.3
0.5×1.4

0.5×1.4

350
0.50mm

0.4×1.4
0.5×1.5
0.6×1.5

0.5×1.5

400
0.56mm

0.5×1.6
0.6×1.6

0.5×1.6
0.8×1.6
450
0.63mm

0.5×1.7
0.6×1.7
0.7×1.7

0.8×1.7
500
0.70mm

0.7×1.7
0.8×1.7

0.8×1.7
Note: Specifications recommended only choice, as the first choice Specifications

Corrugated selected in the control (by beer-cutting knife to do a high standard 23.8mm)

 700mm Length 13mm Standard Back or 9mm Narrow Back Pressboard Creasing Matrix Adhesive creasing channel For diemaking700mm Length 13mm Standard Back or 9mm Narrow Back Pressboard Creasing Matrix Adhesive creasing channel For diemaking700mm Length 13mm Standard Back or 9mm Narrow Back Pressboard Creasing Matrix Adhesive creasing channel For diemaking





Corrugated
After the compacted thickness
Indentation line height
Selection (1.05)
Selection (1.42)
E-Hang
0.65mm
23.10mm
0.7×2.3
__________
E-Hang
0.75mm
23.00mm
0.8×2.5
__________
B-Hang
0.85mm
22.90mm
0.8×2.7
0.8×3.2
B-Hang
0.95mm
22.80mm
1.0×3.0
1.0×3.5
C-Hang
1.05mm
22.70mm
1.0×3.2
1.0×3.5
C-Hang
1.15mm
22.60mm
___________
1.0×4.0





700mm Length 13mm Standard Back or 9mm Narrow Back Pressboard Creasing Matrix Adhesive creasing channel For diemaking
