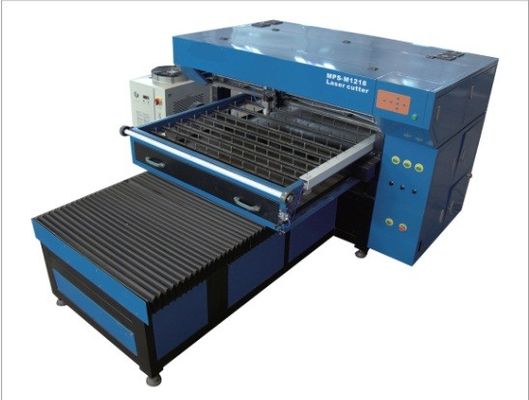

Die Board Maker Laser Cutting Machine With Pneumatic Splint And Upper Plate Rolling Device

Good quality Steel Cutting Rule for sales
Good quality Steel Cutting Rule for sales
I'm Online Chat Now

Die Board Maker Laser Cutting Machine With Pneumatic Splint And Upper Plate Rolling Device

China Die Board Maker Laser Cutting Machine With Pneumatic Splint And Upper Plate Rolling Device supplier
Die Board Maker Laser Cutting Machine With Pneumatic Splint And Upper Plate Rolling Device supplier Die Board Maker Laser Cutting Machine With Pneumatic Splint And Upper Plate Rolling Device supplier

Large Image :  Die Board Maker Laser Cutting Machine With Pneumatic Splint And Upper Plate Rolling Device

Product Details:

Place of Origin: ZHEJIANG, CHINA
Brand Name: CHN
Certification: CE
Model Number: MPS-M1218

Payment & Shipping Terms:

Minimum Order Quantity: One set
Price: USD 20,000 to 25,000 per set
Packaging Details: In wood case / need a 20' container
Delivery Time: Within 20 days
Payment Terms: L/C, T/T
Supply Ability: One set per week
Contact Now
Detailed Product Description
Model Number: MPS-M1218 Power Of Laser: 400w 600w
Size Of Working Table: 1200x1800 Warranty: 1 Year
After Sale Service: Oversea Installation And Training

MPS-M1218 SERIES OF NORMAL VERSION 400W 600W LASER CUTTING MACHINE FOR DIE BOARD MAKER



MPS-M series medium power laser cutting machine is a CHN-Laser's improved version of MPS-H series laser cutting machine. The device combines steadily laser generator with cutting machine into an organic whole, make the light path is more stable and mature technology, to solve the instability of cutting effect from the optical pah change; Greatly reduced equipment covers an area of space to avoid the customer can't reasonable use. Device configure high precision without gap precision ball screw and imported servo motor drive, running accuracy high; The unique lens water cooling system make the service life is longer; An open platform can satisfy large processing. This equipment is mainly used in ordinary electronic, stickers, blister packaging printing, advertising gifts, craft gifts, dei cutting board of model airplane industry, 3mm thickness stainless steel plate, 3mm carbon steel plate, acrylic sheets, 18mm density board laser cutting, etc.



Device Configuration



The cooling system for laser equipment, temperature control function is to ensure the stability of the beam quality and greatly improve laser life.

Die Board Maker Laser Cutting Machine With Pneumatic Splint And Upper Plate Rolling Device



High precision laser cutting system



Die Board Maker Laser Cutting Machine With Pneumatic Splint And Upper Plate Rolling Device



Pneumatic splint and upper plate rolling device, pull system maximize the use rate of plate and the material processing precision

Die Board Maker Laser Cutting Machine With Pneumatic Splint And Upper Plate Rolling Device



The transmission system is equipped with imported ball screw and linear guide rail.



Die Board Maker Laser Cutting Machine With Pneumatic Splint And Upper Plate Rolling Device



PARAMETERS OF APPARATUS

Model

MPS-M1218-S400

MPS-M1218-S600

Laser type

Co2 direct-current excitation glass apparatus

Laser wavelength

10.6um

Working area

1250x1850mm

Positioning accuracy

±0.1mm

Repeated Positioning accuracy

±0.02mm

Power supply

220V ±5% 50Hz

The total power

8.5kw

10.5kw

Total weight

1.1T

1.2T

Area of size

4700mmx2800mmx1400mm
