Wide Format Professional Laminating Machine Semi - Auto Lamination Machine

China Wide Format Professional Laminating Machine Semi - Auto Lamination Machine supplier
Wide Format Professional Laminating Machine Semi - Auto Lamination Machine supplier Wide Format Professional Laminating Machine Semi - Auto Lamination Machine supplier

Large Image :  Wide Format Professional Laminating Machine Semi - Auto Lamination Machine

Product Details:

Place of Origin: Zhejiang, China
Brand Name: Promega
Certification: CE
Model Number: PROM-720A PROM-920A PROM-1100A PROM-1400A

Payment & Shipping Terms:

Minimum Order Quantity: One set
Price: USD 8,000 to 25,000 per set
Packaging Details: Wooden case
Delivery Time: 15 days
Payment Terms: L/C, T/T
Supply Ability: 2 sets per week
Contact Now
Detailed Product Description
Min Laminating Size: 290x290mm Max Laminating Width: 680mm Or 880mm Or 1040mm Or 1300mm
After Sale Service: Oversea Installation And Training Automatic Grade: Fully Automatic
The Period Of Warrnty: 1 Year Laminating Temperature: 20 ~ 130℃

PROM-720A / PROM-920A /  PROM-1100A / PROM-1400A Siamese Semi-Automatic  Laminating Film Laminating Machine

Features



PROM series automatic laminating machine is a compound device, it is mainly equipped with transportation system, laminating system and cutting system. The electrical device is contolled by PLC, heating roller use the circulation of heated oil to insure the accuracy of laminating temperature. The whole machine has compact structure, automatization and humanity operation. It is the good choice for the large and medium scale enterprise.




Technical Parameters
Model  Prom-720A Prom-920A Prom-1100A Prom-1400B
Max Laminating Size 680mm 880mm 1040mm 1300mm
Laminating Temperature ≤130℃ ≤130℃ ≤130℃ ≤130℃
Laminating speed 0-30m/min 0-30m/min 0-30m/min 0-30m/min
Gross Power 13kw 15kw 16kw 17kw
Total Weight 1600kg 1800kg 2000kg 2300kg
Overall Dimensions 4600x1500x1500mm 4600x1700x1500mm 4600x1900x1500mm 4500x2300x1600mm







Configuration



· Omron frequency converter is equipped for infinitely variable speed, and the operator can change the machine' s speed easily and guarantee the machine' s running stable.



· One-piece construction design makes the machine run more stably, and lengthens the machine' s lifetime.



· Manual paper feeding.



· Magnetic regulating plate can be adjusted easily to regulate manual paper feeding.



· High precision of chrome plated heating roller is equipped with built-in oil heating system, which has excellent performance to temperature control. The laminating temperature is adjustable upon applications.



· Hydraulic pressuring system provides big and steady pressure to guarantee good laminating quality.



· Air expansion shaft releases film, and precisionizes film release, and also makes the loading and unloading of film roll more convenient.



· The combination of air expansion shaft and braking device can adjust film release tension and speed.



· Film cutter cuts film width to make it meet paper size. The cut film is left on the film release spindle.



· Film perforating wheel perforates film edge for the automatic cut of laminated paper.



· Anti-curvature device: when going through anti-curvature device, the laminated paper shall be leveled at once and wont curve again after cut.



· Pneumatic cutting system realizes automatic paper cut as long as the operator inputs the workable paper size on the text screen.



· The cut paper is sent to paper receiving table. And the table height is adjustable upon applications.

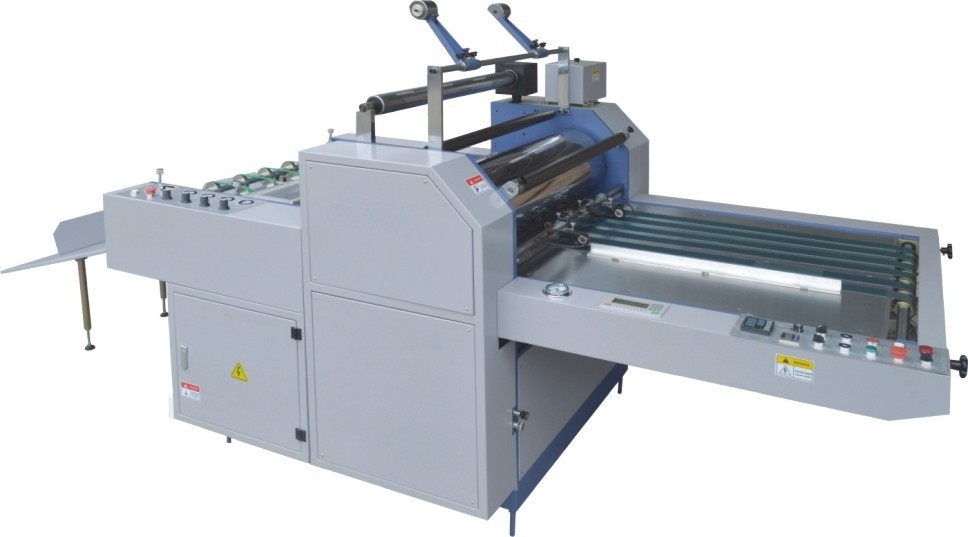

Wide Format Professional Laminating Machine Semi - Auto Lamination Machine

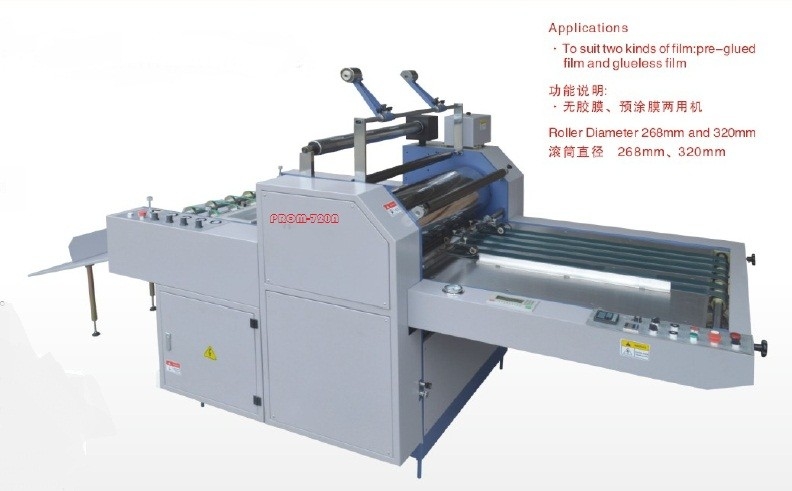

Wide Format Professional Laminating Machine Semi - Auto Lamination Machine
