Double Side Semi - automatic Commercial Laminating Machine Film Laminator Machine

China Double Side Semi - automatic Commercial Laminating Machine Film Laminator  Machine supplier

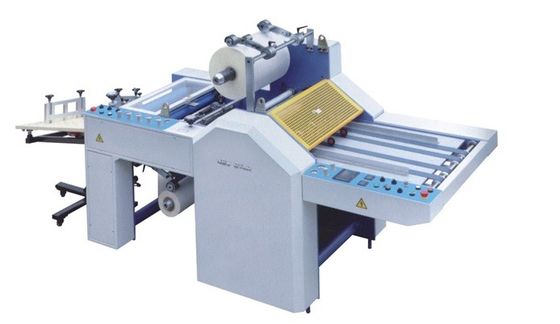

Large Image :  Double Side Semi - automatic Commercial Laminating Machine Film Laminator Machine

Product Details:

Place of Origin: Zhejiang, China
Brand Name: Promega
Certification: CE
Model Number: PROM-540B

Payment & Shipping Terms:

Minimum Order Quantity: One set
Price: USD 6,000 to 10,000 per set
Packaging Details: Wooden case
Delivery Time: 10 days
Payment Terms: L/C, T/T
Supply Ability: 2 sets per week
Contact Now
Detailed Product Description
After Sale Service: Oversea Installation And Training Automatic Grade: Fully Automatic
The Period Of Warrnty: 1 Year Laminating Temperature: 20 ~ 130℃
Max Paper Width: 520mm Gross Power: 13kw

Double Side Semi-automatic  Laminating Equipment  Film Laminator  Machine



Configuration



·Machine is equipped with no paper miss sensor, which are controlled by photoelectric and

  mechanical systems. When no paper or paper break occurs, the machine will stop automatically

  for self-protection.



·Man-machine interface system : color touch screen simplifies the machine operation. On the touch screen, working status of the machine can be checked at any time.



·Upper and down heating roller are equipped with special heater for raising temperature. Individual temperature control perfected the temperature keep steady, ensure the precision of double side lamination temperature.



·Pneumatic pressuring system provides automatically stable pressure to guarantee good laminating quality. And the pressure can also be adjusted upon requests.



·Pneumatic separator system realizes automatic paper separation.



·After separation,paper sheets are collected by jogger.


Technical Parameters
Model  Prom-540B
Max Paper Width 680mm
Paper Thickness ≤130℃
Max Laminating speed 25m/min
Gross Power 13kw
Total Weight 1000kg
Overall Dimensions 3300x1150x1450mm





Double Side Semi - automatic Commercial Laminating Machine Film Laminator  Machine





Features



Prom-540B semi-auto double side film laminating machine is a small laminator which is

designed and manufactured upon the market needs. The machine has the feature of compact

structure and easy operation. The electric and pneumatic system is controlled by PLC system,

color touch screen. And one person can perate it easily. When the operator inputs paper size on touch screen, the machine can realize automaticaJly paper lamination and cut processes, and is an excellent performance of lamination equipment which is a good choice for small and medium-size enterprises.
