Home ProductsSteel Cutting Rule

Fully Hardened Edge Die Cutting Rule 2PT or 3PT / Zipper Rule For Die Board Maker

Good quality Steel Cutting Rule for sales
Good quality Steel Cutting Rule for sales
I'm Online Chat Now

Fully Hardened Edge Die Cutting Rule 2PT or 3PT / Zipper Rule For Die Board Maker

China Fully Hardened Edge Die Cutting Rule 2PT or 3PT / Zipper Rule For Die Board Maker supplier
Fully Hardened Edge Die Cutting Rule 2PT or 3PT / Zipper Rule For Die Board Maker supplier Fully Hardened Edge Die Cutting Rule 2PT or 3PT / Zipper Rule For Die Board Maker supplier

Large Image :  Fully Hardened Edge Die Cutting Rule 2PT or 3PT / Zipper Rule For Die Board Maker

Product Details:

Place of Origin: China
Brand Name: Diamond
Certification: ISO9000
Model Number: PG-ZR

Payment & Shipping Terms:

Minimum Order Quantity: 50 Pairs For One Standard
Price: USD 3.5-4.5 per Piece (1000mm)
Packaging Details: 2PT: 100 Pcs/Box 50 Pairs/Box 3PT:70 Pcs/Box 35Pairs/Box
Delivery Time: Within 7 Working days
Payment Terms: L/C, T/T
Supply Ability: 100 Pairs per day
Contact Now
Detailed Product Description
Raw Material: Hot-rolled Carbon Steel Thickness: 2PT (0.71mm) Or 3PT (1.07mm)
Edge: High-frenquency Quenching Edge Hardness: 54-56HRC
Body Hardness: 36-38HRC Height: 23.80MM
Length: One Meter Lengths Standard: 3x3mm 3x5mm 5x5mm

Fully Hardened Edge Die Cutting Rule 2PT or 3PT 3x3 3x5 5x5 Zipper Rule Laser Cutting Rule For Die Board Maker

Manufacturing Technique



All steps of producing Zipper Rule has been controlled strictly. Good control system has been used in each process during the manufacturing which includes raw materials purchasing, heat treatment, grinding edge, high-frenquency quenching and antirust packaging which will guarantee that the quality of our perforating rules is reliable and stable.



Specifications

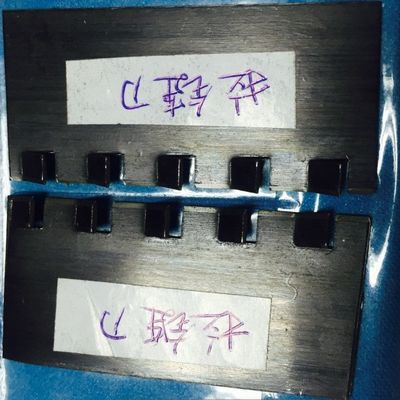

Our zipper rule is produced by the hardened edge rule so that the advantage of our zipper rule is constant slit depth, clean deges and accurate pitches. this is why our zipper rule can avoid and 'drag' in the practice.



As the following shows, there are different asymmertical shpaes which are usually used in a left and right hand. In order to make the client use our zipeer rules more easily, we also design a two way zipper rule which eliminates the need for right and left versions. we commonly provided clients with three standard types, which shown below are Type A, Type B and Type C, grouped by varying the required length ratios. We also can adjust the length ratios according to the customers' needs.



Fully Hardened Edge Die Cutting Rule 2PT or 3PT / Zipper Rule For Die Board MakerFully Hardened Edge Die Cutting Rule 2PT or 3PT / Zipper Rule For Die Board MakerFully Hardened Edge Die Cutting Rule 2PT or 3PT / Zipper Rule For Die Board Maker



Fully Hardened Edge Die Cutting Rule 2PT or 3PT / Zipper Rule For Die Board Maker







Marketing Strategy In The Future

Diamond is one of the earlies diecutting rule producers in the mainland of China. From 2000, we has began to manufactured different types of zipper rules and exported to foreign markets. During these year, we have got a lot of experience from practise in produce and customers' feedback.  Diamond laser cutting rules, which includes diecutting rule, creasing rule, proforating rule, zipper rule, have been exported tomany target countries and areas such as Middle East, Brazil, India, Chile, Argentina and Russia. In these years, we have already our high quility products to some countries in Euro. Clients are usually very satisified with our diecut rule.

Fully Hardened Edge Die Cutting Rule 2PT or 3PT / Zipper Rule For Die Board Maker
