Home ProductsDie Cutting Equipment

Manual Control Dual Use Hot Stamping and Die Cutting Machine 1 year Warranty

Good quality Steel Cutting Rule for sales
Good quality Steel Cutting Rule for sales
I'm Online Chat Now

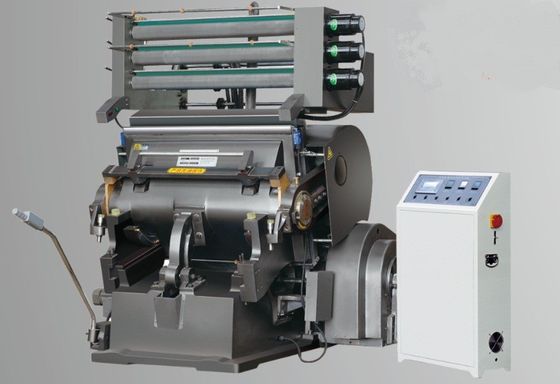

Manual Control Dual Use Hot Stamping and Die Cutting Machine 1 year Warranty

China Manual Control Dual Use Hot Stamping and Die Cutting Machine 1 year Warranty supplier
Manual Control Dual Use Hot Stamping and Die Cutting Machine 1 year Warranty supplier Manual Control Dual Use Hot Stamping and Die Cutting Machine 1 year Warranty supplier Manual Control Dual Use Hot Stamping and Die Cutting Machine 1 year Warranty supplier

Large Image :  Manual Control Dual Use Hot Stamping and Die Cutting Machine 1 year Warranty

Product Details:

Place of Origin: Zhejiang, China
Brand Name: Promega
Certification: CE
Model Number: Pro-HSDC

Payment & Shipping Terms:

Minimum Order Quantity: One set
Price: USD 4,500 ~ 20,000 per set
Packaging Details: In wood case
Delivery Time: 10~15days
Supply Ability: 20 sets every month
Contact Now
Detailed Product Description
Condition: New Automatic Grade: Manual
Creasing And Cutting Area: From 750x520mm To 1300x920mm Hot Stamping Area: From 740x510mm To 1300x920mm
Working Pressure: 100T~250T Warranty: 1 Year

Manual Control Dual Use Hot Stamping and Die Cutting Machine Package Machinery Standard Sereis For Flat Die Cut

The Use of Machine



The computerized foil stamping and die cutting machine is a new generation of high precision and high efective innovative products, mainly suitable for hot stamping all kinds of colored aluminum foil, pressing the concave and convex and cutting various pictures trademarks, product catalog advertising, cartons, books, cover, New Year cards and other decorating, printing products. It is an indeal processing equipment for the printing, packaging and plastic industries.



Main Specifications



Model Pro-HSDC750 Pro-HSDC930 Pro-HSDC1040 Pro-HSDC1100 Pro-HSDC1200 Pro-HSDC1300
Max. Planten area available 750x520mm 930x640mm 1000x720mm 1100x800mm 1200x820mm 1300x920mm
Max. Stamping area available 740x510mm 930x640mm 1040x720mm 1100x800mm 1200x820 1300x920mm
Working pressure 100T 150T 160T 180T 200T 250T
Foil-delivered length 520mm 640mm 720mm 800mm 820mm 920mm
Foil-delivered group 2 groups 3 groups 3 groups 3 groups  3 groups 3 group
Working speed 26 Strokes 23 Strokes 23 Strokes 20 Strokes 20 Strokes 15 Strokes
Main motor power 2.2Kw 4Kw 4Kw 4Kw 4Kw 5.5Kw
Total power 7 Kw 13 Kw 13 Kw 16 Kw 16 Kw 20 Kw
Net Weight 2200 kg 3500 kg 3800 kg 4700 kg 5000 kg 6500 kg
Deminsion (LxWxH)

1450x1900

x19500mm

1800x1900

x2150mm

1800x1950

x2150mm

2150x2150x2300mm 2150x2250x2300mm 2200x2300x2300mm



Main parts



Taiwan PLC



Manual Control Dual Use Hot Stamping and Die Cutting Machine 1 year Warranty



Stepping motor



Manual Control Dual Use Hot Stamping and Die Cutting Machine 1 year Warranty



Aluminum alloy stick



Manual Control Dual Use Hot Stamping and Die Cutting Machine 1 year Warranty



Speed control motor



Manual Control Dual Use Hot Stamping and Die Cutting Machine 1 year Warranty



Honeycomb panel (optional)



Manual Control Dual Use Hot Stamping and Die Cutting Machine 1 year Warranty



Stainless steel Heating pipe



Manual Control Dual Use Hot Stamping and Die Cutting Machine 1 year Warranty



Draw out type device for foil



Manual Control Dual Use Hot Stamping and Die Cutting Machine 1 year Warranty





Features

  • Adopt Taiwan PLC driver control, high precision, easy to operate, stable performance
  • Stepping motor has large torque and can be set to the desired size, be accurate, stable, reduce waste
  • Having upper and lower delay, traveling, jogging and the temperature conrol
  • There are independent speed motor in feeding and delivery device to make feeding and delivery be more convenient and practical
  • The roller is made by aluminum alloy material. It has light weight but high precision, reduce the running and will have extended service life
  • Optional honeycomb board to nake heating nore evenly and quickly, easy to adjust plate.
  • Heating uses stainless steel. It will be more durable.
