Double Location Device Die Cutting Equipment Package Machinery For Die Cut

China Double Location Device Die Cutting Equipment Package Machinery For Die Cut supplier
Double Location Device Die Cutting Equipment Package Machinery For Die Cut supplier Double Location Device Die Cutting Equipment Package Machinery For Die Cut supplier

Large Image :  Double Location Device Die Cutting Equipment Package Machinery For Die Cut

Product Details:

Place of Origin: Zhejiang, China
Brand Name: Promega
Certification: CE
Model Number: Pro-SADCM

Payment & Shipping Terms:

Minimum Order Quantity: One set
Price: USD 28,000 to 48,000 per set
Packaging Details: In wood case
Delivery Time: 20 working days
Payment Terms: L/C, T/T
Supply Ability: 50 sets per year
Contact Now
Detailed Product Description
Max. Paper Size (mm): From 1080x780 To 1680x1250 Min. Paper Size (mm): From 400x380 To 650x550
Max. Cutting Size: From 1070x770 To 1650x1220 Die-cutting Pressure: 200~300 Tons
After Sale Service: Oversea Installation And Training Automatic Grade: Semi-automatic
Application: Package Industry

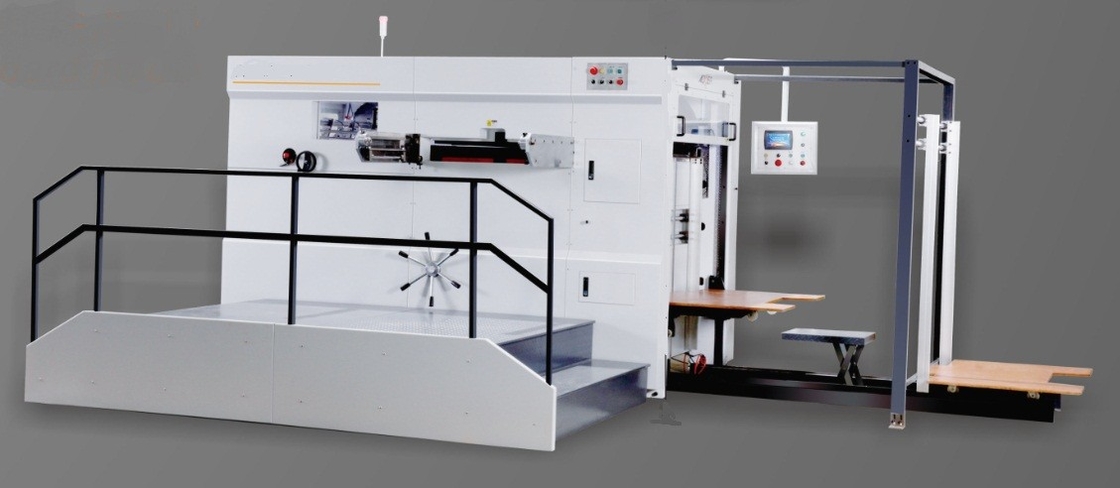

Semi-Automatic Die Cutting Machine Package Machinery Standard Model For Die Cut

The Introduction of Semi Automatic Die Cutting Series



After several years practise, we develop and produce this wonderful machine. Compared to other machines, it has a lot of competitive advantages. This machine has a lot of features inculing scientific structure, reasonable design, simple operation, smooth running and wide field of application. It is suitable for thick paper board, grey board, corrugated board and carton.This machine can be in stead of manual die cutting machine to improve safety and work efficiency. With the increase of labor cost, this machine wii be a good choice for customer to increase not only the quality of product but also the profits of factory.



Optional Parts

On the basis of standard configuration, there are some optional parts which can be choose to improve the performance of machine. these optional parts including:

Automatic front feeding device

Double Location Device Die Cutting Equipment Package Machinery For Die Cut

Manua-automatic dual purpose device

Double Location Device Die Cutting Equipment Package Machinery For Die Cut

Double location device

Double Location Device Die Cutting Equipment Package Machinery For Die Cut

Automatic stripping device

Double Location Device Die Cutting Equipment Package Machinery For Die Cut

Automatic feeding device without stopping machine

Double Location Device Die Cutting Equipment Package Machinery For Die Cut




Main Specification



Model Pro-SADCM-1080 Pro-SADCM-1300 Pro-SADCM-1500 Pro-SADCM-1650
Max.Paper Size 1080x780 1320x980 1500x1100 1680x1250
Min. Paper Size 400x380 550x480 550x480 650x550
Max. Cutting Size 1070770 1300x950 1470x1070 1650x1220
Cutting Pressure 200 250 250 300
Thickness of Corrugated Board 1-7 1-8 1-8 1-9
Cutting Precision 0.2mm 0.25mm 0.30mm 0.40mm
Height of Peper Pile 1140 1260 1300 1320
Height of Peper Delivery Pile 1080 1200 1250 1260
Height of Peper Feeding Pile 1298 1400 1500 1580
The Total Power 16.75Kw 17.2Kw 18Kw 20.5Kw








Further Feature



1. The Pre-stack Device (optional part) can increase work efficieny and save time to get more profits.

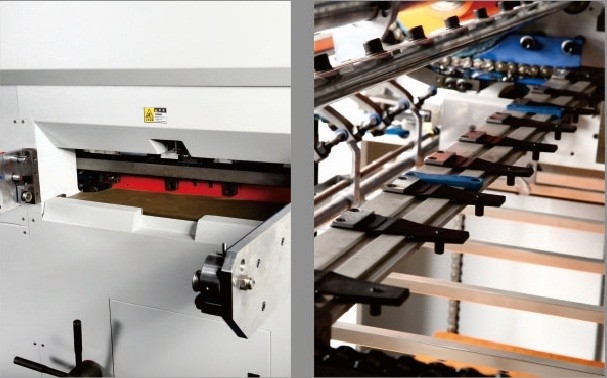

2. This machine use mechanical brush device to press paper. At the same time, it is equiped with bidirectional blowing device to send paper smoothly. Set the function of speed reduction or stopping machine after the paper is full.



Double Location Device Die Cutting Equipment Package Machinery For Die Cut



Double Location Device Die Cutting Equipment Package Machinery For Die Cut



3. The casting is made by high strength resin sand process to improve the precision. This machine uses high precision worm and worm wheel to ensure less deformation in high speed.



Double Location Device Die Cutting Equipment Package Machinery For Die Cut



4. This machine uses imported electrical parts and bearing. It uses oil circulation system and PLC automatic control oil pump system to keep machine running smoothly under high speed which will increase the working life of machine.



Double Location Device Die Cutting Equipment Package Machinery For Die Cut
