Automatic Laminator Thermal Film Laminating Machine Big Size With PLC Control Plate

China Automatic Laminator Thermal Film Laminating Machine Big Size With PLC Control Plate supplier

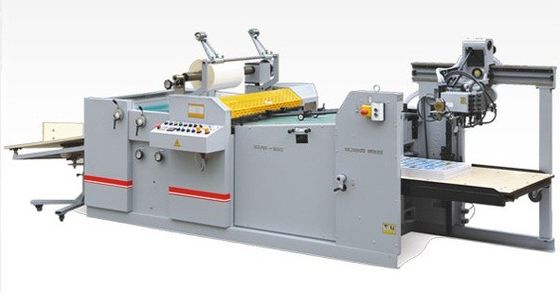

Large Image :  Automatic Laminator Thermal Film Laminating Machine Big Size With PLC Control Plate

Product Details:

Place of Origin: China
Brand Name: Promega
Certification: CE
Model Number: Pro-TFL800 / Pro-TFL1000

Payment & Shipping Terms:

Minimum Order Quantity: one set
Price: USD 15,000 ~ 25,000 per set
Packaging Details: In wood case
Delivery Time: 20 days
Payment Terms: L/C, T/T
Supply Ability: 5 sets per week
Contact Now
Detailed Product Description
Condition: New Automatic Grade: Fully Automatic
Max Paper Size: 780x1040mm Min Paper Size: 350x440mm
Gross Power: 22kw Weight: 1500kgs

Big Size Fully Automatic Laminator Thermal Film Lamination Equipment

Applications:


It is used for the lamination pre-glued film and paper.



Features:


Pro-TFL800 fully automatic laminator is designed for the lamination of pre-glued film and paper. This laminating machine is composed of feeding system, laminating system and cutting system. The electric and pneumatic devices are controlled by programmable control (PLC) system. Heating roll adopts oil circulation heating system to homogenize and stabilize laminating temperature. This machine centralizes the features of compact structure, high automation, humanized operation design, and is an excellent choice for large and medium-size enterprises.



Configuration:


1. Automatic paper feeder adopts oil-free vacuum pump to feed paper automatically.


2. Automatic paper feeding system is equipped with no paper protector and paper break protector, which are controlled by photoelectric and mechanical systems. When no paper or paper break occurs, the machine will stop automatically for self-protection.


3. Conveying table is furnished with air aspirator and front lay etc. to guarantee paper conveying and overlap stable and regular.


4. High precision of chrome plated heating roller is equipped with oil circulation heating system, which has excellent performance to temperature control. The laminating temperature is adjustable upon applications.


5. Pneumatic pressuring system provides automatically steady pressure to guarantee good laminating quality. The pressure is adjustable upon applications.


6. Air expansion shaft releases film, and precisionizes film release, and also makes the loading and unloading of film roll more convenient.


7. The combination of air expansion shaft and braking device can adjust film release tension and speed.


8. Film cutter cuts film width to make it meet paper size. The cut film is left on the film release spindle.


9. Film perforating wheel perforates film edge for the automatic cut of laminated paper.


10. Anti-curvature device: when going through the anti-curvature device, the laminated paper shall be leveled at once and won’t curve again after cut.


11. Pneumatic cutting system realizes automatic paper cut.


12. Vibration receiving table: cut paper is sent to vibration receiving table, and will be stacked and tidied up automatically.





Technical Parameters

Model

Pro-TFL800





Max Paper Size

780*1040mm





Min Paper Size

350*300mmm





Paper Thickness

125-500g/㎡





Max Laminating Speed

40 m/min





Gross Power

22kw





Total Weight

1500kg





Overall Dimensions

4800*1650*1700mm







Automatic Laminator Thermal Film Laminating Machine Big Size With PLC Control Plate

vibration receiving table                     conveyer belt             oil circulation heating system



Technical Parameters:

Model No.

Pro-TFL1000





Max Paper Size

1040*780mm





Min Paper Size

350*440mmm





Laminating Speed

0-40m/min





Paper Thickness

125-500g/㎡





Gross Power

22kw





Overall Dimensions

4800*1850*1700mm





Weight

1600kgs







Automatic Laminator Thermal Film Laminating Machine Big Size With PLC Control Plate

Automatic Feeder                  PLC control plate                 pneumatic stacker
