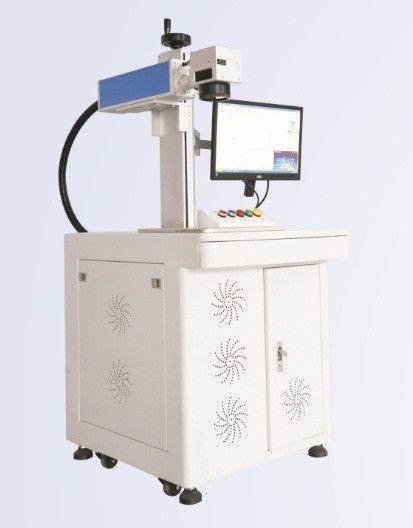

Fiber Laser Marking Machine 20W 30W CNC Laser Cutting Machine 100x100mm 150x150mm

China Fiber Laser Marking Machine 20W 30W CNC Laser Cutting Machine 100x100mm 150x150mm supplier

Large Image :  Fiber Laser Marking Machine 20W 30W CNC Laser Cutting Machine 100x100mm 150x150mm

Product Details:

Place of Origin: Guangzhou, China
Brand Name: Promega
Certification: CE
Model Number: FLM-20/30W

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 1000 to 2000 per set
Packaging Details: In wood case
Delivery Time: 3-5 days
Payment Terms: T/T, L/C
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Processing Area: 100x100mm Or 150x150mm Laser Module Lifetime: 1.064um
Repetition Frequency: 20-80KHz Quality Of Laser Bean: M2<1.5
Maximum Line Marking Speed: 12000mm/s Vibrational Mirror: High-performance Scanning Vibrational Mirror
Marking Line Depth: <0.2mm Smallest Marking Character: 0.15mm
Minimum Marking Line Width: 20um Electricity Needs: 220V 50Hz 12A
Total Power: <1KW Cooling Method: High Precision Constant Temperature/closed Cycle Cooling
Graphic File Format Supported: PLT,AI,CDR,DWG,DXF,BMP,JPEG

Fiber Laser Marking Machine 20W 30W CNC Laser Cutting Machine

Applicable Industry



Phone key, light penetration key, electronic parts and components, integrated circuit (IC), electrician electric appliance, communication products, sanitary wares, tool accessories, glasses and watches, jewelry, auto parts, buckles, kitchenware and stainless teel products industries.



Description



Use the original import isolation for optical fiber laser windon protection, enhance the stability and laser lifespan.



Laser beam quality is much better than traditional solid laser marking machine, which is the base model (TEM00) output, and diameter of Foucus flare is less than 20 um. Divergence Angle is a quarter of the laser diode pump. Especially suitable for fine, precision marking.



No need any maintenance and long hours lifespan, small volume, suitable for poor working condition.



Applicable materials



Metal products, engineering plastics, electroplat coating materials, coating materials, spraying materials, plastic rubber, epoxy resin, ceramics and so on.



Main configuration



High performance control components



Fiber Laser Marking Machine 20W 30W CNC Laser Cutting Machine 100x100mm 150x150mm



German Imported Scanlab Scanning Head



Fiber Laser Marking Machine 20W 30W CNC Laser Cutting Machine 100x100mm 150x150mm



The Original Import IPG Optical Fiber Generator



Fiber Laser Marking Machine 20W 30W CNC Laser Cutting Machine 100x100mm 150x150mm



Sample Display



Fiber Laser Marking Machine 20W 30W CNC Laser Cutting Machine 100x100mm 150x150mm



Fiber Laser Marking Machine 20W 30W CNC Laser Cutting Machine 100x100mm 150x150mm
