Automatic Folder Gluer for 4 corner / 6 corner box with Crash bottom and Pre folding width 880mm

Good quality Steel Cutting Rule for sales
Good quality Steel Cutting Rule for sales
I'm Online Chat Now

Automatic Folder Gluer for 4 corner / 6 corner box with Crash bottom and Pre folding width 880mm

China Automatic Folder Gluer for 4 corner / 6 corner box with Crash bottom and Pre folding width 880mm supplier
Automatic Folder Gluer for 4 corner / 6 corner box with Crash bottom and Pre folding width 880mm supplier Automatic Folder Gluer for 4 corner / 6 corner box with Crash bottom and Pre folding width 880mm supplier Automatic Folder Gluer for 4 corner / 6 corner box with Crash bottom and Pre folding width 880mm supplier Automatic Folder Gluer for 4 corner / 6 corner box with Crash bottom and Pre folding width 880mm supplier Automatic Folder Gluer for 4 corner / 6 corner box with Crash bottom and Pre folding width 880mm supplier

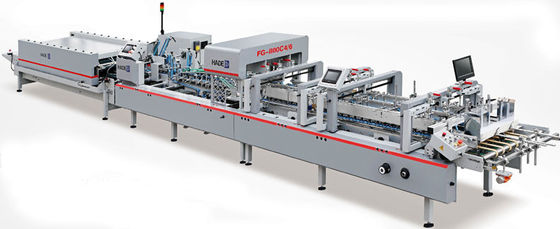

Large Image :  Automatic Folder Gluer for 4 corner / 6 corner box with Crash bottom and Pre folding width 880mm

Product Details:

Place of Origin: Zhejiang, China
Brand Name: Diamond
Certification: CE
Model Number: PM-4/6 corner

Payment & Shipping Terms:

Minimum Order Quantity: One set
Price: US $28,000 - 45,000 / Set
Packaging Details: Wooden case
Delivery Time: 25 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 5 Sets per Month
Contact Now
Detailed Product Description
Condition: New Packaging Material: Paper
Automatic Grade: Automatic Driven Type: Electric
Place Of Origin: China After-sales Service Provided:: Engineers Available To Service Machinery Overseas

800C/1100C4&6 automatic folder gluer (4&6 corner)





I. Machine model:800/1100C4&6  fully-automatic folder gluer (4&6 corner)

Reminder:

See it much more clear by double click.

Automatic Folder Gluer for 4 corner / 6 corner box with Crash bottom and Pre folding width 880mm

Power supply :  380V AC    50Hz





II. Features:

The whole machine adopts the structure of laser-cut steel plates.

● Use German Contitech synchronous belts and wheels, correct running ratio, high speed, stable working, low noise and long service life.

● Modular structure and hommization design can enhance the installation and box change-over time.

● Inner couriers in the machine are adjusted by motors (position indicator is optional)

● Bearings are used in this machines: NSK, ASHAHI, HRB. Most of electrical components are Schneider brand.

Some advantages:

  1. Belts are running in rail guide, will not go to sides.
  2. Heavy-duty pneumatic longer conveyor, suitable for corrugated, and the whole conveyor can be moved left and right. The two sections of the conveyor can be moved front and back, up and down, more suitable for different corrugated boxes.
  3. Equipped with jogger, avoiding fish-tail boxes.
  4. The whole machine is of more compact structure, more beautiful figure.
  5. Fastening devices for shafts are used to make the machine run more stable and longer service life.
  6. The speed in pressing section is 30% faster than that in the main section, avoiding the boxes jammed onto the conveyor.

Automatic Folder Gluer for 4 corner / 6 corner box with Crash bottom and Pre folding width 880mm



III. Main Technical Parameter:

Paper size: Max size for straight line bo:W×L: 800×700 mm          Min:90×60 mm

                       Max size for double-sided box:W×L: 700×800 mm      Min:90×60 mm

                       Max size for lock bottom box:W×L: 700×800 mm         Min:120×60 mm

                       Max size for 4-corner box::700 mm                            Min:150 mm

                       Max size for 6-corner box: 700 mm                               Min:250 mm

Paper weight:  duplex box 180-800g/m2,  E.F.G (Corrugated)

Max  speed:       250m/min

Overall dimension13800×1700×1400mm  (L×W×H)

Weight:            4000Kg(around)

Power consumption:  17KW



IV.Basic configuration:

Feeder

Automatic Folder Gluer for 4 corner / 6 corner box with Crash bottom and Pre folding width 880mm

●RAPPLON feeding belts     10pcs  (specification:8×25×1110mm)

● Equipped with adjustable feeding knives:  2 pcs

Equipped with vibrator motor : 1 set

Equipped with Japanese infinite speed regulator : 1 set



  4&6Corner Section

Automatic Folder Gluer for 4 corner / 6 corner box with Crash bottom and Pre folding width 880mm

Automatic Folder Gluer for 4 corner / 6 corner box with Crash bottom and Pre folding width 880mm





























This section is installed in a stand, according to the folding size, set up and rotate the hook height. Japan Yaskawa servo system is used.

Inner couriers are adjusted by motors (6 sets)

NITTA belts: 12 pcs

specification:δ4*30*3490=3pcs  δ4*19*2930=3 pcs   δ4*30*3200=3 pcs  δ4*19*2930=3 pcs



Lower Gluer

Automatic Folder Gluer for 4 corner / 6 corner box with Crash bottom and Pre folding width 880mm

● Lower gluing tank both at left and right

● Multi-layer sealing anti-leaking device is used in shaft core.

● Stainless steel gluing wheel is used.



Folding section



Automatic Folder Gluer for 4 corner / 6 corner box with Crash bottom and Pre folding width 880mm







Special long folding section, boxes can be well folded and formed in this section.

Inner couriers are adjusted by motors: 2 set

Rail-guide for belts are used to avoid belts going to sides.

NITTA folding belts  6 pcs

Specification:   δ4*19*1630=2 pcs   δ4*30*5300=2 pcs   δ4*30*4660=2 pcs



Pressing section

Automatic Folder Gluer for 4 corner / 6 corner box with Crash bottom and Pre folding width 880mm

Taiwan Fotek sensor and counter

Pneumatic kicker for counting

Nitta belts

Specification: δ4*19*2700=2 pcs   δ4*22*2765=2 pcs



Conveyor



Long conveyor design

Pneumatic control

The upper section can be moved front and back.

The two belts are in driving system, so they could be in more synchronous running.

Belts specification:3*600*5893=1 pcs     3*600*8664=1 pcs



Electrical system:

Automatic Folder Gluer for 4 corner / 6 corner box with Crash bottom and Pre folding width 880mmAutomatic Folder Gluer for 4 corner / 6 corner box with Crash bottom and Pre folding width 880mm

                 Inverter and low-voltage electrical components: Schneider

                 Motor: Shanghai Dedong

PLC control system

                 ● Main motor: 7.5KW ,  motor in conveyor: 1.5KW , motors for adjusting the screw bars  : 60W and 90W

                 ●Independent electrical cabinet is used.



Main electrical components and brand

Name

Made in

Brand

Feeding belts

Switzerland

RAPPLON

Folding belts

Japan

NITTA

Synchronous belts

Germany

Contitech

Inverter

France or Germany

Schneider or REXROTH

Sensor for 4&6 corner

Japan

SUNX

Sensor in output

Taiwan

FOTEK

Infinite speed regulator

Japan

SAKAI

Ball bearing with seat

Japan

ASAHI

PLC

Japan

OMRON

touch screen

Taiwan

WEINVIEW

Main motor

Shanghai

DEDONG

Motor in conveyor

Taiwan

AIMOXIN

motor for adjusting screw bars

Xiamen

  JSCC

Power supply switch

Taiwan

MW

Servo motor

Japan

YASKAWA

Servo driver

Japan

YASKAWA

Servo encoder

Japan

KOYO

Electrical components

France

Schneider







V.Packing:First packed by plastic bags, then by vacuum bags, at last installed onto the pallets



VI.Price:



VIIGuarantee:

           12 months from the date of machine received, but those consumption parts are not included.



VIIIOthers

      Electrical control diagrams and List of easily-damaged parts are attached.

        ● Air source should be supplied by user :40L,1.5KW
