Auto Collection Automatic Packing Machine Paper Cup Forming Machine 12/32 Oz Capacity

Auto Collection Automatic Packing Machine Paper Cup Forming Machine 12/32 Oz Capacity
Auto Collection Automatic Packing Machine Paper Cup Forming Machine 12/32 Oz Capacity Auto Collection Automatic Packing Machine Paper Cup Forming Machine 12/32 Oz Capacity Auto Collection Automatic Packing Machine Paper Cup Forming Machine 12/32 Oz Capacity Auto Collection Automatic Packing Machine Paper Cup Forming Machine 12/32 Oz Capacity

Large Image :  Auto Collection Automatic Packing Machine Paper Cup Forming Machine 12/32 Oz Capacity

Product Details:
Place of Origin: Zhejiang, China
Brand Name: Diamond
Certification: CE
Model Number: PM-X12
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 9000 to USD 17500 PER SET
Packaging Details: Wood case 3100*1600*2300 mm, 3500kgs
Delivery Time: 30-45 days as per Mould size and type
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 10 sets per month

Auto Collection Automatic Packing Machine Paper Cup Forming Machine 12/32 Oz Capacity

Description
Product Type: Paper Cup Machine Processing Type:: Paper Folding Machine
Voltage:: 380V, 50/60Hz, 3 Phase Dimension(L*W*H):: 3100*1600*2300 Mm
Weight:: 3500kgs Production Speed:: 60-75 Pcs/min
Cup Size:: 2.5-16 OZ Raw Material:: PE Coated Paper
Paper Grams:: 190-350g/㎡ Cup Counting Holder Packing: 1230*720*1900 Mm
High Light:

Bag Packaging Machine

,

Automatic Packaging Machine

,

12Oz paper cup forming machine

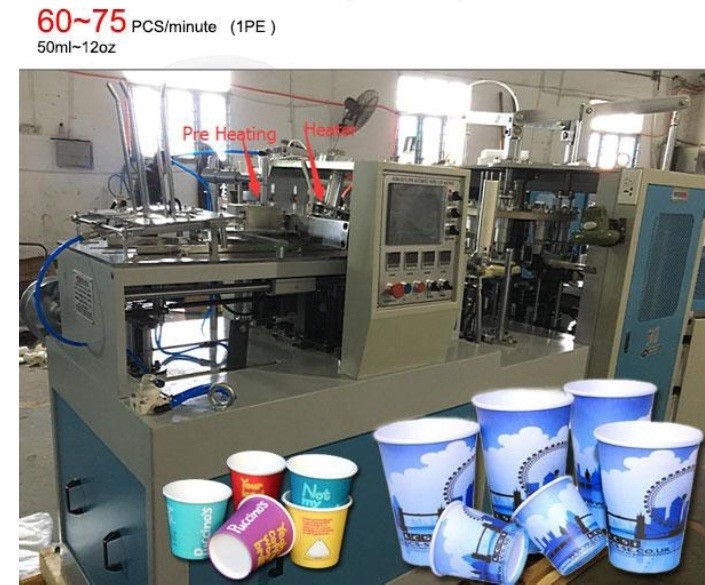

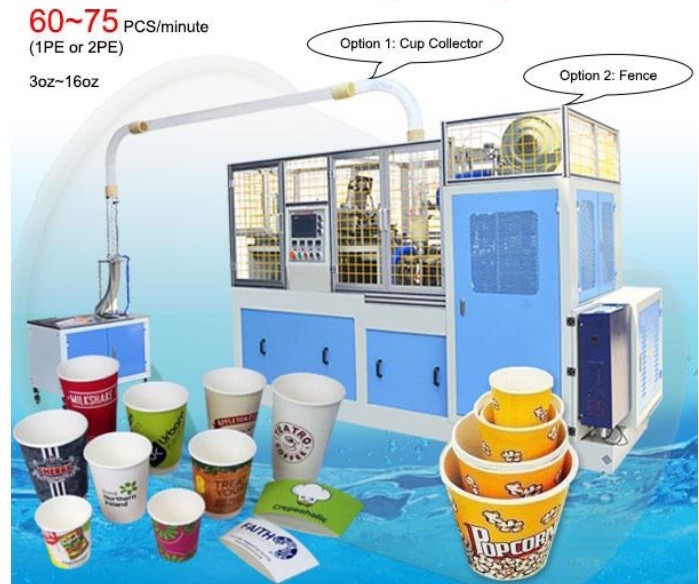

Automatic paper cup forming machine is our latest machine, which is made base on our manufacturing experience and advanced technology from oversea countries, it is a pioneer equipment in China. The machine comes with rectangle tube and channel steel welding structure, which is stronger and small deformation, automatic lubrication system, which makes all mechanical parts working much more smoothly. The cup bottom adopts the stretching die which make the bottom sealing quality better and less leaking percentage. It has PLC control, sensor failure detecting system, cup bottom paper feeding controlled by servo motor, bottom paper will be delivered when cup tube comes, otherwise no bottom paper delivery. The machine has safety guard to protect the people working safely, it is the best choice for making paper cups. It has working speed 65pcs/min, with Ultrasonic sealing, automatic lubrication, PLC control and touch screen, safety guard and stacker, with cam system instead of chains, 2 gear boxes included(125-8 and 80 model).
Technical data:
Paper Cup Size : 4-12OZ
Speed: 45-65pc/min
Paper cup top diameter: 45mm-85mm (Standard Machine)
Paper cup bottom diameter: 35mm-62mm (Standard Machine)
Paper cup height: 35mm-125mm (Standard Machine)
Raw material : 180-350gsm Single and double PE coating paper
General power: 4.8kw
Electricity : 380V 3 phases or 220V 1 phase
Air consumption: 0.2cbm/min
Weight: 2500kgs
Packing Dimensions: 2730mm×1460mm×1800mm
Machine with Modification:
Top Diameter: 105mm
Bottom Diameter: 80mm
Cup Height: 160mm
Packing Dimensions: 2960mm×1460mm×2000mm
Specification:

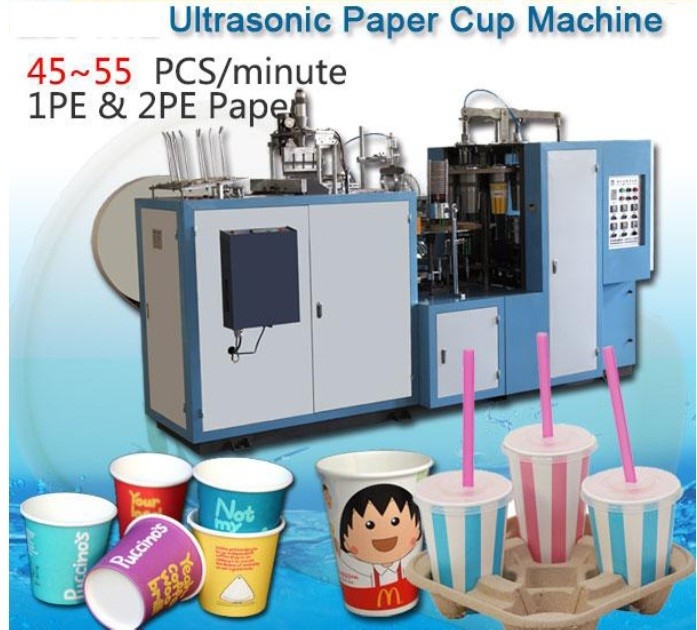

1. Ultrasonic sealing is suitable both for 1 PE coating and 2 PE coating paper cups.
2. Paper cup bottom sealing by hot air station.
3. It is easy to make cups of different size by changing moulds.
4. One-side PE coated paper cup is suitable for hot drink and some cold drink, like hot water, hot coffee, some beverage etc; It is not suitable for some certain cold drinks, like coke, ice cream, the paper cup will become soft and leakage after storing them in fridge. So for cold drinks and some special beverage you should use double-side PE coated paper cups.


Model   HIGH SPEED PAPER CUP MACHINE

      A:Top outside diameter: 70~95mm B: Height :50~135mm
      C: Bottom outside diameter:40~75mm
      D: Depth of Cup bottom: 5~12mm)
Cup size 7OZ, 8 OZ ,12 OZ,16 OZ
    Auto Collection Automatic Packing Machine Paper Cup Forming Machine 12/32 Oz Capacity 0
Function   Make the fan paper to be paper cup ( making the paper cup)

Applicable Paper   190~360gsm (one side PE or two side PE coated paper)

Production speed   100-120 pcs/min

Sealing methods   Hot air welding device and Ultrasonic Sealing System

Electrical Rated power 16Kw 380V 50Hz 3 phase
requirement Actual power 8 KW 380V 50 HZ 3 phase

Air Compressor Rated air 0.4m3/min ,Air source request (double PE): 0.5-0.8 MPA
supply Actual air 0.3m3/min ,Air source request (double PE): 0.5-0.8 MPA

Overall dimensions   (L*W*H )M 3.03*1.55*2.25 , 1.29*0.57*0.1

Weight   3500 Kgs
