Paper Box Automatic Packing Machine Carton Erecting Machine For Hamburger Box

Good quality Steel Cutting Rule for sales
Good quality Steel Cutting Rule for sales
I'm Online Chat Now

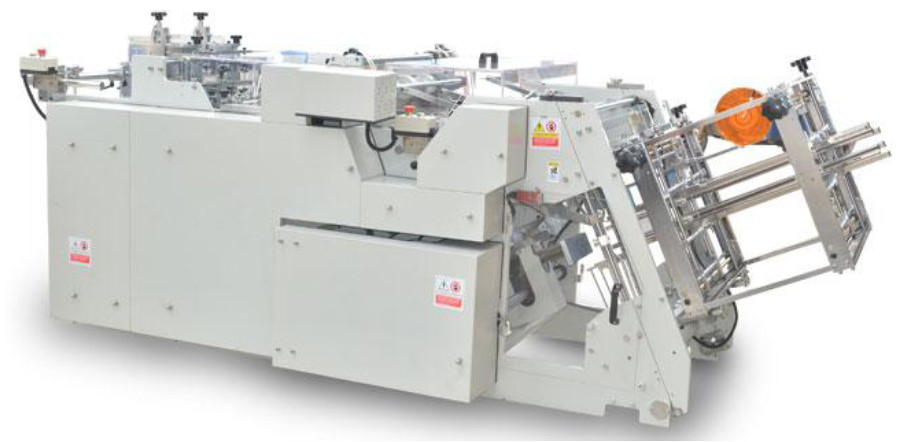

Paper Box Automatic Packing Machine Carton Erecting Machine For Hamburger Box

China Paper Box Automatic Packing Machine Carton Erecting Machine For Hamburger Box supplier
Paper Box Automatic Packing Machine Carton Erecting Machine For Hamburger Box supplier Paper Box Automatic Packing Machine Carton Erecting Machine For Hamburger Box supplier Paper Box Automatic Packing Machine Carton Erecting Machine For Hamburger Box supplier Paper Box Automatic Packing Machine Carton Erecting Machine For Hamburger Box supplier Paper Box Automatic Packing Machine Carton Erecting Machine For Hamburger Box supplier

Large Image :  Paper Box Automatic Packing Machine Carton Erecting Machine For Hamburger Box

Product Details:

Place of Origin: Zhejiang, China
Brand Name: Diamond
Certification: CE
Model Number: PM-9905

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: UAD 30000 to USD 38500 PER SET
Packaging Details: Wood case 2900*1400*1500mm of 2600kgs
Delivery Time: 30-45 days as per moulds size and type
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 5 SETS PER MONTH
Contact Now
Detailed Product Description
Product Type:: Paper Box Making Machine Processing Type:: Paper Folding Machine
Voltage:: 380V, 50/60Hz, 3 Phase Power(W):: 3KW
Dimension(L*W*H):: 2900*1400*1500mm Weight:: 2600KGS
Seal System: Water Glue Speed: Max 180 Pcs/m
Suitable SIze: Max Paper 580*450 Suitable Material:: Paper, Board, Carton, Corrugate
Fries Chips: Fries Box Gluing Machine Burger Box: Hamburger Box Erecting Machine
Boat Tray: Boat Tray Sealing Machine

Carton Erecting Machine (paper box forming machine) is an automatic machine, specialize in making food carton, box, container which are made from cardboard, paper, paperboard, corrugated paper etc.

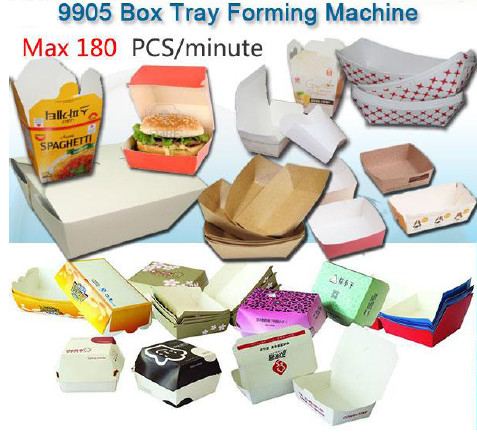

The food box(carton, container, dish, tray) is widely used as burger box, hot-dog box(tray), one block box, food pail box(Chinese food box, take-away box), fries box(chips box, chips tray), lunch box, meal box, etc.

Advantage:

# Compact structure, Strong frame, keep the machine reliable and durable with low noise.

# Hard Plastic-glass cover, Safe and visible for user.

# Easy exchange molds to make different products, charging and adjusting time is very short.

# PLC program control the whole line, available to make complicated boxes.

# Automatic collection, stock, and count.

# Human being designed control button and panel, more easy and safe runs by user.



Technical Specification

Model:

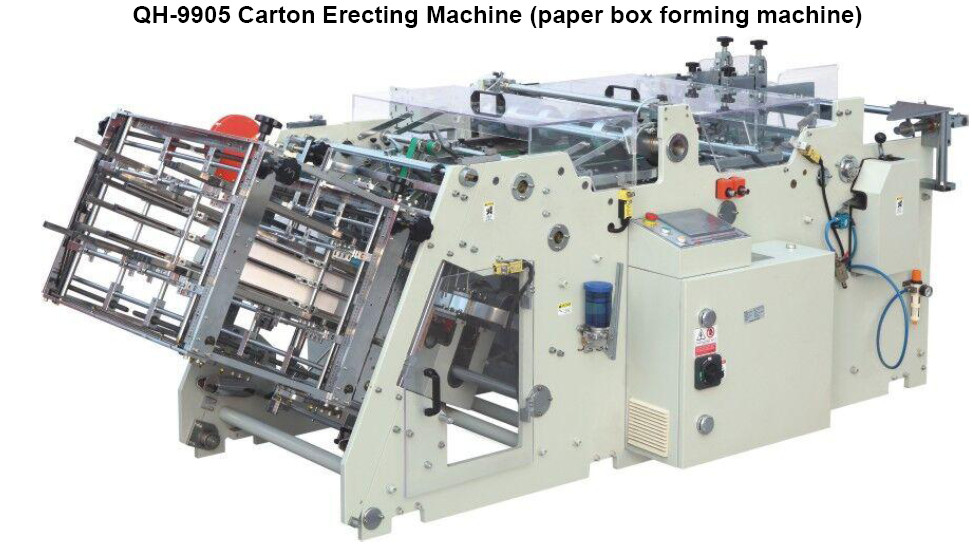

QH-9905 Carton Erecting Machine

Paper box forming machine

Speed: 80~180 box/minute
Max. 180pcs/min; 4-corner box without cover, Boat Shape Box, Boat Tray,
Max. 140pcs/min Fries box (chips box, chips tray):
Max. 120pcs/min Burger box, hot-dog box, Lunch box
Max. 100pcs/min Food pail (DEEP food box):
Welding Method:

Water-Glue System Welding;

(Food grade glue, POLYVINYL-ACETATE EMULSION),

Available Material: 150~600gsm board, paperboard, paper, film coated paper, etc.
Material Thickness: Max. 1.5mm

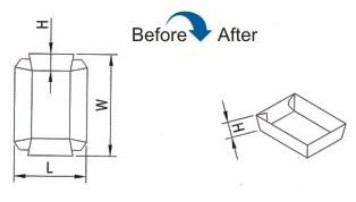

Paper Size:   L=Length: 120~450mm



HS Code: 8441309000
Goods Description Quantity Unit Price
PM-9905 Paper Box Machine (install 1set of user mold) 1 PCS $ 30000
Extra Mold Pine Wooden Material (easy make ) 1 PCS $50~$100

Aluminum Plastic Mold

Plastic ( igus, SFPJ-25-1000-610)

1 PCS $980
Option 1

Servo motor control the forming mold (press mold)

(advanced, more stable than mechanism cam control)

(YASKAWA Brand), 4.4KW

1 PCS $3800
Option 2 Water-glue spray system (work like hot melt glue), 4-glue gun 1 PCS $7500



Model:

PM-9905 Carton Erecting Machine

Paper box forming machine

Speed: 80~180 box/minute
Max. 180pcs/min; 4-corner box without cover, Boat Shape Box, Boat Tray,
Max. 140pcs/min Fries box (chips box, chips tray):
Max. 120pcs/min Burger box, hot-dog box, Lunch box
Max. 100pcs/min Food pail (DEEP food box):
Welding Method:

Water-Glue System Welding;

(Food grade glue, POLYVINYL-ACETATE EMULSION),

Available Material: 150~600gsm board, paperboard, paper, film coated paper, etc.
Material Thickness: Max. 1.5mm



Paper Box Automatic Packing Machine Carton Erecting Machine For Hamburger Box







Paper Box Automatic Packing Machine Carton Erecting Machine For Hamburger Box



Paper Box Automatic Packing Machine Carton Erecting Machine For Hamburger Box



Paper Box Automatic Packing Machine Carton Erecting Machine For Hamburger Box
