Steel Deforming Auto Bender Machine For Die Cutting 220V

Steel Deforming Auto Bender Machine For Die Cutting 220V
Steel Deforming Auto Bender Machine For Die Cutting 220V Steel Deforming Auto Bender Machine For Die Cutting 220V Steel Deforming Auto Bender Machine For Die Cutting 220V Steel Deforming Auto Bender Machine For Die Cutting 220V

Large Image :  Steel Deforming Auto Bender Machine For Die Cutting 220V

Product Details:
Brand Name: diamond
Payment & Shipping Terms:
Minimum Order Quantity: 1 set

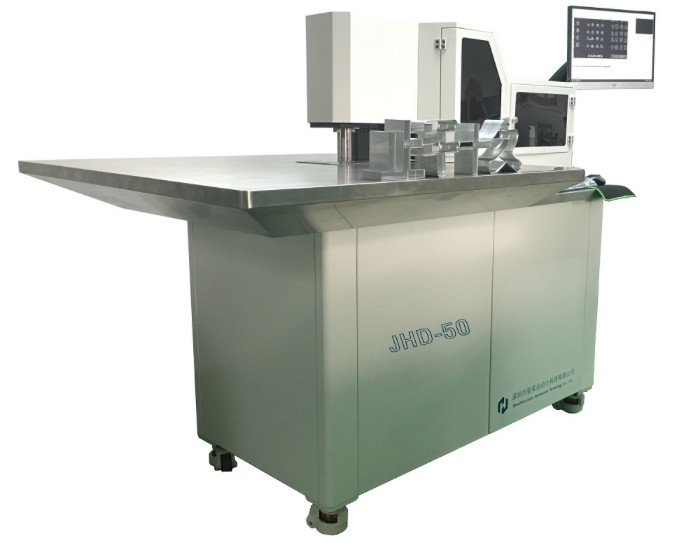

Steel Deforming Auto Bender Machine For Die Cutting 220V

Description
Condition: New Machine Type: Steel Cutting Rule Bending Machine
Material / Metal Processed: Carbon Steel,Stainless Steel,etc,all The Metal Materials Include SS Raw Material: Steel Bar,Sheet/Plate Bending
Automation: Automatic,Automatic Auto Bender Machine For Die Cutting Application: Die Making Die Cutting Bending Machine,Bridges/road/building Construction,aluminum/stainless Steel/Carbon Steel /galvanized Sheet,Iudstry,aluminum And Stainless Steel On Iron Bar Bending Machine
Type: CNC Channel Letter Bending Machine Voltage: 380V/220V
Product Name: Manual Bending Device,channel Letter Making Machine,used Rebar Bending Machine
High Light:

Deforming Machining Auto Bender

,

Die Cutting Cnc Bending Machine

,

Steel Rule Bending Machine 220V

Completely Computer Control Diecutting rule Auto Bending Machine for Dieboard making



Competitive Advantage

1. The price of this machine is competitive which is less than 16000 whcih is suitable to the beginner. The price is also economic for the people who wants to grow the business

2. We have been specialized in Diecutting industry since 2001

3. Our machine is using Korean YDWS style bending to get very small angle, and using Japanese Multi-Bender style servo screw bar feeding rule to ensure accuracy

4. We can provide clients with a complete project of dieboard making equipment such as laser cutter, manual bender, jigsaw machine and consumable products.



Processing Specifications:

Main Parameter
90° min. R 1.5 mm
180°min. R 2.5mm
Max. bend R 1000 mm
Max. bend angle 120°
Min. 90° bend size 3 mm
Min . bend dia. 5mm
Tail min. cut size 0.5mm
Feeding accuracy ±0.05mm
Bending flatness ±0.2 mm
Notching size customized
Design format dxf, ai, plt
Environment Ventilation, dry, below 40C




Description of Auto bending machine:

1,Main specification:

Size: 2580x710x1700mm

Gross Weight: 450Kg

Electricity:380V AC 50Hz (60Hz is available) 1.4kw

Compressor requirement:5Kg/cm2 pressure,10mm pipe diameter

Operating system:Microsoft Windows XP Windows7
Language:English

Supporting Design format:DXF,AI,PIT(AI, plt can be imported directly)

Cutting blade height:8.0-30.0mm

Cutting blade thickness:0.45-0.71mm

Lipping:Using electric motor control (23.8mm to 30mm height) Auto lipping,

software controls lipping height

Notching (Bridge): Using pneumatic way to notch, the size of bridge is customized.



2, List of Components (PM-2016A model):


1.Rule cassette 2 pcs

2.External bending Module 2 pcs

3.Nnotching Module 1 set

4.Toolbox 1 set

5.Computer 1 set

6.Operation software

7.Lipping matrix 1 set

8.Dongle



Machine component:

Panasonic A5 servo, Japan Shimpo reducer, Taiwan HIWIN leading bar, OMRON sensor, Japan SMC Pneumatic, AirTAC magnetic valve



PM 2015 is a multi-functional automatic bending machine, the model with automatic level olecranon, automatic bridge site (anti-card knife with inflatable waste discharge), automatic bending, two-way cut, continuous screw feeding, Korean plug pin bend.

  1. Humanized design, operation easier. Its function; automatic continuous level bridge site, around the level of the olecranon automatic, two-way flat cut, continuous processing mode without manned.

(Advantage: supporting continuous feed screw pins are bent, not only to ensure accuracy while bending more in place, reducing the time to repair a knife)

  1. The portable pole plate design, the tool changer more secure, convenient and quick.

Cut mode, when the election is no need to identify the graphic chart automatically reverse direction can be easily cut, this function effectively solved due to the head-end graphics straight shorter or restricted and can not cut the drawbacks. Intuit do not play a significant role when unattended, saving time and cutting jobs expected to make more convenient machete.

  1. The software can be self-developed free lifetime upgrades, support layer selection, fully supported formats are: PLT, AI, DXF. (Can make changes according to customer special requirements)
  2. Matsushita servo feed fast and precise, using Taiwan silver rod, pneumatic double clip blade slip design, high accuracy. Highlighting the effect for bending flower knife, wavy knife.
  3. Operation is simple, the only Intuit shortcuts custom module, the user can customize the settings shortcut keys, editing and processing in real-time switching interface, full mouse operation also makes the operation easier. Click and marquee graphics support, from the pick to the processing without waiting, while the pick side processing. Processed map support save feature. Knife material suitable height: 8 mm-30 mm, thickness of ordinary type material for knife 0.45 mm-0.71 mm (thickness 1.07 special hydraulic system with optional)Scope: dolls, paper, cartoon, logo, suction Schomburg, stickers and so on. For industry: packaging, printing, footwear, electronics. All wearing parts quality assurance, high strength, toughness, and the implementation of quality assurance. Charge after the warranty period of wearing parts and maintenance costs of the company are the main pipe line transmission of information. Subject to final approval.
  4. 12 months warranty

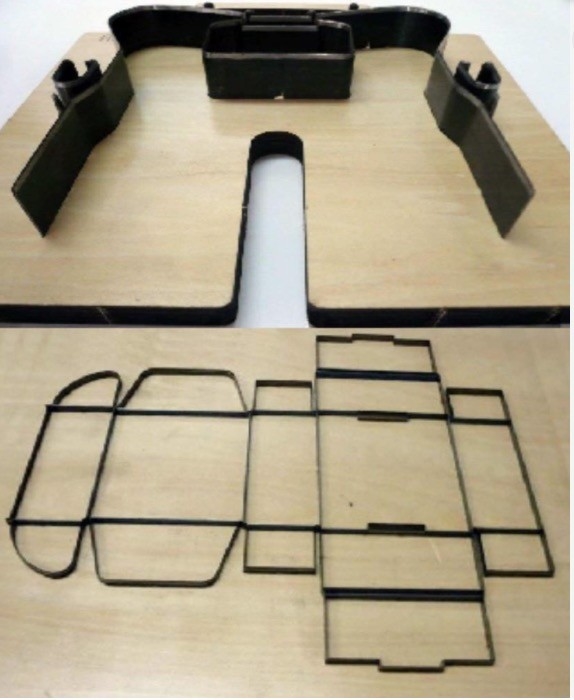

Applications:



This machine can be widely used in diecutting making area such as dieshop, package factory, dieboard maker shop and printing press.

Our service:

We provide 12 months warranty. During warranty, we provide free technical support and free normal spare parts for replacing, except for man-made damage.



We look forward to long term cooperation with customers, we will do our best service and aftersales service for all of our customers.





FAQ:

1.What is your company machine warranty?----one year.

2.Does your machine with CE certificate?----Yes.

3.What is the production time while placing order?----Arounding 7-30 days

4.What is the delivery time?----Within 7-30 days after get the payment.

5.Can you handle shipping for customers?----Yes.(Please provide us your requested seaport and we can check the shipping charge and arrange shipping for your order)

6.What is the minimum quantity for order?----Trial order 1 pc is acceptable, we done business step by step with high quality products and excellent services.

7.Does the packing strong?----Yes, of course! All of our export packing is with strong wooden case, all are confirm to export packing standard.

8.How about after-sales service process?----When your machine has problem, contact your sales and we will solve your problem as soon as possible.

9.Do you have stock product to sell?----Maybe, It depends on which machine you like.

10.Do you inspect the finished products?----Yes, each step of production products will be picked out inspection by QC department before shipping.

11.What’s the payment term?----T/T 30% in advance, the balance paid against the copy of B/L.
