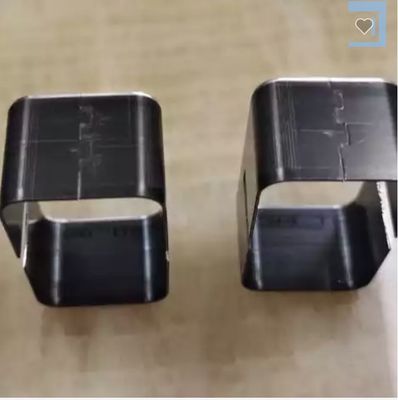

2pt steel cutting rule 23.80x0.71mm cutting blade
Specifications
The advantage of our Die Cutting Steel Rule is good bending effects, stable hardness, accurate height and adequate length. According to customers' needs, we will provide customers with different kinds of Die Cutting Steel Rule . Commonly, there are four types of standard edge which are Centre Bevel, Long Centre Bevel and Long Side Bevel. The hight of our cutting blade ranges from 10mm to 30mm. Except cutting rule, we also prodce creasing rule, perforating rule , cut-creasing rule, zipper rule, punch and ejection rubber.
| Item | Commodity Name | ||
| 1 | Ordinary Cutting Rule 23.80 x 0.71 x 1000mm (42 or 30 degree) edge, body both 38HRC | ||
| 2 | HARDENED Cutting Rule 23.80 x 0.71 x 1000mm, edge 56HRC, body 38HRC | ||
| 3 | Creasing Rule 23.30 x 0.71 x 1000mm Height can be decided by the clients | ||
| 4 | Ordinary High Speed Cutting rule 23.80 x 0.71 x 1000mm Bi-blade, edge and body both 38HRC | ||
| 5 | HARDENED High-Speed Cutting Rule 23.80 x 0.71 x 1000mm Bi-blade, edge 56HRC, body 38HRC | ||
| 6 | Perforating Rule 23.80 x 0.71 x 1000mm 4, 5, 6, 7, 8, 9,10,12,16 teeth per inch (client can decide teeth length and space length) | ||
| 7 | Ordinary Cutting Rule 23.80 x 3pt x 1000mm (42 or 30 degree) edge, body both 38HRC | ||
| 8 | HARDENED Cutting Rule 23.80 x 3pt x 1000mm, edge 56HRC, body 38HRC | ||
| 9 | Ordinary High Speed Cutting rule 23.80 x 3pt x 1000mm Bi-blade, edge and body both 38HRC | ||
| 10 | HARDENED High-Speed Cutting Rule 23.80 x 3PT x 1000mm Bi-blade, edge 56HRC, body 38HRC | ||
| 11 | Creasing Rule 23.00 x 3pt x 1000mm | ||
| 12 | Label Cutting Rule 8 x 0.45 x 1000mm | ||
| 13 | Wave (Corrugated) Rule 23.80 x 0.71 x 1000mm 6, 8, 10, 12 teeth per inch | ||
| 14 | Glue Flap Perforating Rule 23.80 x 0.71 x 1000mm | ||
| 15 | Compressed Viscose Sponge Original size: 0.65x3x11.8cm, De-compressed size: 3.3x8x13cm | ||
| 16 | Ejection rubber | ||
| 17 | 24 sheets per carton, each is 300 X 380 X 8 MM, cut into 42 lines 20 sheets per carton, each is 300 X 380 X12MM, cut into 42 lines | ||
| 18 | Saw for plunger die 153 x 2.5 x 0.71 (16 x 5 teeth) | ||
| 19 | Hardened Cutting Rule 23.80x4ptx1000mm | ||
| 20 | Creasing Rule 22.80 x 4pt x 1000mm | ||
| 21 | perforating rule 23.80x3ptx1000mm | ||
| 22 | Zipper rule | ||
| 23 | HARDENED Cutting Rule 30x0.71x1000mm, | ||
| 24 | HARDENED Cutting Rule 30x1.05x1000mm, | ||
| 25 | Creasing rule 22.80mmx1.5mmx1000mm | ||
| 26 | Creasing rule 22.80x6pt(2mm)x1000mm |
||
Manufacturing Technique
Diamond is a completely integrated Die Cutting Steel Rule producer. We have our own quality control team and have strict control from purchasing raw material to finished product. which will guarantee that the quality of our product is reliable and stable.
Current Market
Diamond is one of the earliest Die Cutting Steel Rule factories in China. Our products has been widely accepted in diecut area for decades in the national market. Every year, we will invest 10% of total revenue to improve the product line in order to meet customers needs. Since 2005, we have been exporting our cutting blade to other countries and areas which include India, Middle East, Brazil, Chile, Argentina and some countries in Euro. Clients are usually very satisified with our cutting blades.
FAQ:
How long to deliver the prodcut?
Everyday, we can prduce around 60000 meters die cutting steel rules, it will depend on your order. Usually, Within 15 days, we can arrange the shipment.
What is the payment terms?
30% TT as the deposit, and all balance before the shipment.
How about the package?
We will use wooden case (plywood) to pack die cutting steel rule.
