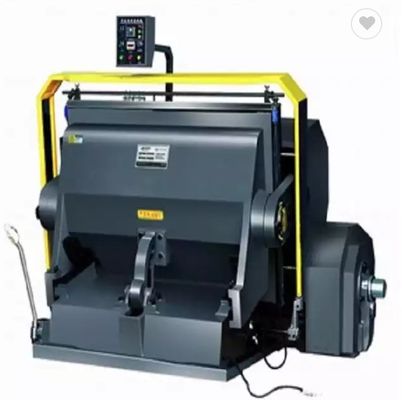

380V Automatic Die Cutting Machine For Paper Consumables

380V Automatic Die Cutting Machine For Paper Consumables

Paper Die Cutting Machine 380V

Consumables Die Cutter

12kw Automatic Die Cutting Machine

Brand Name:

PM

Certification:

CE

Contact Us

Request A Quote
Product Details
Place Of Origin:
Zhejiang, China
Model Number:
TL-780
Condition:
New
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
380V
Power:
12kw
Weight:
5500
Dimension:
3700x1910x2200
Payment & Shipping Terms
Minimum Order Quantity
One set
Price
US $ 8,000 - 25,000 / Set
Packaging Details
Wooden case
Delivery Time
30 days
Supply Ability
20 Sets per Month
Product Description

Automatic Foil Stamping and Die Cutting Machine





Description:



1. We design TL780 automatic foil stamping and die cutting machines. Their functions include hot stamping, die cutting, convex pressing and creasing. It can also carry out automatic feeding, hot stamping and paper collection, etc.



2. This machine consists of main motor, hot stamping mechanism, auto feeder, and electric equipment. The motor drives the shaft in an up and down motion, and the pressure can be conveniently adjusted to carry out the stamping or die cutting process.



3. Micro processor is used to control the entire machine. The electrical parts of our machine include main feeder/collect control, motor control, foil feeder control, etc.



4. The machine is equipped with an automatic lubrication system.



Specificaitons:



Model

TL780

Max. sheet size(mm)

780×560

Min. sheet size(mm)

280×220

Max. feeding pile height (mm)

800

Max. collect pile height (mm)

160

Max. working pressure(N)

110×104

Power rating(KW)

12

Air pump displacement(m3/h)

40

Paper range(g/m2)

100 -2000

Max. mechanical speed (s/h)

2500s/h paper>150g/m2

1500s/h paper<150g/m2

Machine weight(kg)

5500

Machine noise(db)

<81

Heating capacity(KW)

8

Overall machine dimensions(mm)

3700×1910×2200

380V Automatic Die Cutting Machine For Paper Consumables 0
