Double Sided Tape Applicator Machine A4 Paper Adhesive

Double Sided Tape Applicator Machine A4 Paper Adhesive

1500mm double sided tape applicator machine

A4 double sided tape applicator machine

1650mm adhesive tape application machines

Model Number:


Contact Us

Request A Quote
Product Details
Applicable Industries::
Manufacturing Plant, Machinery Repair Shops, Restaurant, Food Shop, Printing Shops, Construction Works , Energy & Mining
200 KG, 200 Kg
Product Materials::
Envelope ,A4 Paper ,carton Box ,PVC, Floor Board
Product Thickness::
100 G/m2
Tape Thickness::
0.1 Mm - 2 Mm
Warranty Of Core Components::
1 Year
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Delivery Time
Payment Terms
L/C, T/T, Western Union
Product Description
Product Description
Application: The machine often to be used for poster, it can tape four tapes on the corner of poster. And then people can adhere the poster to wall of market.
Main performance and features
1. Used for applying the double sided tape ,sealing tape and PVC tape on the envelope ,A4 paper ,carton box ,PVC
material, decoration material and so on .
2. It is widely used in building materials, packaging, printing and many other industries
3. Instead of manual operation and saving the labor force.
4. It is light and flexible, convenient to move, PLC programming, touching screen, operation simple.
5. With an adjustable feeding table and ability to load sheets up to 70x100cm it is the perfect machine for small scale work.


TMM 1000
Product width
25mm (1") upto 1000mm (39")
Product materials
Envelope ,A4 paper ,carton box ,PVC, floor board,and the others
Product Thickness (Min paper grammage)
100 g/m2 (for paper)
Product Thickness (The other material)
0.1mm upto 20mm (0.8") (Such as floor board ,Corrugated board )
Applicator Heads standard/max
1 upto 4 Heads
Max number of spots
4 spots (8 spots can be customized)
Min spot length/
Min tape strip length
25 mm (1")
Min distance between spots/
Min distance between tape strip and the next
25 mm (1")
Min horizontal distance between tape strips
76 mm (3") (center to center)
Tape thickness
0.1 mm - 2 mm
Tape width (max)
5mm(0.2") upto 40mm(1.6")
Internal tape roll diameter
76 mm (3")
Max external tape roll diamete
400 mm (15.75")
English, Italian, German, French, Spanish,Russia
30m/min (100 ft/min)
Electricity needs
220V 50HZ /110V 50HZ
Compressor air needs
6 bar
200 kg
1500x2100x1650mm (L x W x H)
12 Months

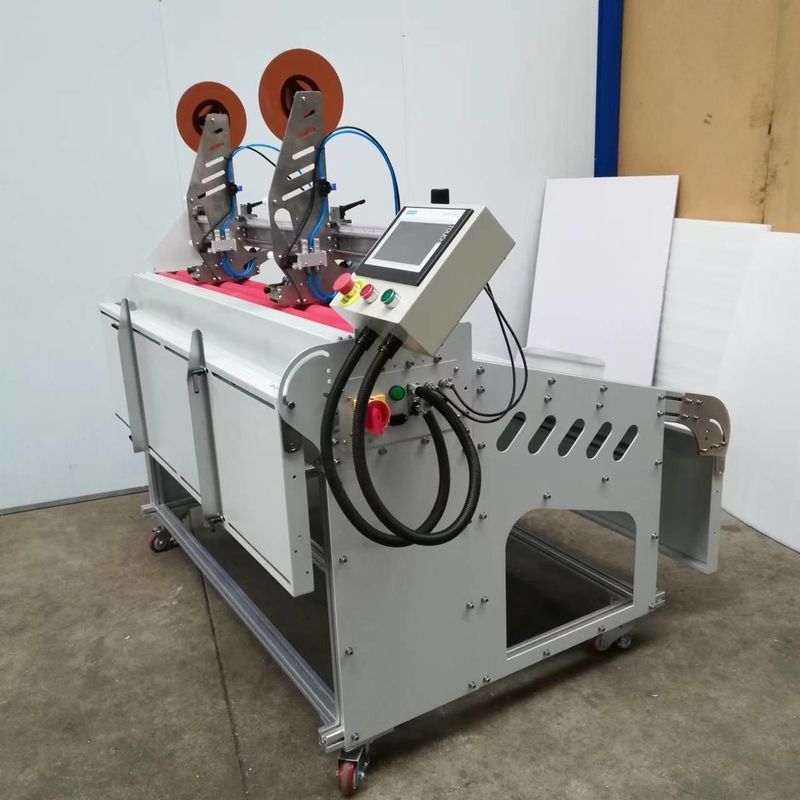

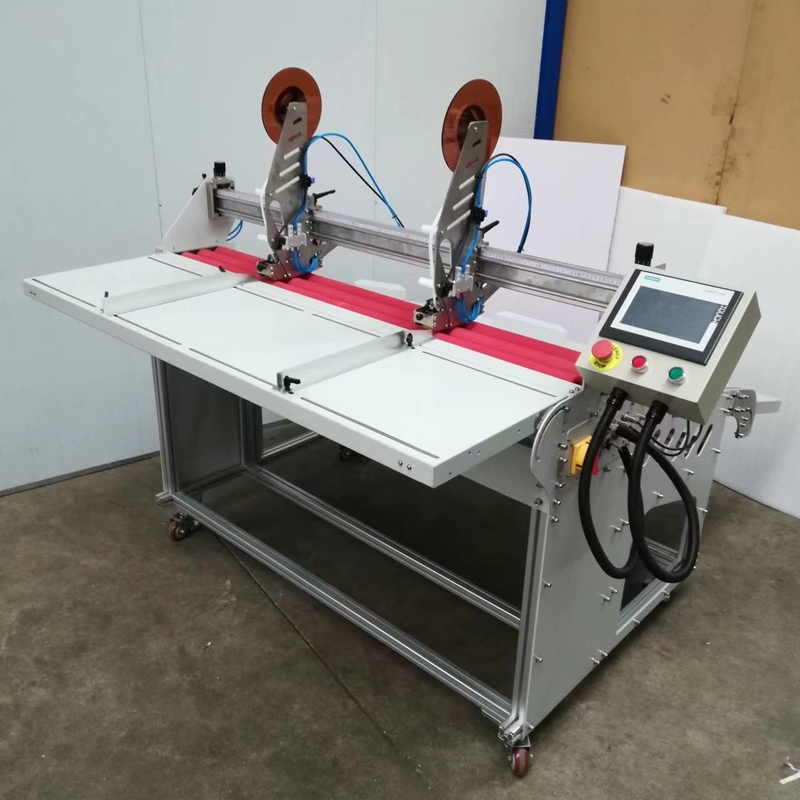

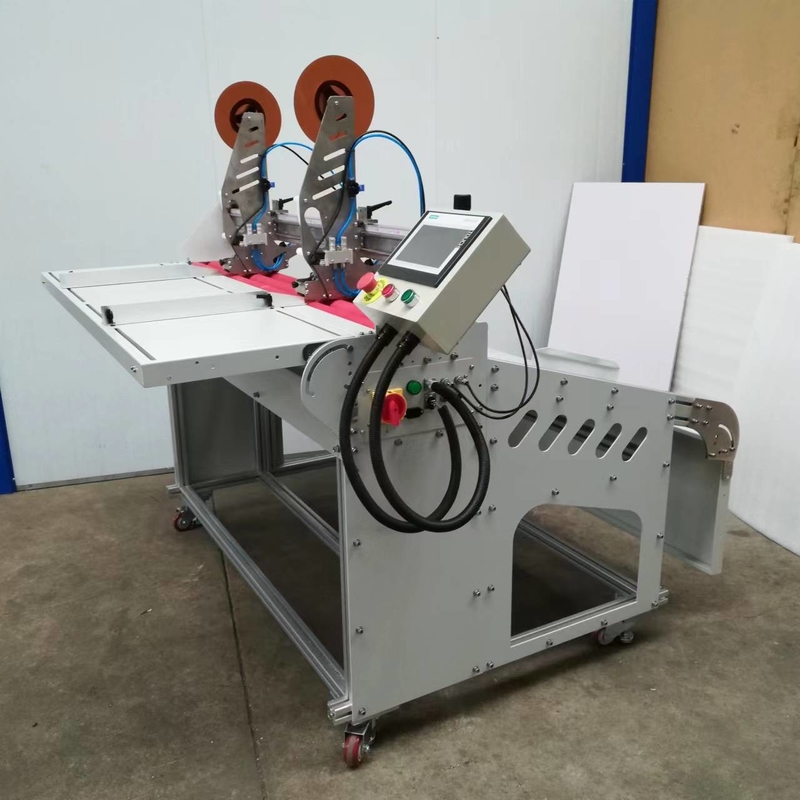

 Double Sided Tape Applicator Machine A4 Paper Adhesive 0Double Sided Tape Applicator Machine A4 Paper Adhesive 1Double Sided Tape Applicator Machine A4 Paper Adhesive 2

Company Profile

Shanghai ProMega Trading Co., Ltd. is a professional manufacturer producing qualified products and equipment in printing and packaging industry. Our company was established in 1998. Our main products are Auto Bender, Laser cutter, Diecutting machine, Hot stamping machine, Laminator, Dieboard making tools and consumables in Packaging and Printing industry. With our Auto Bender and Laser cutter, manual tools, users can set up or upgrade dieshop easily and raise efficiency greatly. Our high quality cutting rules feature good hardness and perfect flexibility and we also have various kinds of creasing rules, perforating rules, wave rules, cut-crease rules, zipper rules and glue flap rules. We also specialize in doctor blades, creasing matrix, jigsaw blades and different kinds of punches, click die steel, plywood as dieboards, drawing films, ejection rubber and equipment related in die cutting industry. We are always ready to provide complete products for cutting products making, printing and packaging.


1. who are we?
We are based in Shanghai, China, start from 2008,sell to South America(25.00%),South Asia(20.00%),Mid East(15.00%),Eastern Europe(10.00%),Southeast Asia(9.00%),North America(5.00%),Africa(5.00%),Central America(5.00%),Southern Europe(5.00%),Oceania(00.00%). There are total about 5-10 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Cutting rule,Auto bender,Laser cutting machine

4. why should you buy from us not from other suppliers?
Our company is in the printing and packaging industry since 2008, we provide machines and consumables mainly in the after printing industry, especially diecutting, paper cutting, box folding and pasting, laser cutting and CNC engraving.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,CPT,DDP,DDU,Express Delivery;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,French
Packing & Delivery
Double Sided Tape Applicator Machine A4 Paper Adhesive 3
