Product Details:
Place of Origin: china
Model Number: TMB 500
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: plywood case
Delivery Time: 15 days
Payment Terms: L/C, T/T

PaperTape Applicator Machine Adhesive Tape Machine With Two Applicators

Description
Warranty:: 1 Year Applicable Industries:: Building Material Shops, Manufacturing Plant, Food
Core Components:: PLC, Motor Automatic Grade:: Semi-automatic
Voltage:: 220V 50HZ/110V 50HZ Weight:: 75kg
Driven Type:: Electric
High Light:

PLC Tape applicator machine

,

Corrugated board Tape applicator machine

,

75kg tape applying machine

Products Description

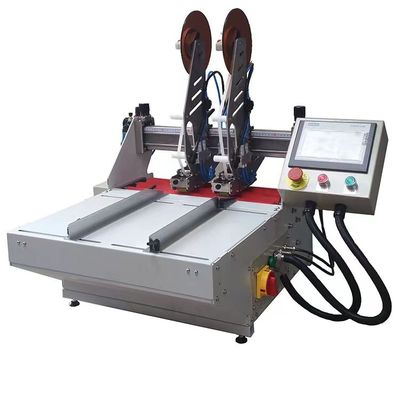

TMB 500 Double Sided Tape Application Machine
TMB 500 Semi-Automatic double sided tape applicator machine will reduce the time spends handing products which are folders,boxes, displays, stands etc.
The machine can apply the double sided tape to all the material which is with good hardness and flatness similar as
Paper,Cardboard, Corrugated board, Wooden, PVC and the others. The thinnest paper 100 g/m² upto 20 mm thickness wooden.
The machine has a PLC touch screen and PLC programs that enables you to program and saves a multitude of tasks related to the handling of different products.
The tape applicator head adopts magnet valve and air cylinder working. The tape applicator head quantity can be installed 1-2 as optional.

Application: The machine often to be used for poster, it can tape four tapes on the corner of poster. And then people can adhere the poster to wall of market.
Main performance and features:
1,Used for applying the double sided tape ,sealing tape and PVC tape on the envelope ,A4 paper ,carton box ,PVC material
,decoration material and so on .
2,It is widely used in building materials, packaging, printing and many other industries
3,Instead of manual operation,and saving the labor force.
4,It is light and flexible,convenient to move, PLC programming, touching screen, operation simple.
5,With an adjustable feeding table and ability to load sheets up to 70x100cm it is the perfect machine for small scale work.
Product Paramenters
Model
TMB 500
Product width
25mm (1") upto 500mm (20")
Product materials
Envelope ,A4 paper ,carton box ,PVC, floor board,and the others
Product Thickness (Min paper grammage)
100 g/m2 (for paper)
Product Thickness (The other material)
0.1mm upto 20mm (0.8")
(Such as floor board ,Corrugated board )
Applicator Heads standard/max
1 upto 3 Heads
Max number of spots
4 spots (8 spots can be customized)
Min spot length/
Min tape strip length
25 mm (1")
Min distance between spots/
Min distance between tape strip and the next
25 mm (1")
Min horizontal distance between tape strips
76 mm (3") (center to center)
Tape thickness
0.1 mm - 2 mm
Tape width (max)
5mm(0.2") upto 30mm(1.2")
Internal tape roll diameter
76 mm (3")
Max external tape roll diamete
400 mm (15.75")
Languages
English, Italian, German, French, Spanish,Russia
Speed
30m/min (100 ft/min)
Electricity needs
220V 50HZ /110V 50HZ
Compressor air needs
6 bar
Weight
65 kg
Dimension
800x500x680mm (L x W x H)
Warranty
12 Months



Key Parts

PaperTape Applicator Machine Adhesive Tape Machine With Two Applicators 0

Product packaging

PaperTape Applicator Machine Adhesive Tape Machine With Two Applicators 1
