Name: PVC Board Automatic Packing Machine Adhesive Tape Applicator Machine
Brand: PVC Board Automatic Packing Machine Adhesive Tape Applicator Machine
SKU: TMP 520
Price: 1 USD
Availability: InStock
Rating: 4.5 (180 reviews)

Home > products > Automatic Packing Machine >

PVC Board Automatic Packing Machine Adhesive Tape Applicator Machine

PVC board Automatic Packing Machine

0.25KW Automatic Packing Machine

PLC adhesive Tape applicator machine

Place of Origin:

CHINA

Model Number:

TMP 520

Request A Quote

PVC Board Automatic Packing Machine Adhesive Tape Applicator Machine

Product Details

Warranty::

1 Year

Applicable Industries::

Building Material Shops, Manufacturing Plant, Food

Core Components::

PLC, Motor

Application::

Food, Machinery & Hardware, Textiles

Packaging Material::

Wood

Driven Type::

Electric

Power::

0.25KW

Automatic Grade::

Semi-automatic

Voltage::

220V 50HZ/110V 50HZ

Payment & Shipping Terms

Minimum Order Quantity

1 SET

Packaging Details

WOODEN CASE

Delivery Time

10 DAYS

Payment Terms

L/C, T/T, Western Union, MoneyGram

25L Automatic Printing Ink Mixer For Offset Flexo Ink Proofer

Get Best Price

Video

Automatic Plotter Cutting Machine For Corrugated Paper Plastic Cardboard

Get Best Price

Video

Automatic Carton Box Sample Maker Die Cutting Machine 220V 50HZ

Get Best Price

Cardboard Grey Paper Board PVC Plotter Cutting Machine For Corrugated Paper

Get Best Price

86-21-20232967

pm@diamond-prin.cn

86-21-51564107

Contact Now

Product Description

Products Description

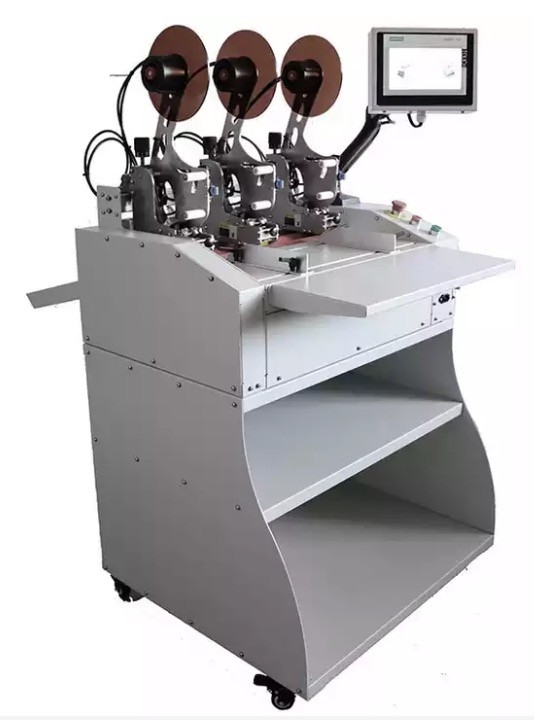

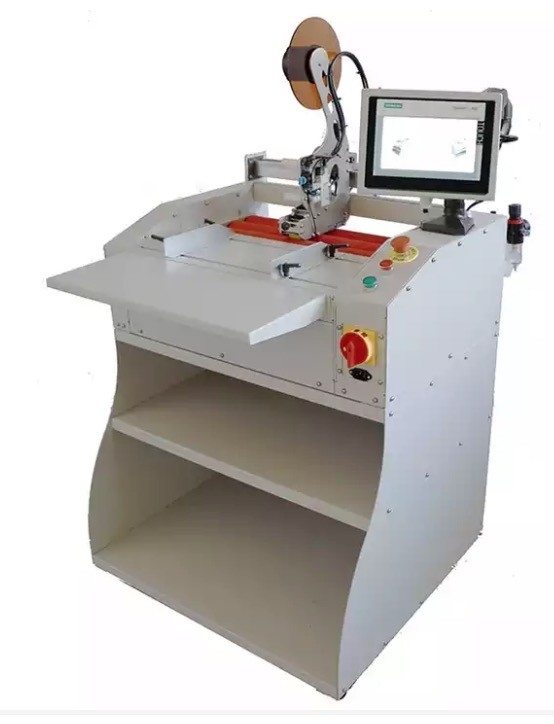

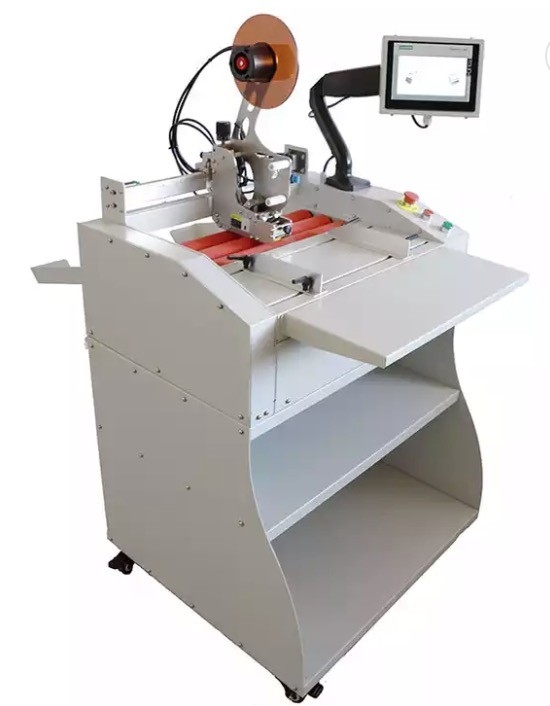

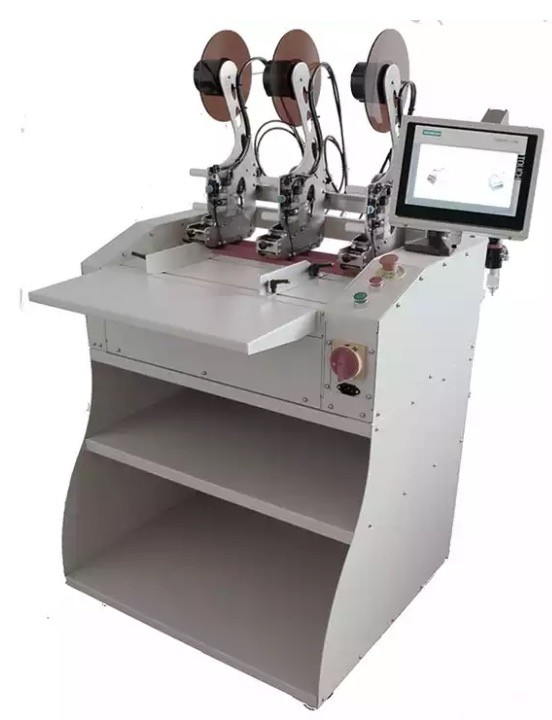

TMP 520 Double Sided Tape Application Machine

TMP 520 Semi-Automatic double sided tape applicator machine will reduce the time spends handing products which are folders,boxes, displays, stands etc.The machine can apply the double sided tape to all the material which is with good hardness and flatness similar as

Paper,Cardboard, Corrugated board, Wooden, PVC and the others. The thinnest paper 100 g/m² upto 20 mm thickness wooden.The machine has a PLC touch screen and PLC programs that enables you to program and saves a multitude of tasks related to the handling of different products.

The tape applicator head adopts magnet valve and air cylinder working. The tape applicator head quantity can be installed 1-2 as optional.

Application: The machine often to be used for poster, it can tape four tapes on the corner of poster. And then people can adhere the poster to wall of market.

Main performance and features:

1,Used for applying the double sided tape ,sealing tape and PVC tape on the envelope ,A4 paper ,carton box ,PVC material

,decoration material and so on .

2,It is widely used in building materials, packaging, printing and many other industries

3,Instead of manual operation,and saving the labor force.

4,It is light and flexible,convenient to move, PLC programming, touching screen, operation simple.

5,With an adjustable feeding table and ability to load sheets up to 70x100cm it is the perfect machine for small scale work.

Product Paramenters

Model	TMP 520
Product width	25mm (1") upto 520mm (20")
Product materials	Envelope ,A4 paper ,carton box ,PVC, floor board,and the others
Product Thickness (Min paper grammage)	100 g/m2 (for paper)
Product Thickness (The other material)	0.1mm upto 20mm (0.8") (Such as floor board ,Corrugated board )
Applicator Heads standard/max	1 upto 3 Heads
Max number of spots	4 spots (8 spots can be customized)
Min spot length/ Min tape strip length	25 mm (1")
Min distance between spots/ Min distance between tape strip and the next	25 mm (1")
Min horizontal distance between tape strips	76 mm (3") (center to center)
Tape thickness	0.1 mm - 2 mm
Tape width (max)	5mm(0.2") upto 30mm(1.2")
Internal tape roll diameter	76 mm (3")
Max external tape roll diamete	400 mm (15.75")
Languages	English, Italian, German, French, Spanish,Russia
Speed	30m/min (100 ft/min)
Electricity needs	220V 50HZ /110V 50HZ
Compressor air needs	6 bar
Weight	95 kg
Dimension	800 x 780 x 1380 mm (L x W x H)
Warranty	12 Months

Key parts:

Details Images

Product packaging

Company Profile

Shanghai ProMega Trading Co., Ltd. is a professional manufacturer producing qualified products and equipment in printing and packaging industry. Our company was established in 1998. Our main products are Auto Bender, Laser cutter, Diecutting machine, Hot stamping machine, Laminator, Dieboard making tools and consumables in Packaging and Printing industry. With our Auto Bender and Laser cutter, manual tools, users can set up or upgrade dieshop easily and raise efficiency greatly. Our high quality cutting rules feature good hardness and perfect flexibility and we also have various kinds of creasing rules, perforating rules, wave rules, cut-crease rules, zipper rules and glue flap rules. We also specialize in doctor blades, creasing matrix, jigsaw blades and different kinds of punches, click die steel, plywood as dieboards, drawing films, ejection rubber and equipment related in die cutting industry. We are always ready to provide complete products for cutting products making, printing and packaging.
