Food Automatic Packing Machine Double Sided Adhesive Machine

Food Automatic Packing Machine Double Sided Adhesive Machine

PLC Food Automatic Packing Machine

100g/m2 Automatic Packing Machine

0.25KW double sided adhesive machine

Place of Origin:


Model Number:

TMP 520

Contact Us

Request A Quote
Product Details
1 Year
Applicable Industries::
Building Material Shops, Manufacturing Plant, Food
Core Components::
PLC, Motor
Food, Machinery & Hardware, Textiles
Packaging Material::
Driven Type::
Automatic Grade::
220V 50HZ/110V 50HZ
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Delivery Time
Payment Terms
L/C, T/T, Western Union, MoneyGram
Product Description
Products Description


TMP 520 Double Sided Tape Application Machine
TMP 520 Semi-Automatic double sided tape applicator machine will reduce the time spends handing products which are folders,boxes, displays, stands etc.
The machine can apply the double sided tape to all the material which is with good hardness and flatness similar as
Paper,Cardboard, Corrugated board, Wooden, PVC and the others. The thinnest paper 100 g/m² upto 20 mm thickness wooden.
The machine has a PLC touch screen and PLC programs that enables you to program and saves a multitude of tasks related to the handling of different products.
The tape applicator head adopts magnet valve and air cylinder working. The tape applicator head quantity can be installed 1-2 as optional.

Application: The machine often to be used for poster, it can tape four tapes on the corner of poster. And then people can adhere the poster to wall of market.
Main performance and features:
1,Used for applying the double sided tape ,sealing tape and PVC tape on the envelope ,A4 paper ,carton box ,PVC material
,decoration material and so on .
2,It is widely used in building materials, packaging, printing and many other industries
3,Instead of manual operation,and saving the labor force.
4,It is light and flexible,convenient to move, PLC programming, touching screen, operation simple.
5,With an adjustable feeding table and ability to load sheets up to 70x100cm it is the perfect machine for small scale work.
Product Paramenters
TMP 520
Product width
25mm (1") upto 520mm (20")
Product materials
Envelope ,A4 paper ,carton box ,PVC, floor board,and the others
Product Thickness (Min paper grammage)
100 g/m2 (for paper)
Product Thickness (The other material)
0.1mm upto 20mm (0.8")
(Such as floor board ,Corrugated board )
Applicator Heads standard/max
1 upto 3 Heads
Max number of spots
4 spots (8 spots can be customized)
Min spot length/
Min tape strip length
25 mm (1")
Min distance between spots/
Min distance between tape strip and the next
25 mm (1")
Min horizontal distance between tape strips
76 mm (3") (center to center)
Tape thickness
0.1 mm - 2 mm
Tape width (max)
5mm(0.2") upto 30mm(1.2")
Internal tape roll diameter
76 mm (3")
Max external tape roll diamete
400 mm (15.75")
English, Italian, German, French, Spanish,Russia
30m/min (100 ft/min)
Electricity needs
220V 50HZ /110V 50HZ
Compressor air needs
6 bar
95 kg
800 x 780 x 1380 mm (L x W x H)
12 Months
Key parts:

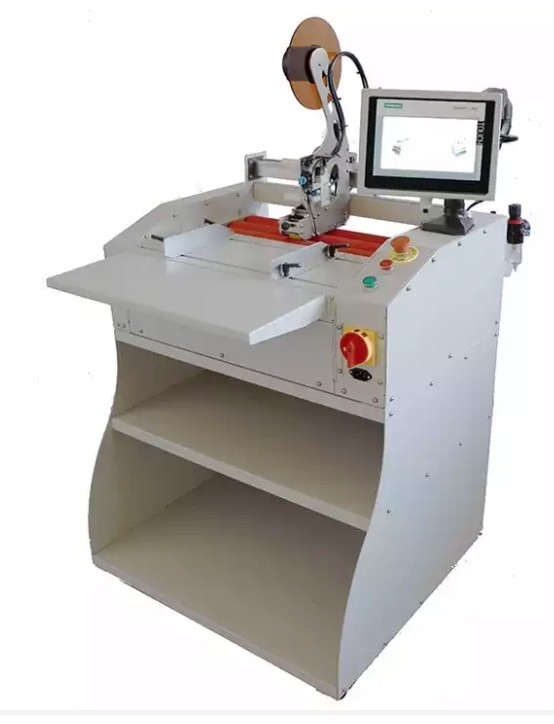

Food Automatic Packing Machine Double Sided Adhesive Machine 0
Details Images

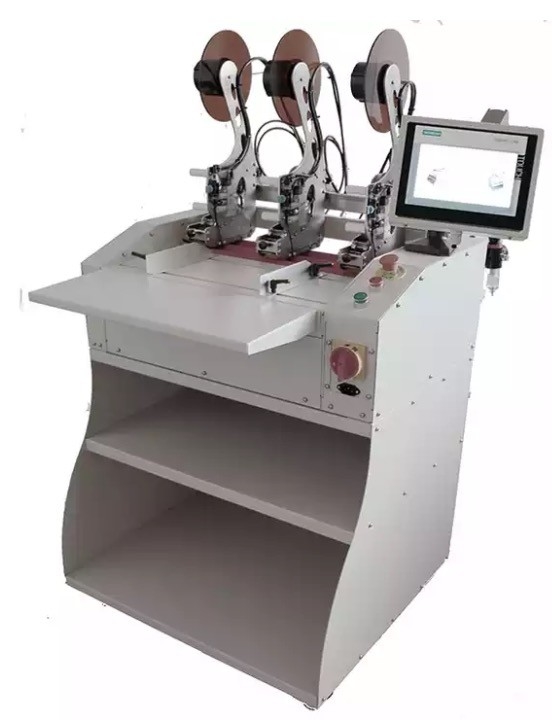

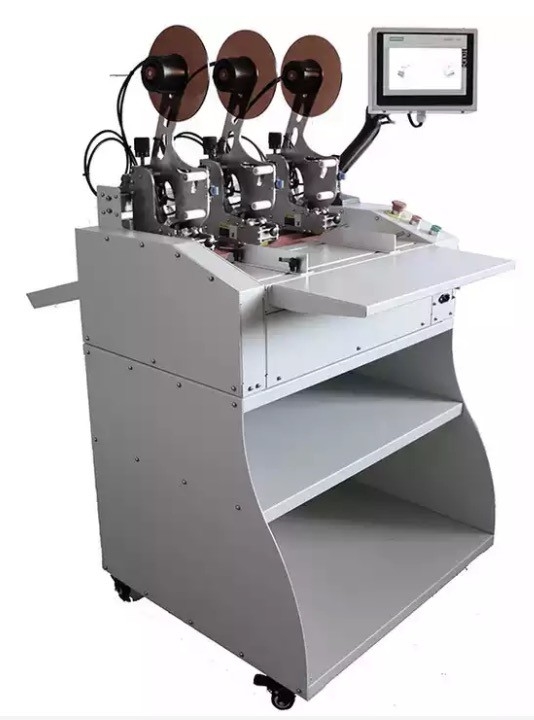

Food Automatic Packing Machine Double Sided Adhesive Machine 1Food Automatic Packing Machine Double Sided Adhesive Machine 2
Product packaging
Food Automatic Packing Machine Double Sided Adhesive Machine 3
