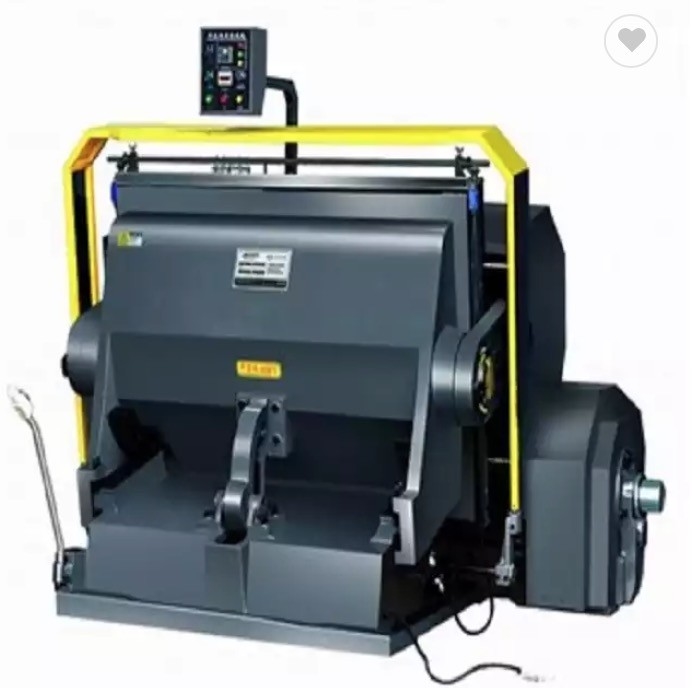

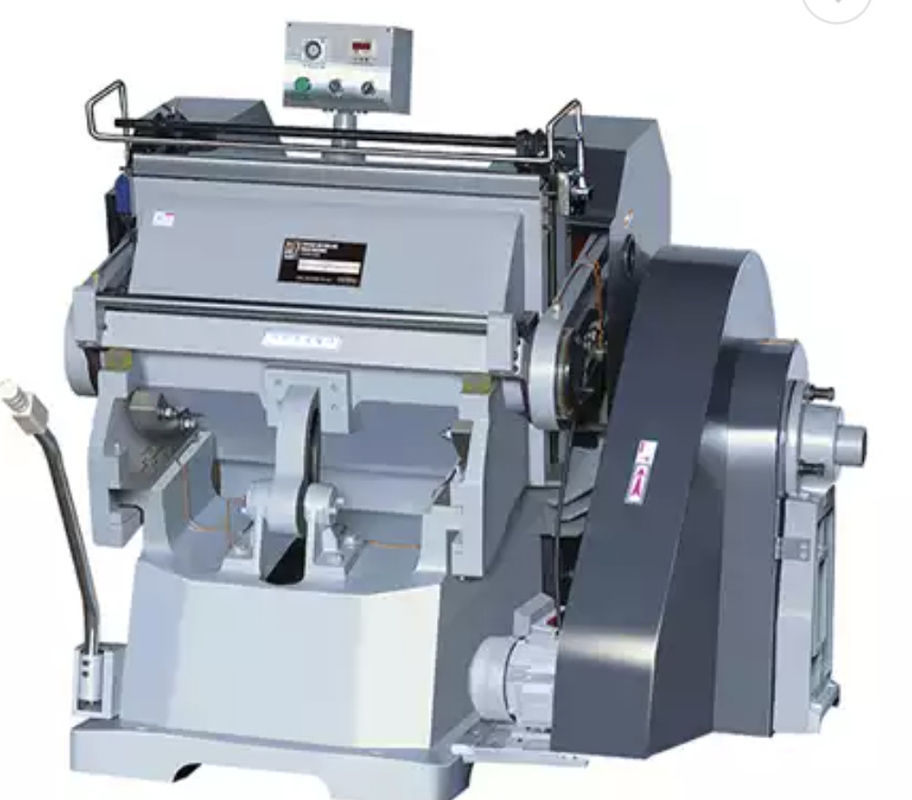

Semi Automatic Die Cutting Machine Mechanical Driven Type

Semi Automatic Die Cutting Machine Mechanical Driven Type
Semi Automatic Die Cutting Machine Mechanical Driven Type Semi Automatic Die Cutting Machine Mechanical Driven Type

Large Image :  Semi Automatic Die Cutting Machine Mechanical Driven Type

Product Details:
Place of Origin: Shanghai, China
Brand Name: PM
Certification: CE
Model Number: 2015
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: US $ 5,000 - 29,990 / Set
Packaging Details: Wooden case
Delivery Time: 20 days
Supply Ability: 30 Sets per Month

Semi Automatic Die Cutting Machine Mechanical Driven Type

Description
Condition: New Automatic Grade: Semi-Automatic
Driven Type: Mechanical Voltage: 380V
Place Of Origin: Shanghai, China
High Light:

380V semi automatic die cutting machine

,

Flywheel semi automatic die cutting machine

,

2.2KW die cutting machine

Features:



1.Sliding bearings are made of high quality alloy cooper, thus to enhance the effect of anti-friction and vibration reducing.



2.Flywheel with big moment of force and big pressure.



3.High strength due to whole iron casting by using high quality material for machine body.



Main Specifications:





Model

Inner Chase Size

Max. Rule Length

Speed

Motor Power

Machine Weight

Overall Dimension

ML-750

750×520mm

15m

28±2

2.2KW

2000kg

1540×650×1650mm

ML-900

930×660mm

26m

25±2

4KW

3500kg

1960×1760×1720mm

ML-1100

1100×800mm

30

23±2

5.5KW

5000kg

2080×1950×1900mm

ML-1200

1200×820mm

32

23±2

5.5KW

5500kg

2080×2050×1900mm

ML-1300

1300×920mm

38

16±2

7.5KW

6500kg

2050×2350×1900mm

ML-1400

1400×1000mm

38

16±2

7.5KW

7000kg

2050×2450×1900mm

ML-1500

1500×1060mm

40

16±2

11KW

8000kg

2050×2540×1900mm

ML-1600

1600×1250 mm

43

14±2

11KW

12000 kg

2300×2700×2400mm

ML-1800

1800×1300 mm

50

14±2

11KW

14200 kg

2300×2900×2400mm

ML-2000

2000×1400 mm

58

14±2

15KW

16500 kg

3500×2200×2400mm

ML-2200

2200×1400 mm

70

13±2

15KW

18000 kg

3380×2400×2580mm

ML-2500

2500×1600mm

80

11±3

22KW

22000kg

3680 ×2400×2580mm

ML-2800

2800×1600mm

85

11±3

30KW

24000 kg

4000 ×2400×2580 mm

ML-3000

3000×1600mm

90

11±3

30KW

26000 kg

4200 ×2400×2580 mm







Packaging & Shipping

Machine packed in wooden case , standard export packing

Machine shipped within 20 days after receiving payment



Our Services

1.  The whole machine has full 1 year warrantey, we will send the parts for replacing free of charge during warranty.

2.  We will provide lifetime service online, you can get technical support within 24 hours by Email/ Skype/ Remote assistance etx.

3. Proffesionl person reply your questions.
