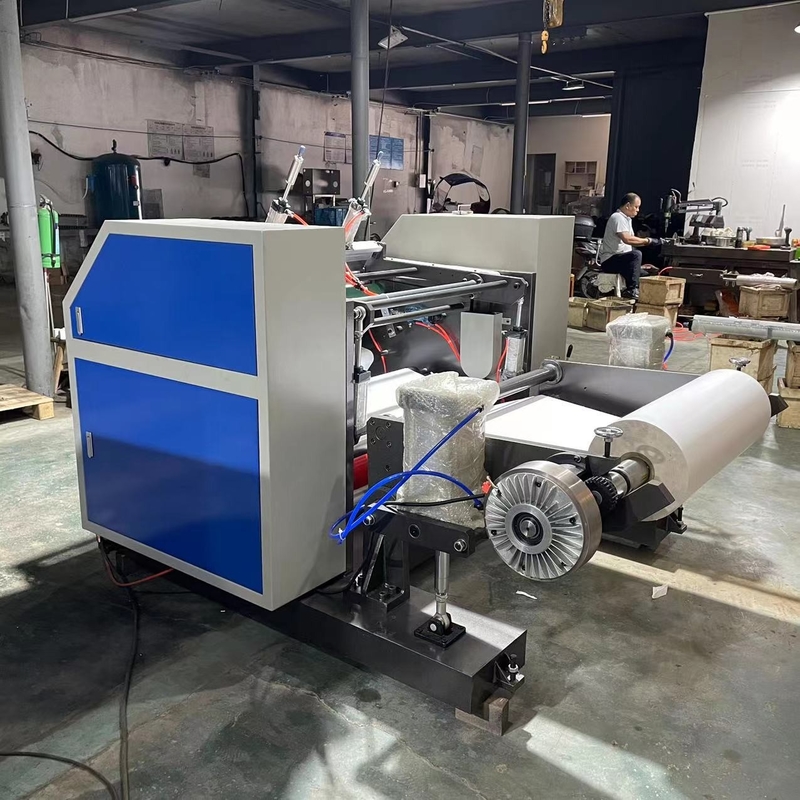

900 type fully automatic thermal paper slitting machine
Main technical parameter
1. The maximum roll width is 865mm
2. The maximum unwinding diameter is 1000mm
3. The maximum winding diameter is 150mm
4. Slitting width >20mm
5. Working speed: 180m/min
6. Winding core shaft 8mm
7. Orbital 1 pairs
8. Specifications of tubular mandrel: 12,15,17 each 2pcs
9. flattening device 1 set
10. traction device 1 set
11. Power: 3 ph / 380 v / 50 hz / 2.2 KW
12. The size 1800 * 1880 * 1450 mm
13. Weight 1800 kg
14. paper supply shaft 1 pc/layer (optional: air expansion shaft)
15. automatic marking device 1 set
16. automatic tension (sino-us joint venture)
17. fault alarm device for touch screen 1 set
18. automatic counting device 1 set
19. Exhaust device: air pump air supply
20. All cast iron wall board integral frame
21. Partial metal baking paint for the whole machine
Use and structure

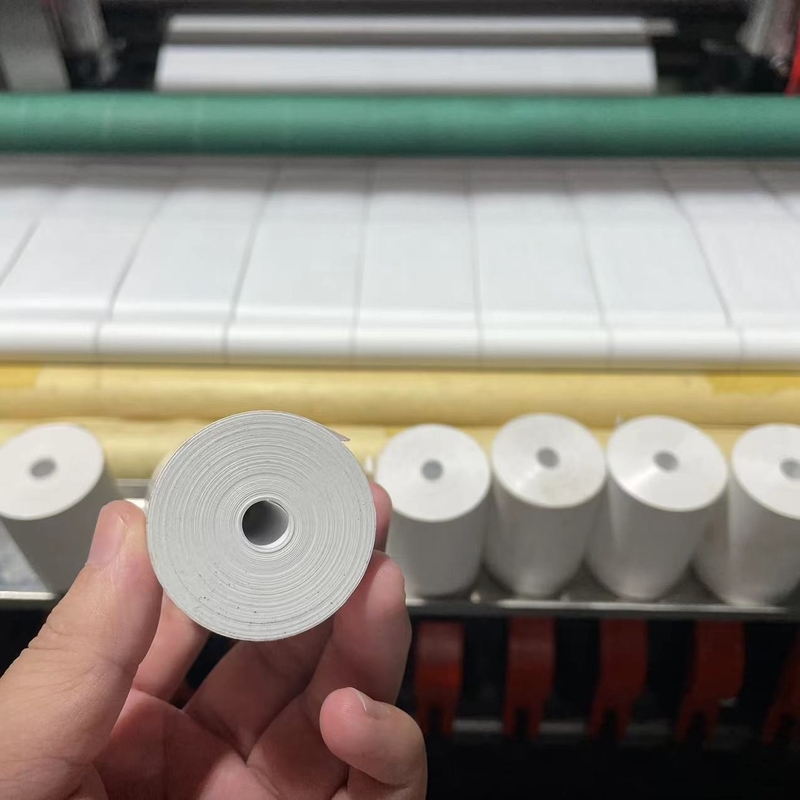

The machine is mainly used to cut various specifications of fax paper, cash register paper, computer bills, medical records paper, POS printing paper, ATM paper, film and adhesive trademark paper.
See the following figure for the main structure:
Function
Adopt the surface with axis winding mode; Automatic origami, roll insertion;
The electric appliance adopts MIKOM-PLC programming control;
All parameters are set by touch screen; Automatic feeding for rewinding.
