PVC Semi Automatic Double Sided Tape Machine Paper Cardboard Corrugated Board Wooden

PVC Semi Automatic Double Sided Tape Machine Paper Cardboard Corrugated Board Wooden

PVC Semi Automatic Packing Machine

Corrugated Double Sided Tape Machine

PVC Semi Automatic Double Tape Machine

Place of Origin:


Brand Name:


Model Number:


Contact Us

Request A Quote
Product Details
Product Name:
Semi Automatic Double Sided Tape
220V 50HZ/110V 50HZ
Product Materials:
Envelope ,A4 Paper ,carton Box ,PVC, Floor Board,and The Others
Applicator Heads Standard/max:
1 Upto 4 Heads
English, Italian, German, French, Spanish,Russia
Product Width:
25mm (1") Upto 1000mm (39")
Tape Thickness:
0.1 Mm - 2 Mm
Tape Width (max):
5mm(0.2") Upto 30mm(1.2")
Max Number Of Spots:
4 Spots (8 Spots Can Be Customized)
185 Kg
After Warranty Service:
Payment & Shipping Terms
Minimum Order Quantity
1 set
Packaging Details
Delivery Time
Payment Terms
L/C, T/T, Western Union
Supply Ability
Product Description


Paper, Cardboard, Corrugated board, Wooden, PVC Double Sided Tape Machine


TMS 1000 Semi-Automatic double sided tape applicator machine will reduce the time spends handing products which are folders, boxes, displays, stands etc.

The machine can apply the double sided tape to all the material which is with good hardness and flatness similar as Paper, Cardboard, Corrugated board, Wooden, PVC and the others. The thinnest paper 100 g/m² up to 20 mm thickness wooden.

The machine has a PLC touch screen and PLC programs that enables you to program and saves a multitude of tasks related to the handling of different products.

The tape applicator head adopts magnet valve and air cylinder working. The tape applicator head quantity can be installed 1-2 as optional.



The machine often to be used for poster, it can tape four tapes on the corner of poster. And then people can adhere the poster to wall of market.


Main performance and features:

1.Used for applying the double sided tape ,sealing tape and PVC tape on the envelope ,A4 paper ,carton box ,PVC material,decoration material and so on .

2.It is widely used in building materials, packaging, printing and many other industries

3.Instead of manual operation,and saving the labor force.
4.It is light and flexible,convenient to move, PLC programming, touching screen, operation simple.
5.With an adjustable feeding table and ability to load sheets up to 70x100cm it is the perfect machine for small scale work.

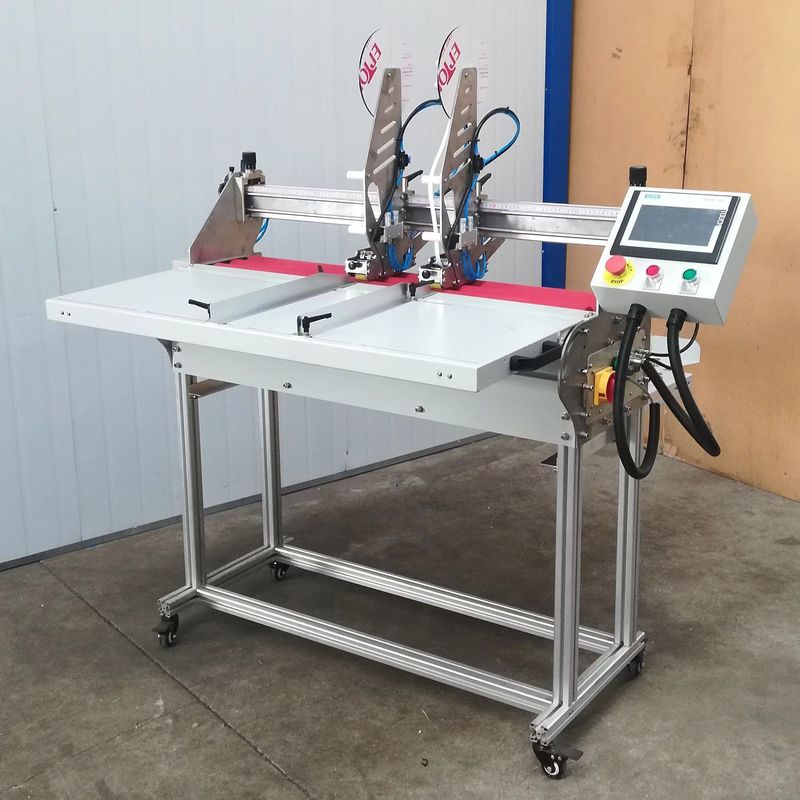

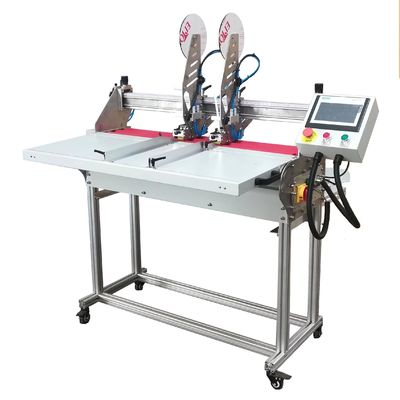

PVC Semi Automatic Double Sided Tape Machine Paper Cardboard Corrugated Board Wooden 0

PVC Semi Automatic Double Sided Tape Machine Paper Cardboard Corrugated Board Wooden 1


Product Paramenters


TMS 1000

Product width

25mm (1") upto 1000mm (39")

Product materials Envelope ,A4 paper ,carton box ,PVC, floor board,and the others
Product Thickness (Min paper grammage) 100 g/m2 (for paper)
Product Thickness (The other material) 0.1mm upto 20mm (0.8")
(Such as floor board ,Corrugated board )
Applicator Heads standard/max 1 upto 4 Heads
Max number of spots 4 spots (8 spots can be customized)
Min spot length/
Min tape strip length

25 mm (1")

tape thickness

0.1 mm - 2 mm

Tape width (max) 5mm(0.2") upto 30mm(1.2")
Internal tape roll diameter 76 mm (3")
Max external tape roll diameter 400 mm (15.75")
Speed 30m/min (100 ft/min)
Compressor air needs 6 bar
Dimension 156 x 69 x 165 CM (L x W x H)
