Place of Origin:
china
Brand Name:
HY
Certification:
CE
Model Number:
1713
Contact Us

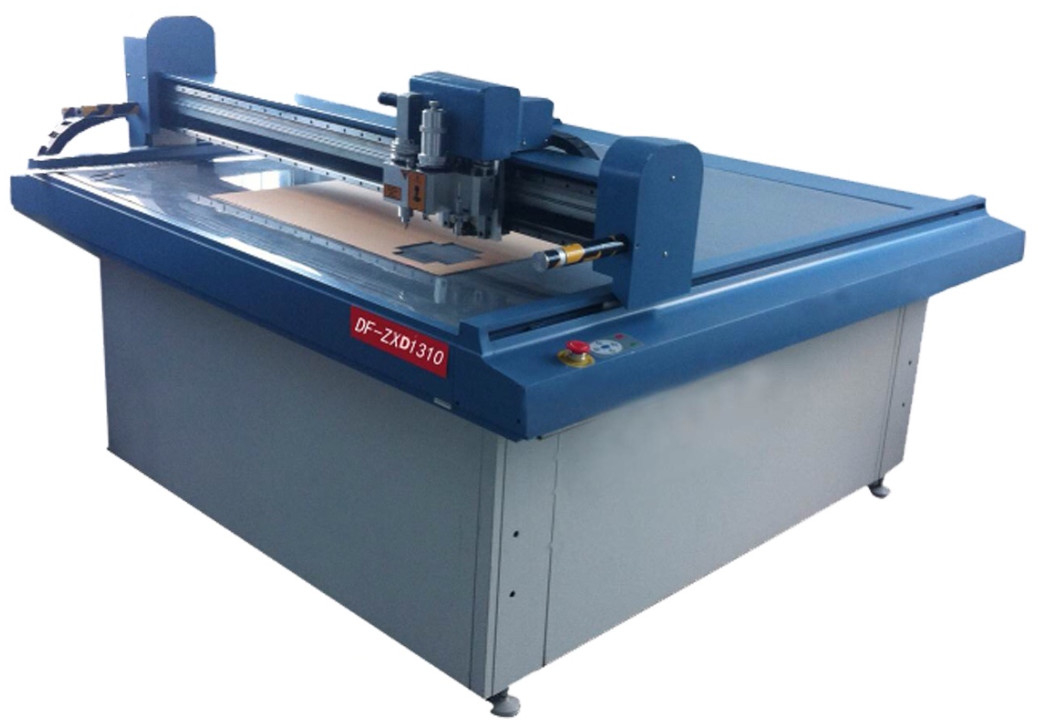

Carton box sample maker cutting machine
Description:
The carton box sample maker cutting machine used in Packaging, paper box, corrugated paper box, color print etc.
It can cut such materials as card paper, corrugated paper, duplex board, PVC, grey paper board and composite materials etc.
Application:
It is used in Packaging, paper box, corrugated paper box, color print etc.
1. Cutting different materials(up to 30 mm):
It can cut such materials as card paper, corrugated paper, duplex board, PVC, grey paper board and composite materials etc.
2.Pressing folding line:
It can press perfect line in the corrugated paper, cardboard, grey board etc.
3. Half-cut and dot line cutting:
It can half-cut on corrugated paper and also dot-line cut on grey board for folding.
4. Location:
It can accurately locate and cut the printed paper box.
5. Drawing function :
It can draw an accurate figure on a paper and a film.
6. V Cutting:
Specification:
|
Model
|
ZXD1713
|
|
Cutting area(mm)
|
1700*1300
|
|
Floor area(mm)
|
2450*2140*1150
|
|
Cutting material
|
Cardboard, corrugated paper, PVC, grey paper , foam, composite materials etc
|
|
Max cutting thickness
|
30mm
|
|
Positioning precision
|
≤0.1mm
|
|
Fixed type
|
Vacuum absorption
|
|
Cutting precision
|
≤0.1mm
|
|
Min cutting radius
|
3mm
|
|
Tool
|
Oscillating blade , Pen ,Creasing wheel ,Drag knife ,V knife
|
|
Command system
|
HPGL
|
|
Travel speed
|
40-1350mm/S
|
|
Power supply
|
220V±10%50HZ/380V±10%50HZ
|
|
Driving system
|
Servo
|
|
Transmission materials
|
Straight-line guide rails and imported synchronous belts
|
