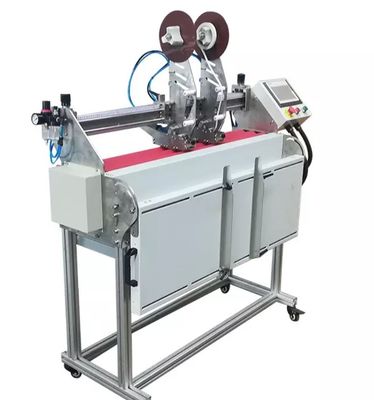

0.1mm - 2mm Thickness Adhesive Tape Applicator Machine For Kraft Paper / PVC Board
Kraft Paper Tape Applicator Machine 220V
,2mm Adhesive Tape Application Machine
,PVC Board Tape Applicator Machine
Tape applicator machine for paper/ adhesive tape Application machine for kraft paper /for PVC board
The machine can apply the double sided tape to all the material which is with good hardness and flatness similar as Paper, Cardboard, Corrugated board, Wooden, PVC and the others. The thinnest paper 100 g/m² up to 20 mm thickness wooden.
The machine has a PLC touch screen and PLC programs that enables you to program and saves a multitude of tasks related to the handling of different products.
Application:
The machine often to be used for poster, it can tape four tapes on the corner of poster. And then people can adhere the poster to wall of market.
Main performance and features:
1.Used for applying the double sided tape ,sealing tape and PVC tape on the envelope ,A4 paper ,carton box ,PVC material,decoration material and so on .
2.It is widely used in building materials, packaging, printing and many other industries
3.Instead of manual operation,and saving the labor force.
Product Paramenters
|
Model |
TMS 1000 |
|
Product width |
25mm (1") upto 1000mm (39") |
| Product materials | Envelope ,A4 paper ,carton box ,PVC, floor board,and the others |
| Product Thickness (Min paper grammage) | 100 g/m2 (for paper) |
| Product Thickness (The other material) | 0.1mm upto 20mm (0.8") (Such as floor board ,Corrugated board ) |
| Applicator Heads standard/max | 1 upto 4 Heads |
| Max number of spots | 4 spots (8 spots can be customized) |
| Min spot length/ Min tape strip length |
25 mm (1") |
| tape thickness |
0.1 mm - 2 mm |
| Tape width (max) | 5mm(0.2") upto 30mm(1.2") |
| Internal tape roll diameter | 76 mm (3") |
| Max external tape roll diameter | 400 mm (15.75") |
| Speed | 30m/min (100 ft/min) |
| Compressor air needs | 6 bar |
| Dimension | 156 x 69 x 165 CM (L x W x H) |
Company Profile
Our main products are Auto Bender, Laser cutter, Die cutting machine, Hot stamping machine, Laminator, Die board making tools and consumables in Packaging and Printing industry.
We are based in Shanghai, China, start from 2008,sell to South America(25.00%),South Asia(20.00%),Mid East(15.00%),Eastern Europe(10.00%),Southeast Asia(9.00%),North America(5.00%),Southern Europe(5.00%),Central America(5.00%),Africa(5.00%),Oceania(1.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Cutting rule,Auto bender,Laser cutting machine
4. why should you buy from us not from other suppliers?
Our company is in the printing and packaging industry since 2008, we provide machines and consumables mainly in the after printing industry, especially diecutting, paper cutting, box folding and pasting, laser cutting and CNC engraving.
-
