Quality High Speed Die Cutting Machine Ml-750 Cutting And Creasing Machine factory
<
Quality High Speed Die Cutting Machine Ml-750 Cutting And Creasing Machine factory
Quality High Speed Die Cutting Machine Ml-750 Cutting And Creasing Machine factory
Quality High Speed Die Cutting Machine Ml-750 Cutting And Creasing Machine factory
Quality High Speed Die Cutting Machine Ml-750 Cutting And Creasing Machine factory
>

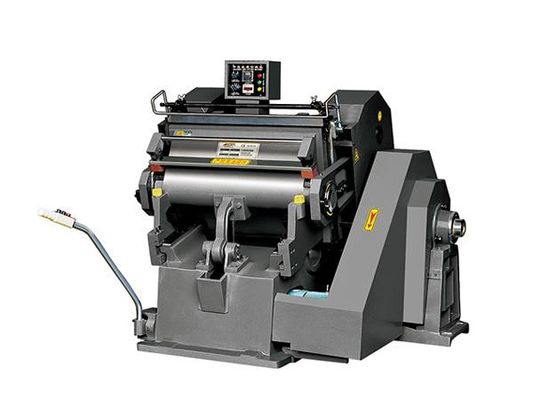

High Speed Die Cutting Machine Ml-750 Cutting And Creasing Machine

Specifications
Highlight:

Ml-750 Cutting And Creasing Machine

,

High Speed Cutting And Creasing Machine

,

750mm Die Cutting Machine
Type:
Paper Cutting Machine
Max. workable width:
750mm
Production Capacity:
26±2times/min
Warranty:
1 Year
Key Selling Points:
Easy To Operate
Tags:

Printer Accessories

Thermal Lamination Film

Positive PS Plate
Key Attributes
Brand Name: PM
Model Number: ML-750
Place of Origin: china
Certification: CE
Minimum Order Quantity: 1 set
Price: USD6500
Supply Ability: 10 sets/ month
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T
Standard Packaging: wooden case
Product Description

High Speed Die Cutting Machine Ml-750 Cutting And Creasing Machine Die Cutting Machine

Our die cutting machine is an indispensable piece of post press equipment which is widely used for die cutting, and creasing of adhesive stickers, carrier bags, book covers, packing boxes, greeting cards, desk calendars, corrugated cartons, etc. It can effectively cut the desired material into large numbers of the same shape.


Features
1. Our die cut machine is manufactured using high quality material for high strength
2. It adopts a 2-step helical gear mechanism, resulting in stable operation, large cutting force, and low noise.
3. Single disc electromagnetic clutch ensures agile, reliable operation
4. Reasonably designed operational altitude, moving bed with a large open angle
5. Electrical system is designed in accordance with IEC standard.
6. Single sheet die cutting, continuous die cutting operations, adjustable delay range
7. Reliable safety system ensures operator safety.


Advantages
1. Our die cutting machine uses centralized lubrication pump system
2. It adopts world famous brand electrical components
3. Strengthened construction ensures smooth operation and long service life.
4. The adoption of active plate frame makes it convenient to install die cutting rule and adjust pressure, producing clear and beautiful results.



Specification
Model Inner Chase Size(mm)

Speed

(strokes/min)

 Max.Rule Length(m) Motor Power(kw) Weight(t) Overall Dimensions(mm)
ML-750 750*520 26±2 ＜15 2.2kw 1.8 1450×1300×1400
ML-930 930*670 23±2 ＜25 4kw 2.7 1550×1800×1650
ML-1040 1040*720 23±2 ＜30 4kw 3 1650×1800×1650
ML-1100 1100*800 20±2 ＜32 4kw 3.7 1800×1900×1800
ML-1200 1200*820 20±2 ＜35 4kw 4.2 1900×1900×1800
ML-1300 1300*920 16±2 ＜40 5.5kw 5.3 2100×1900×2000
ML-1400 1400*1000 15±2 ＜45 5.5kw 6 2200×1900×2000
ML-1500 1500*1050 14±2 ＜48 7.5kw 6.2 2300×1900×2000
ML-1600 1600*1250 13±2 ＜50 11kw 10.5 2800×2300×2400
ML-1800 1800*1300 13±2 ＜60 11kw 11.5 3000×2300×2500
ML-2000 2000*1400 13±2 ＜65 15kw 14 3200×2400×2600
ML-2200 2200*1400 13±2 ＜70 15kw 15 3400×2400×2600
ML-2500 2500*1400 11±3 ＜80 22kw 16 3700×2400×2600
ML-2800 2800×1600 11±3 ＜85 30kw 18 4000×2400×2600
ML-3000 3000×1600 11±3 ＜90 30kw 20 4200×2400×2600





Features:

The heavy-duty machine body is made of cast iron (resin sand casting), which ensures its high strength and durability.

High Speed Die Cutting Machine Ml-750 Cutting And Creasing Machine 0



The large flywheel and helical gears allow the machine to run smoothly and at high pressure.



High Speed Die Cutting Machine Ml-750 Cutting And Creasing Machine 1

The advanced automatic central lubrication system ensures full lubrication for every necessary transmission part.

High Speed Die Cutting Machine Ml-750 Cutting And Creasing Machine 2

A dependable safety system: the machine is outfitted with a hand brake and several other brakes with limit switches.



High Speed Die Cutting Machine Ml-750 Cutting And Creasing Machine 3





High Speed Die Cutting Machine Ml-750 Cutting And Creasing Machine 4



Company profile:



Our main products are Auto Bender, Laser cutter, Diecutting machine, Hot stamping machine, Laminator, Dieboard making tools and consumables in Packaging and Printing industry.



High Speed Die Cutting Machine Ml-750 Cutting And Creasing Machine 5



Our main products are Auto Bender, Laser cutter, Diecutting machine, Hot stamping machine, Laminator, Dieboard making tools and consumables in Packaging and Printing industry. With our Auto Bender and Laser cutter, manual tools, users can set up or upgrade dieshop easily and raise efficiency greatly. Our high quality cutting rules feature good hardness and perfect flexibility and we also have various kinds of creasing rules, perforating rules, wave rules, cut-crease rules, zipper rules and glue flap rules.

FAQ

Q1: Are you a manufacturer ?
Yes.We are a professional manufacturer of machine for more than15 years.

Q2:Can your machine be customized?
Yes, almost all of our products can be customized, including the sizes,color, logo, package and so on.
Q3: How about your package?
A: Our machines are well wrapped by plastic film to be water proof first, then loading and fixing in a plywood case. If by
FCL(full container loading) we might use the wooden case.
Q4:How do you ship the finished products?
By Sea, By Plane, By courier, TNT , DHL, Fedex, UPS Etc.
Q5:What's the delivery time?
Within 15-35 days after get the payment
Q6: What is your after sale service?
A: Any questions will be responded within 24 hours by email, Skype, call or Whatsapp/Wechat. In addition, we have professional engineer available for overseas service...
Q7:Does it easy to operate and what can ido if it doesn't work?
First, our machine is stable and easy to operate by one man. What you do is just learn some basic thing like loading the jumbo roll paper, start the machine and cutting the paper. And we will sent you manual and video.we suggest you to come to visit our factory to learn more thing by yourself , and if there is something goes wrong,you can call us video-chat email us. And we will give solutions within 36 hrs.
Q8:If the machines spare parts broken,where can I get ?
We will give you the spare parts which is vulnerable, and some critical parts like gear box our quality is good, in case it broken within one year ,we will sent you for free.
