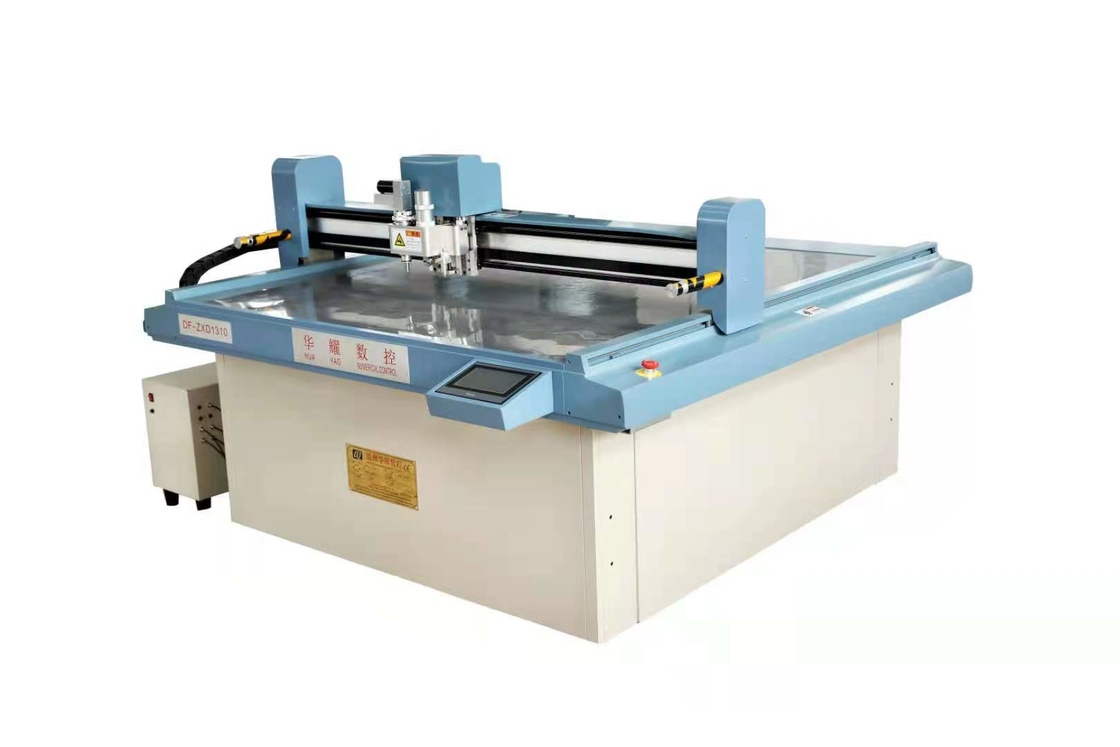

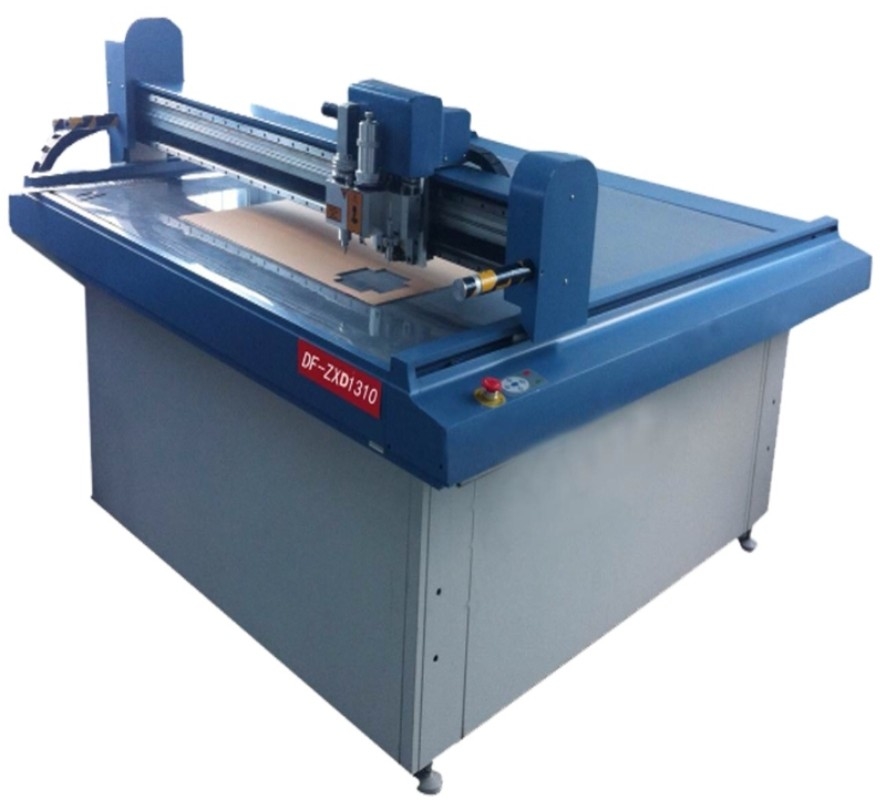

Automatic Carton Box Sample Maker Die Cutting Machine 220V 50HZ

Carton box sample maker cutting machine

Usage:

The carton box sample maker cutting machine used in Packaging, paper box, corrugated paper box, color print etc.
It can cut such materials as card paper, corrugated paper, duplex board, PVC, grey paper board and composite materials etc.

Application:
It is used in Packaging, paper box, corrugated paper box, color print etc.


1. Cutting different materials(up to 30 mm):
It can cut such materials as card paper, corrugated paper, duplex board, PVC, grey paper board and composite materials etc.


2.Pressing folding line:
It can press perfect line in the corrugated paper, cardboard, grey board etc.


3. Half-cut and dot line cutting:
It can half-cut on corrugated paper and also dot-line cut on grey board for folding.


4. Location:
It can accurately locate and cut the printed paper box.


5. Drawing function :
It can draw an accurate figure on a paper and a film.

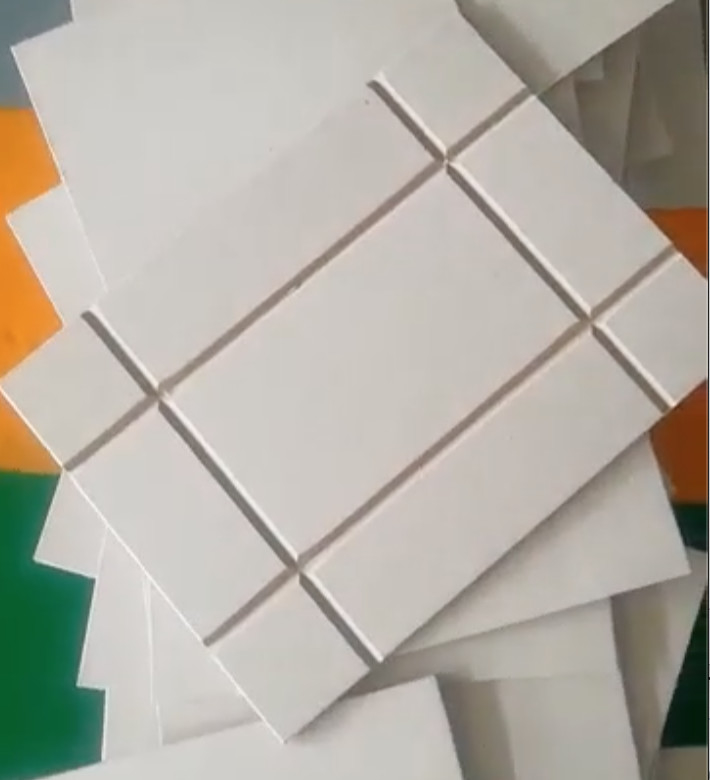

6. V Cutting:

Specification:

Model	ZXD1713
Cutting area(mm)	1700*1300
Floor area(mm)	2450*2140*1150
Cutting material	Cardboard, corrugated paper, PVC, grey paper , foam, composite materials etc
Max cutting thickness	30mm
Positioning precision	≤0.1mm
Fixed type	Vacuum absorption
Cutting precision	≤0.1mm
Min cutting radius	3mm
Tool	Oscillating blade , Pen ,Creasing wheel ,Drag knife ,V knife
Command system	HPGL
Travel speed	40-1350mm/S
Power supply	220V±10%50HZ/380V±10%50HZ
Driving system	Servo
Transmission materials	Straight-line guide rails and imported synchronous belts
