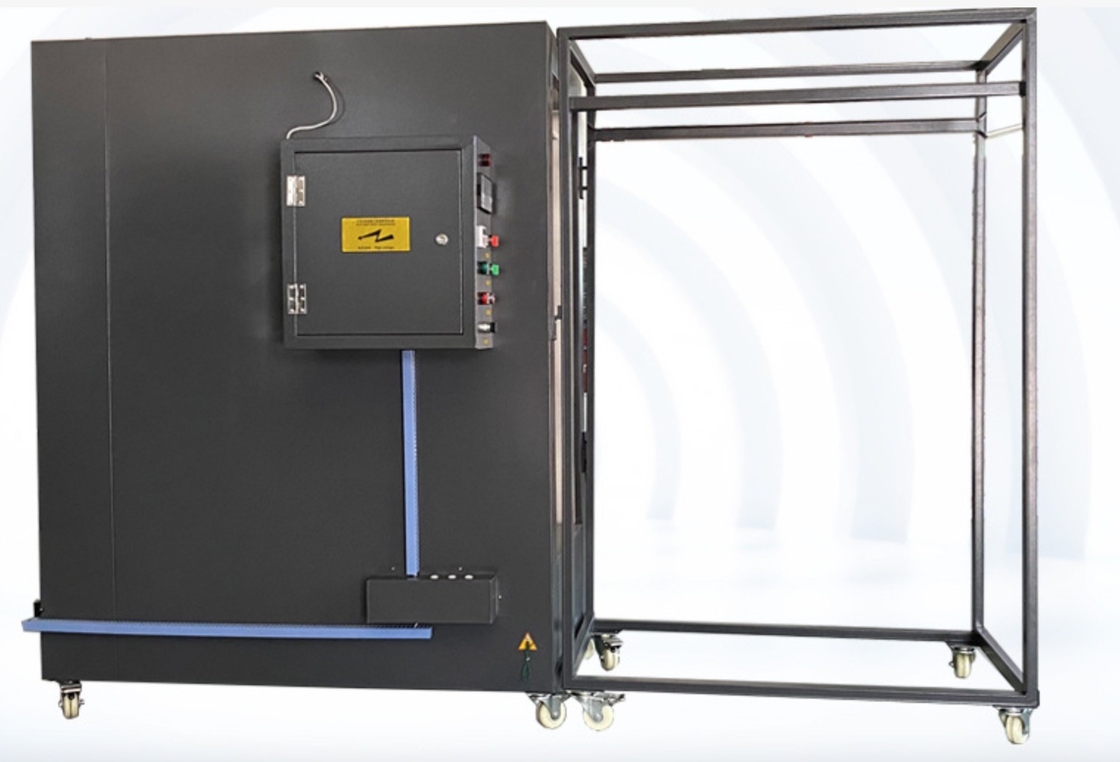

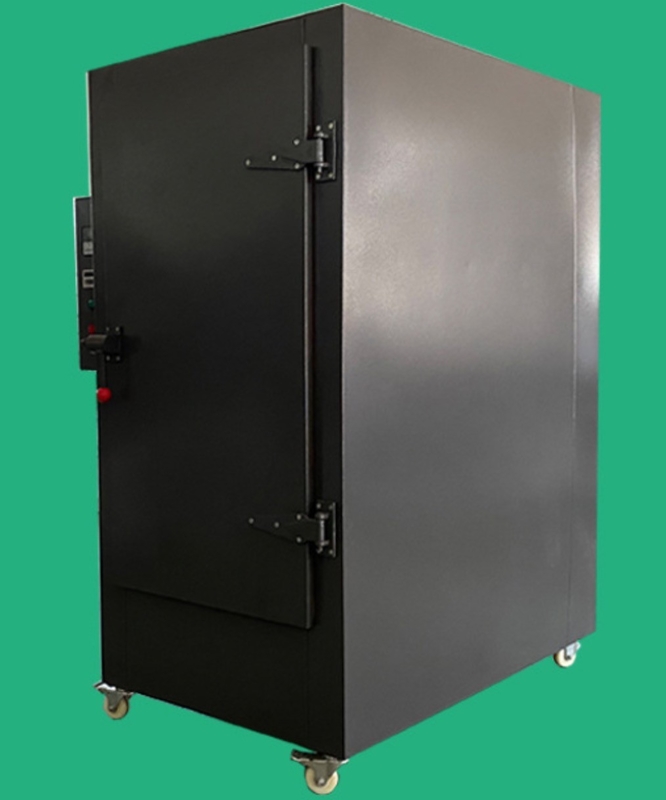

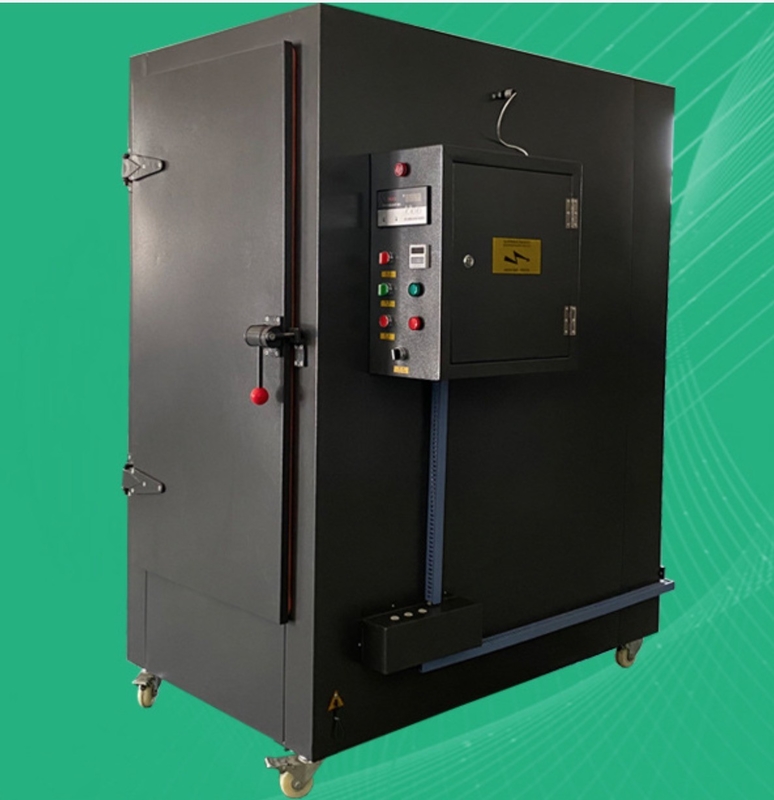

CTP Plate Baking Oven With Timing Starting / Shutting Equipment

Specifications
Highlight:

CTP plate baking oven

,

Timing Starting CTP Plate Baking Oven

,

Shutting Equipment CTP Plate Baking Oven
Power Supply:
AC380V 50/60Hz60A
Baking Temperature:
20-250℃
Model:
KYHL-880； KYHL-1400
Heating Power:
15kw；18kw
product name:
Offset Printing Plate Machine
keyword:
Ctp Plate
warranty:
1 Year
Tags:

Printer Accessories

Thermal Lamination Film

Positive PS Plate
Key Attributes
Brand Name: PM
Model Number: KYHL
Place of Origin: china
Minimum Order Quantity: 1 SET
Delivery Time: 15 DAYS
Payment Terms: L/C, T/T
Standard Packaging: WOODEN CASE
Product Description





China CTP plate baking oven for offset printing plate



 Characteristics :
1. Microcomputer temperature control, precise temperature control system and excellent heat insulation system.


2.Fully closed hot air circulation, the temperature of the baking plate is stable, the heat distribution is uniform, and the plate deformation is avoided.


3.Two separate temperature control system



4.Timing starting/shutting equipment, whole sealing machine case design, avoiding the hot gas running out.

5.Fine plate locking equipment, the plate can be taken out conveniently.


6.Automatic alarm when the roasting is over, accurate temperature control, fine heat insulation system, plates do
not bend.


Specification:

 Model KYHL-880 KYHL-1400
 Baking Time 6-8 min 6-8 min
 Max.Size 1100×880mm 1100×1400mm
 Max.Quantity 8
 Baking Temperature 20-250℃
Power Supply AC380V 50/60Hz60A
 Heating Power 15kw 18kw
 Net Weight 520kg 620kg
Outline Dimension 1280×800×1720mm 1780×800×1720mm



CTP Plate Baking Oven With Timing Starting / Shutting Equipment 0

Company Profile

CTP Plate Baking Oven With Timing Starting / Shutting Equipment 1

Our main products are Auto Bender, Laser cutter, Diecutting machine, Hot stamping machine, Laminator, Dieboard making tools and consumables in Packaging and Printing industry.

We also specialize in doctor blades, creasing matrix, jigsaw blades and different kinds of punches, click die steel, plywood as dieboards, drawing films, ejection rubber and equipment related in die cutting industry. We are always ready to provide complete products for cutting products making, printing and packaging.

FAQ
1. who are we?
We are based in Shanghai, China, start from 2008,sell to South America(25.00%),South Asia(20.00%),Mid East(15.00%),Eastern Europe(10.00%),Southeast Asia(9.00%),North America(5.00%),Africa(5.00%),Central America(5.00%),Southern Europe(5.00%),Oceania(00.00%). There are total about 5-10 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Cutting rule,Auto bender,Laser cutting machine

4. why should you buy from us not from other suppliers?
Our company is in the printing and packaging industry since 2008, we provide machines and consumables mainly in the after printing industry, especially diecutting, paper cutting, box folding and pasting, laser cutting and CNC engraving.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,CPT,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,French
