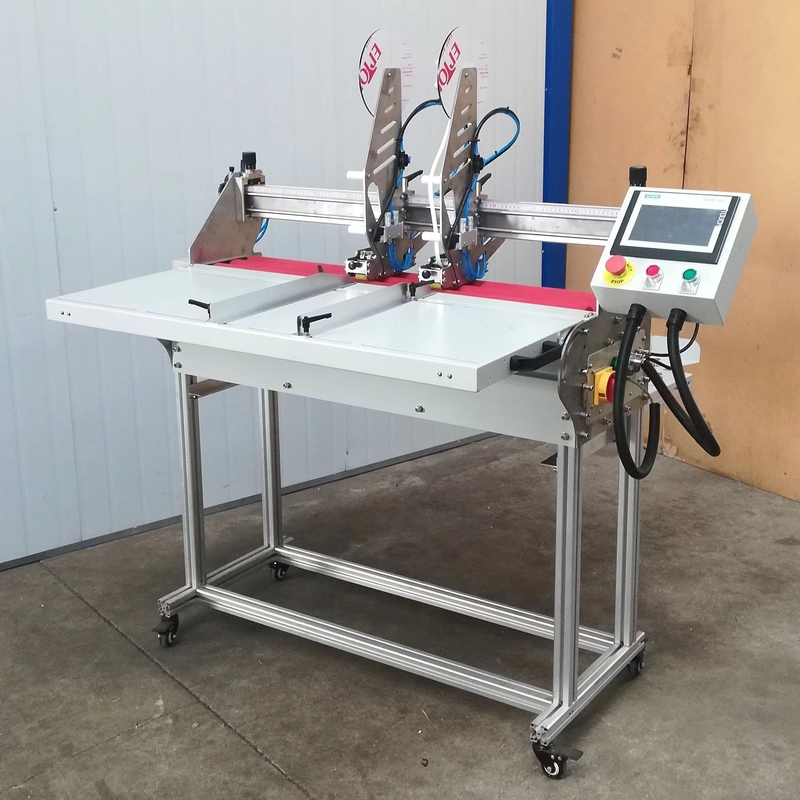

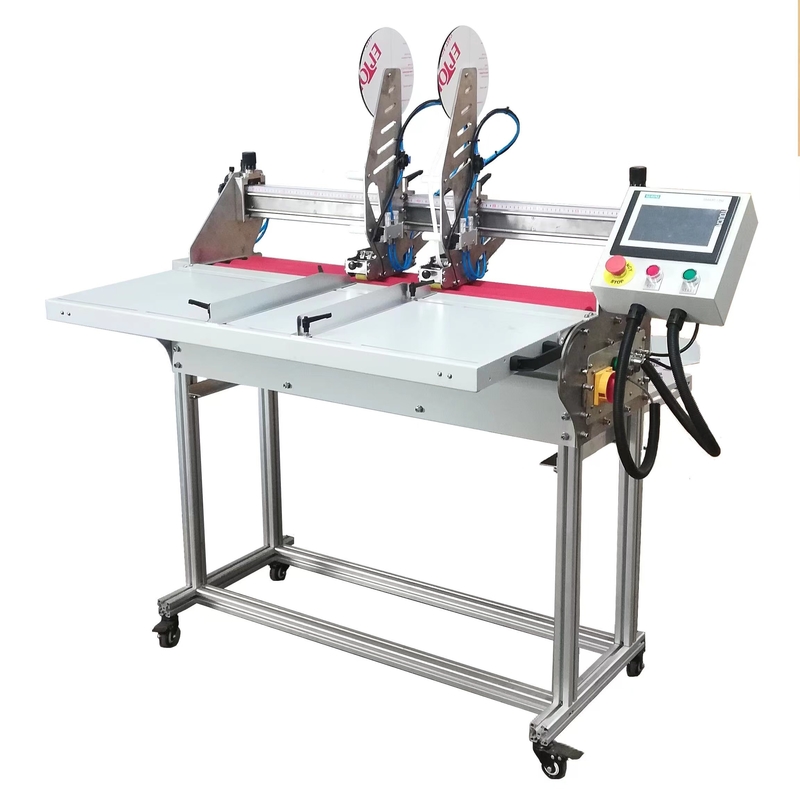

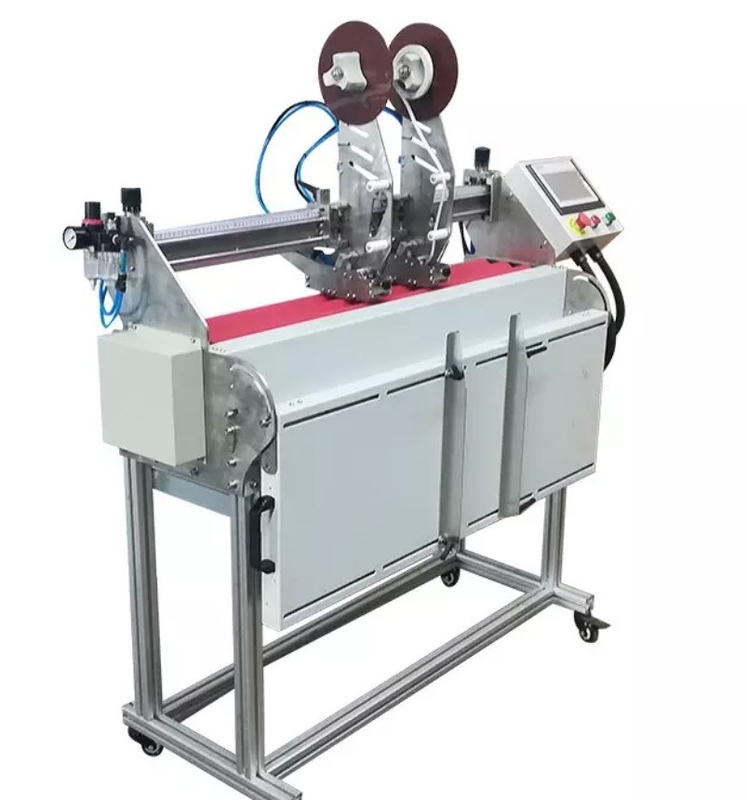

TMS 1000 Tape Applicator Machine for Building Materials Packaging Printing Industries
Building Materials Tape Applicator Machine
,Building Materials Packaging Tape Applicator Machine
,TMS 1000 Tape Applicator Machine
Tape applicator machine for paper adhesive
The machine can apply the double sided tape to all the material which is with good hardness and flatness similar as Paper, Cardboard, Corrugated board, Wooden, PVC and the others. The thinnest paper 100 g/m² up to 20 mm thickness wooden.
The machine has a PLC touch screen and PLC programs that enables you to program and saves a multitude of tasks related to the handling of different products.
Application:
The machine often to be used for poster, it can tape four tapes on the corner of poster. And then people can adhere the poster to wall of market.
Main performance and features:
1.Used for applying the double sided tape ,sealing tape and PVC tape on the envelope ,A4 paper ,carton box ,PVC material,decoration material and so on .
2.It is widely used in building materials, packaging, printing and many other industries
3.Instead of manual operation,and saving the labor force.
Product Paramenters
|
Model |
TMS 1000 |
|
Product width |
25mm (1") upto 1000mm (39") |
| Product materials | Envelope ,A4 paper ,carton box ,PVC, floor board,and the others |
| Product Thickness (Min paper grammage) | 100 g/m2 (for paper) |
| Product Thickness (The other material) | 0.1mm upto 20mm (0.8") (Such as floor board ,Corrugated board ) |
| Applicator Heads standard/max | 1 upto 4 Heads |
| Max number of spots | 4 spots (8 spots can be customized) |
| Min spot length/ Min tape strip length |
25 mm (1") |
| tape thickness |
0.1 mm - 2 mm |
| Tape width (max) | 5mm(0.2") upto 30mm(1.2") |
| Internal tape roll diameter | 76 mm (3") |
| Max external tape roll diameter | 400 mm (15.75") |
| Speed | 30m/min (100 ft/min) |
| Compressor air needs | 6 bar |
| Dimension | 156 x 69 x 165 CM (L x W x H) |
Company Profile
Our main products are Auto Bender, Laser cutter, Die cutting machine, Hot stamping machine, Laminator, Die board making tools and consumables in Packaging and Printing industry.
FAQ:
Q1: Are you a manufacturer ?
Yes.We are a professional manufacturer of machine for more than15 years.
Yes, almost all of our products can be customized, including the sizes,color, logo, package and so on.
Q3: How about your package?
A: Our machines are well wrapped by plastic film to be water proof first, then loading and fixing in a plywood case. If by
FCL(full container loading) we might use the wooden case.
Q4:How do you ship the finished products?
By Sea, By Plane, By courier, TNT , DHL, Fedex, UPS Etc.
Q5:What's the delivery time?
Within 15-35 days after get the payment
Q6: What is your after sale service?
A: Any questions will be responded within 24 hours by email, Skype, call or Whatsapp/Wechat. In addition, we have professional engineer available for overseas service.
Q7:Does it easy to operate and what can ido if it doesn't work?
Q8:If the machines spare parts broken,where can I get ?
-
