Two Separate Temperature Control System CTP Plate Baking Oven For Offset Printing Plate Other Consumables

Two Separate Temperature Control System CTP Plate Baking Oven For Offset Printing Plate Other Consumables

CTP Plate Baking Oven

Temperature Control CTP Plate Baking Oven

Place of Origin:

china

Brand Name:

PM

Model Number:

KYHL

Contact Us

Request A Quote
Product Details
Power Supply:
AC380V 50/60Hz
Baking Temperature:
20-250℃
Model:
KYHL-880; KYHL-1400
Heating Power:
15kw;18kw
Product Name:
Offset Printing Plate Machine
Keyword:
Ctp Plate
Payment & Shipping Terms
Minimum Order Quantity
1 SET
Price
Negotiable
Packaging Details
WOODEN CASE
Delivery Time
15 DAYS
Payment Terms
L/C, T/T, Western Union
Product Description

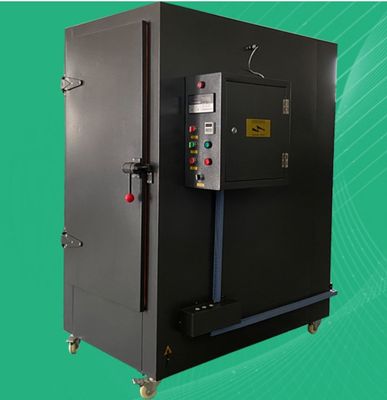

 CTP plate baking oven for offset printing plate



 Characteristics :
1.Microcomputer temperature control, precise temperature control system and excellent heat insulation system.


2.Fully closed hot air circulation, the temperature of the baking plate is stable, the heat distribution is uniform, and the plate deformation is avoided.


3.Two separate temperature control system could avoid the stopping for the single fault,to ensure the progress of the work.


4.Vertical plate double suction plate frame, reduce high temperature leakage, save power consumption.

5.Timing starting/shutting equipment, whole sealing machine case design, avoiding the hot gas running out.

6.Fine plate locking equipment, the plate can be taken out conveniently.



7.Automatic alarm when the roasting is over, accurate temperature control, fine heat insulation system, plates do
not bend.



 Model KYHL-880 KYHL-1400
 Baking Time 6-8 min 6-8 min
 Max.Size 1100×880mm 1100×1400mm
 Max.Quantity 8
 Baking Temperature 20-250℃
Power Supply AC380V 50/60Hz60A
 Heating Power 15kw 18kw
 Net Weight 520kg 620kg
Outline Dimension 1280×800×1720mm 1780×800×1720mm



Two Separate Temperature Control System CTP Plate Baking Oven For Offset Printing Plate Other Consumables 0

Company Profile
Two Separate Temperature Control System CTP Plate Baking Oven For Offset Printing Plate Other Consumables 1
Shanghai ProMega Trading Co., Ltd. is a professional manufacturer producing qualified products and equipment in printing and packaging industry. Our company was established in 1998.

Our main products are Auto Bender, Laser cutter, Diecutting machine, Hot stamping machine, Laminator, Dieboard making tools and consumables in Packaging and Printing industry.


We also specialize in doctor blades, creasing matrix, jigsaw blades and different kinds of punches, click die steel, plywood as dieboards, drawing films, ejection rubber and equipment related in die cutting industry. We are always ready to provide complete products for cutting products making, printing and packaging.


FAQ
Q1: Are you a manufacturer ?
Yes.We are a professional manufacturer of machine for more than15 years.

Q2:Can your machine be customized?
Yes, almost all of our products can be customized, including the sizes,color, logo, package and so on.
Q3: How about your package?
A: Our machines are well wrapped by plastic film to be water proof first, then loading and fixing in a plywood case. If by
FCL(full container loading) we might use the wooden case.
Q4:How do you ship the finished products?
By Sea, By Plane, By courier, TNT , DHL, Fedex, UPS Etc.
Q5:What's the delivery time?
Within 15-35 days after get the payment
Q6: What is your after sale service?
A: Any questions will be responded within 24 hours by email, Skype, call or Whatsapp/Wechat. In addition, we have professional engineer available for overseas service...
Q7:Does it easy to operate and what can ido if it doesn't work?
First, our machine is stable and easy to operate by one man. What you do is just learn some basic thing like loading the jumbo roll paper, start the machine and cutting the paper. And we will sent you manual and video.we suggest you to come to visit our factory to learn more thing by yourself , and if there is something goes wrong,you can call us video-chat email us. And we will give solutions within 36 hrs.
Q8:If the machines spare parts broken,where can I get ?
We will give you the spare parts which is vulnerable, and some critical parts like gear box our quality is good, in case it broken within one year ,we will sent you for free.
