Window Patching Automatic Packaging Machines / Auto Bagging Machine

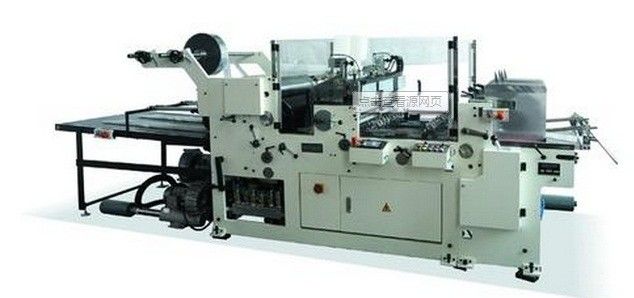

WINDOW PATCHING MACHINE
Main Features:
Window Patching Machine is widely used in the window patching to the liquor box, gift box. napkin box, cosmetic box, toy box, etc. It can be used for window film cut, creasing ,gluing and patching of card 200-500g/m2 and flute l-2.5mm thick.
Specifications:
1. Model: PTC-1450
|
Max. Paper Size |
1450×1060 mm |
|
Min. Paper Size |
160×140 mm |
|
Max. Length |
680×520mm |
|
Min. Length |
80×60mm |
|
Sheet Thickness |
0.05-0.20mm |
|
Max. Working Speed |
6000s/h |
|
Cardboard |
200-500g/m2 |
|
Corrugated Paper |
≤3mm |
|
Total Power |
3200kg |
|
Total Weight |
14kw |
|
Overall Dimensions |
6600×2800×2000mm |
|
When the roller pull out the Dimensions) |
6600×3800×2000mm |
2.The structure, of the machine
Paper Feeding Parts
The paper feeder parts is controller by the servo motor,the paper pile make the intermittent movement in the process of the paper feeding,the belts operate long life ,process the paper products to the conveying parts steady and orderly.
Conveying Parts
The paper conveying parts installed the four conveying chains with the four pushing blocks,it can be adjusted according to the paper shape.It is equipped with the 4 photosensor,detect the paper reaching condition,counting , paper jammed detection.
Gluing Parts
The gluing parts adopt the adjustable parts gluing structure , it is convenient for adjustable according to the paper requirment and the gluing position ,save the gluing quantity,it is easy for pulling out the gluing parts ,convenient for washing.The gluing roller stopped the gluing when stopped the machine.
And the conveying parts dropped automatically, the gluing is not easy to print on the conveyor belts.
The upper roller is the cutting film roller with the two blade ,one the upper blade ,the other is the lower blade,finishing the cutting of the film.
The below roller is the suction roller ,the film is patched on the suction roller
Paper Delivery parts
The patching products conveying to the paper delivery plate,finish the paper accumulation and
collection.
3.Electrical Components
a) Intermediate Relay : OMRON
b) Breaker:SCHNEIDER(France)
c) Photoelectric Switch :OMRON(Japan)
d) Bearing(Main Parts):SKF(Switerland)
e) Transformer: TENGEN
f) Frequency Converter:DELTA
g) Principle Logic Controller :VIGOR
h) Servo Motor/Driver ;TECO
i) Vacuum Pump:TONGYOU(ZHEJIANG)
j) Three Phase Motor: JSCC AUTOMATIC (XIAMEN) LTD.
k) Rubber Roller Motor:ZHEJIANG JIAXUE(Joint Venture)
Machine packed in wooden case , standard export packing
Machine shipped within 20 days after receiving payment
1. The whole machine has full 1 year warrantey, we will send the parts for replacing free of charge during warranty.
2. We will provide lifetime service online, you can get technical support within 24 hours by Email/ Skype/ Remote assistance etx.
3. Proffesionl person reply your questions.
