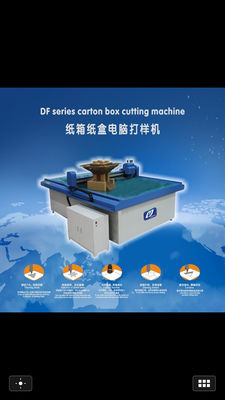

DF 1.5mm Depth Series Carton Box Cutting Machine With Two Heads

DF 1.5mm Depth Series Carton Box Cutting Machine With Two Heads

Post Press Machine

Automatic Packaging Machines

Place of Origin:

Zhejiang, China

Brand Name:

HuaYao

Certification:

CE

Model Number:

DF

Contact Us

Request A Quote
Product Details
Type:
Other, Packaging Line
Condition:
New
Application:
Packaging
Packaging Type:
Cartons
Packaging Material:
Paper
Power:
According To Users' Local Electric Standard
Weight:
800kgs
Max Cutting Thickness:
1.5mm
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
10 sets per month
Packaging Details
In wood case
Delivery Time
15 working days
Payment Terms
L/C, T/T
Supply Ability
US $15,000 - 20,000 / Set
Product Description

Cutting machine for box sample maker



The cutting machine is a cnc cutting machine, which makes carton into samples quickly, replace hand-proofing and manual design, saved money and materials for you company.





Now let me introduce machine for you:





Tool Head



  * A multifunctional tool head incorporating an oscillating knife, a marking pen and a creasing wheel.



DF 1.5mm Depth Series Carton Box Cutting Machine With Two Heads 0



Vibrating Knife:



  • availability of accurate full-cut and half-cut, ruling out the defects cause by die cutter or laser cutter.
  • adoption vibrating knife cutting technology, it can create precise carton patterns on corrugated board, grey board, cardboard, etc.
  • completely replace of manual cutting and mould cutting, save material, time and money



 DF 1.5mm Depth Series Carton Box Cutting Machine With Two Heads 1





  • Blade: various types blades, choose them according to your specific demands, works out a wide range of materials like corrugated board, grey board, cardboard, etc.







DF 1.5mm Depth Series Carton Box Cutting Machine With Two Heads 2



  • Pen: doing marks, drawing lines and creating pictures on the material (refill in)



DF 1.5mm Depth Series Carton Box Cutting Machine With Two Heads 3







 Compatibility software:



DF 1.5mm Depth Series Carton Box Cutting Machine With Two Heads 4



Connectible to common CAD,Illustrator or Coreldraw software to design the picture. Our control software supports the files in formats of such code as AI, PLT, DXF etc., widely used for production of carton and paper or pvc patterns.





Model for choice:

TYPE DF-1209 DF-1310 DF-1713 DF-2516
CUTTING AREA 1200X900 1300X1000 1700X1300 2500X1600
FLOOR AREA 1750X1740X1150 1850X1840X1150 2350X2140X1150 3050X2300X1150
CUTTING MATERIAL CARDBOARD,CORRUGATED PAPER, PVC, GREY PAPER
MAX CUTTING THICKNESS 1.5MM
POSITIONING PRECISION LESS THAN 0.1MM
FIXED TYPE VACUUM ABSORPTION
CUTTING PRECISION LESS THAN 0.1MM
MIN CUTTING RADIUS 5MM
TOOL OSCILLATING BLADE, CREASING PEN
COMMAND SYSTEM HPGL
TRAVEL SPEED 40-800MM
Power supply 220v 50HZ  380V 50HZ
DRIVING SYSTEM SERVO
TRANSMISSION MATERIALS STRAIGHT-LINE GUIDE RAILS AND IMPORTED SYNCHRONOUS BELTS
NOTE: THE CUTTING AREA AVAILABLE FOR CUSTOMIZATION



DF 1.5mm Depth Series Carton Box Cutting Machine With Two Heads 5
