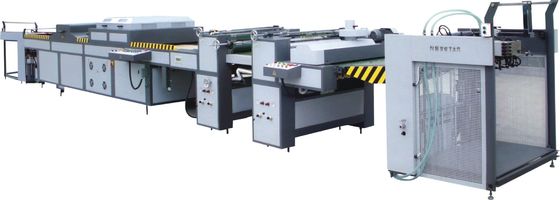

Fully Automatic Post Press Machine 38kw Uv Coating Equipment
Post Press Machine
,Automatic Packaging Machines
Fully Automatic UV Coating Machine PLC Control Coated Equipment
Features
Prom-UV1000A/UV1200A UV automatic coating machine has experienced technical upgrades based on the semi-automatic coating machine. With frequency conversion control adopted for metering roll, oiling volumes for papers of different thickness can be controlled through different linear veldt, straight forward and easy to operate and it achieves funder mental changes in the surface fineness and smoothness of coating products without orange peel veins and improve performance in polishing products.
Configuration
Paper feeding unit
-- Adopts oil-free vacuum pump to suck paper.
-- The feeder can be adjusted while running.
-- Double sheet controller.
I.R drying unit
-- I.R drying equipment
-- Fan cooling system
-- Fit for drying job after water-base coating or solvent coating.
Sheet cleaning unit
-- Press paper sheets even.
-- Remove the remaining dust on printing.
-- Dusting function and making paper surface much more even
and smooth after being glazed.
Base coating unit
-- Do base coating to fill up paper surface.
-- Add adhesive force between UV coating and printing.
-- Reduce the penetration of UV coating to keep paper purewhite.
-- Reduce the loss of UV oil
UV drying unit
-- UV radiation can make UV oil harden and be wear-resistant, and push paper surface to be much glossier.
-- Euqipped with fast cooling system to prevent paper curvature
-- Mesh Teflon belt conveyor is equipped with air aspirator to guarantee paper conveyed steadily.
Automatic paper collector
-- Euipped low noise belt conveyer, top and bottom pressing track again to make paper delivery smooth.
-- Coated thin paper is easy to curve. Air aspirator is equipped to level paper.
-- Toadopt pneumatic patting device with accurate running which regulates paper tracking.
|
Technical Parameters |
||
| Model | PROM-UV1000A | PROM-UV1200A |
| Max Paper Size | 780x950mm | 780x1040mm |
| Min Paper Size | 340x420mm | 340x420mm |
| Max Coating Width | 950mm | 1150mm |
| Paper Thickness | 80-600g/m2 | 200-600g/m2 |
| Max feeding speed | IR80m/min UV40m/min | |
| Total Weight | 5000kg | 5500kg |
| Total Power | 65kw | |
| Overall Dimensions | 12000x1760x1600mm | 12000x1960x1600mm |
-
