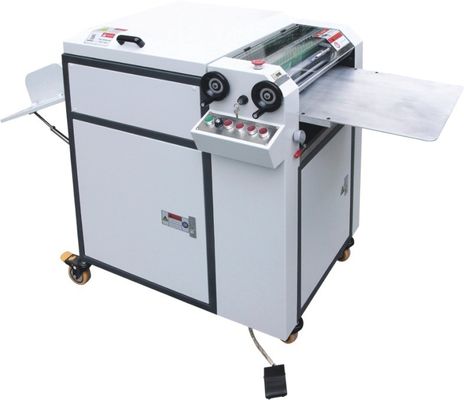

Single Handle Manual 480 UV Coating Machine With UV Curing Or IR Drying Device
Post Press Machine
,Automatic Packaging Machines
Manual 480 UV Coating Machine Coated Equipment
Introduction
Prom-MUV-480 small size manual UV coating machine is a newly development and designed machine in our company. Equip with the features of easily operation and simply maintenance, together with excellent performance,which is applicable to post-press small size papers'UV coating and water-base oil coating.
Features
· Equipped with UV curing or IR drying device.
· Roll coating variable speed control.
· Single-handle roller adjustments.
· Air-suction sheets hold-down throughout conveyor paper path.
· Ultra compact footprint.
· Easy access UV lamp replacement.
· High velocity blower fan for cooling and exhaust.
· Safety locker on all machine doors and covers.
· Full coverage protection against UV radiation aroud the UV lamp chamber.
· Lower temperature control on the UV lamp chamber surface.
· Interlocks design prevent against misoperation.
· Single phase power supply 1Φ-220V-50/60Hz.
| Technical Parameters | |
| Model Number | Prom-MUV-480 |
| Max. Sheet Size | 450x650mm |
| Min. Sheet Size | 150x210mm |
| Sheet Weight | 150~500g/m2 |
| Speed | 0~25m/min |
| Power | 8.0Kw |
| UV Lamp | 1PCSx4.0Kw |
| IR Lamp | 3PCSx0.9Kw |
| Weight | 400kg |
| Dimension | 1870x850x1100mm |
| Application Rubber Roller Dia. | 90mm |
| Metering Roller Dia. | 60mm |
| Impression Roller Dia. | 90mm |
-
