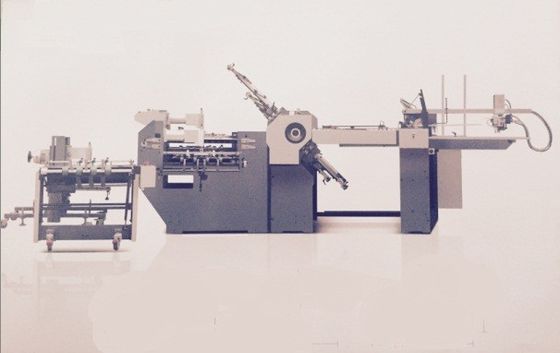

Combi - folding Post Press Equipment With Electric Control Knife
UV Coating Machine
,Automatic Packaging Machines
Combi-folding Machine Package Machine With Electric Control Knife
Description
This machine adopts Japan's OMRON servo motor ( photo electric transmission system ), which has largely improved the folding knife's precision and speed, stablized the knife's function, simplified the machine operation. Other traits as follows:
- Top brand electricity
- Casted rubber roller
- Spindle coupler's adjusting precision is up to detection system
- Fequency control system
- PLC ( Programmable Logic Controller ) touch screen
- Malfunctions' detecting and tracking / data displaying / trouble shooting tips and so on
The machine is easy and safe to operate, great choice for large and medium size printing factories
Main parts of Machine
Cast Rubber Roller of International Advanced technology
Electric Cutter Transmission
High-precision Spindle Coupler Transmission
Electric Cutter With OMRON Servo motor Transmission made in Japan
Main Technical Parameter
| Model | PRO-CMF-490E | PRO-CMF-660E | PRO-CMF-720E | PRO-CMF-780E |
|---|---|---|---|---|
| Foldable max sheet size | 490x700mm | 660x1040mm | 720x1090mm | 780x1160mm |
| Foldable min sheet size | 120x200mm | 150x200mm | 150x200mm | 150x200mm |
| Foldable sheet rotation range | 40-200g/m2 | 40-200g/m2 | 40-200g/m2 | 40-200g/m2 |
| Floding & Rolling max line speed | 180m/min | 170m/min | 180m/min | 180m/min |
| Clasp knife max speed | 200 strokes/min | 200 strokes/min | 200 strokes/min | 200 strokes/min |
| Total power | 5kw | 6kw | 6.5kw | 7kw |
| Packing Weight | 1800kg | 2590kg | 2790kg | 2990kg |
