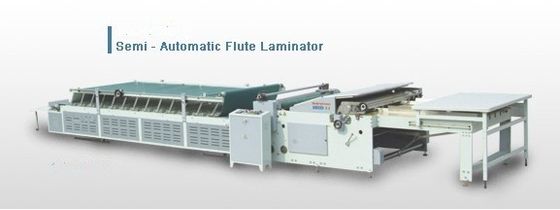

Economic Semi automatic Flute Laminating Machine Pasting Paper machine
Bag Packaging Machine
,Automatic Packaging Machine
Economic Semi-automatic Flute Laminating Machine Pasting Paper machine
Performance of the machine:
The automatic gluing system is used for glue application and sensors for detecting glue level;
The imported frequency converter for speed regulating ensures smooth and stable running with low noise.
All the electric components are imported from famous company in the world, safety, reliable and almost trouble-free.
Product Notes:
TMB-1100B/1300B/1450B/1600B Semi-automatic flute laminators adopt pushing mode, which make bottom sheet feeding smooth and accurate. Two laminating ways of aligning and exceeding are available to the customers and two operating modes are provided, they are electric or mechanic.
Specifications:
|
Model |
TMB-1100B |
TMB-1300B |
TMB-1450B |
TMB-1600B |
|
Maximum size(W×L) |
1100×900mm |
1300×900mm |
1450×1200mm |
1600×1400mm |
|
minimum size(W×L) |
350×350mm |
350×350mm |
350×350mm |
350×350mm |
|
Maximum Speed |
45m/min |
45m/min |
45m/min |
40m/min |
|
Total power |
3.5kw |
3.5kw |
4.2kw |
4.2kw |
|
Total weight |
3.8T |
4.3T |
4.8T |
5.6T |
|
Overall dimension |
10660×1780×1260 |
10660×1980×1260 |
10660×2130×1260 |
11060×2280×1260 |
-
