Product Details:
|
| Processing Area: | 450x450 600x600 720x720 1200x1200 | Laser Type: | CO2 |
|---|---|---|---|
| Laser Power: | 0-100w | Marking Speed: | 250 Characters Per Second |
| Pulse Repetition Frequency: | <50KHz | Quality Of Laser Beam: | M2<8(@25A) |
| Focusing Lens: | Standard F160 | Smallest Marking Character: | 0.3mm |
| Minimum Marking Line Width: | 50um | Electricity Needs: | 220V 50Hz 30A |
| Total Power: | <6.5KW | Cooling Method: | Water Ccoling |
| Graphic File Format Supported: | PLT,AI,CDR,DWG,DXF,BMP,JPEG | ||
| High Light: | Cnc Laser Cutting Machine,Laser Cutter Machine |
||
Applicable Industry
It can be widely used inclothing, crafts, wood products, advertisement decoration, leather printing plate, decoration, construction model.
Description

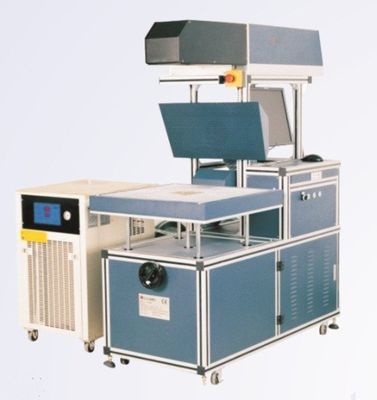

Three axis laser scanning system is with the characteristics of compact, strong dustproof, convenient installation precision, strong anti-interference. The design of the system fully considers the galvanometer motor and heat emission of drive board, to ensure state of stability after the long-hours work.
Control card adapt USB interface bus, support offline operation, support the X,Y,Z and R four axes stepping motor (X,Y,Z linkage), support external control start up and stop marking.
Applicable materials
Leather, rubber, wood, bamboo, organic glass, ceramic tile, plastic, marble, jade, crystal, cloth and nonmetal materials
Main configuration
High performance galvanometer component
Originated Imported Laser Mirror Component
Originated Imported Laser CO2 Laser Device
Sample Display
