High Speed Roll Fed Paper Bag Making Machine 550 Model for Square Bottom bag making

High Speed Roll Fed Paper Bag Making Machine 550 Model for Square Bottom bag making

Roll Fed Paper Bag Making Machine

20KW Square Bottom bag making Machine

Roll Fed Square Bottom Paper Bag Machine

Place of Origin:

JIANGSU, CHINA

Brand Name:

Diamond

Certification:

CE, ISO 9000

Model Number:

HD-550

Contact Us

Request A Quote
Product Details
Condition:
New
Machine Type:
Paper Bag Making Machine
Bag Type:
Square Bottom
Material:
Paper
Computerized:
Yes
Model Number:
HD-550
Voltage:
380V/50Hz/3 Phase Or As Per Your Local
Total Power:
20KW
Dimension:
135000*2400*2300mm
Weight:
12000kgs
Certificate:
CE/ISO9001
Warranty:
2 Years
After-sales Service Provided:
Engineers Available To Service Overseas
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
USD 86000 to USD 140000 PER SET
Packaging Details
moisture-proof and shock-proof packaging
Delivery Time
45 days after deposit
Payment Terms
L/C, T/T, Western Union, MoneyGram
Supply Ability
4 sets per month
Product Description

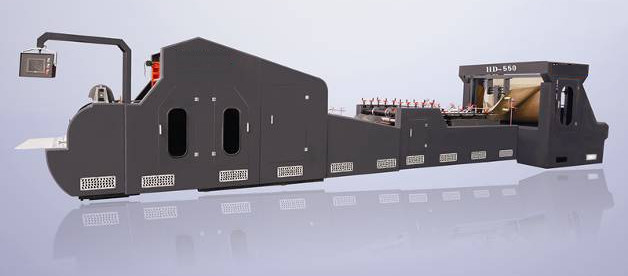

HD-550 High Speed Roll Fed Paper Bag Making Machine





This is a new high speed square bottom paper bag machine. Its advantages are high speed, high efficiency and wide-range adjustment; In addition, it has the international advanced technology and easy to operate, lift raw materials automatically, correct errors automatically and control tension automatically, and all the processes are done by PLC. This machine is the quintessence both of home and abroad.



Product Use: Paper Bags to be used for packing items / Paper shopping bags used for carrying the goods after paste handles.

Raw Materials : Any type of kraft (printed) paper(brown or white) in roll form upto 170gsm.



Structure of the machine:

Paper Roll Width 630-1450mm
Tube Length 300-700mm
Bag Width 220-550mm
Bottom Width 80-250mm
Paper Weight 100-170g/m2
Max. Paper Roll Diameter ф1200mm
Material Core Diameter ф76mm
Production Speed 80-150 bags/min
Total Power 20KW
Machine Weight 12000 kg
Machine dimensions

135000*2400*2300mm



High Speed Roll Fed Paper Bag Making Machine 550 Model for Square Bottom bag making 0



Principle in the production



High Speed Roll Fed Paper Bag Making Machine 550 Model for Square Bottom bag making 1



Main Components of HD-550 Roll Fed Square Bottom Paper Bag Machine



Main Components of HD-550 Roll Fed Square Bottom Paper Bag Machine
No Name Model Quantity Manufacturers Remarks
1 Frequency Converter VFD055B43A 1 DELTA Taiwan
2 Rotary Cut Drive PDS-4075N 1 REMAPOWER Taiwan
3 Programmable Controller DVP20EH00T2 1 DELTA Taiwan
4 Servo drivers SGDM-50ADA 1 YASKAWA Japan
5 Encoder OVW2-2500-2MD 1 NEMICON Japan
6 Encoder OVW2-1024-2MHT 1 NEMICON Japan
7 Switching Power Supply HS-50-24 1 DELTA Taiwan
8 Relay JZX-22FD/3Z 2 CHNT China
9 Work lights AD16-22D/-S 1 APT China
10 OMRON Optical radiation E3F3-T81 1 OMRON Japan
11 Banner Photocell R58A 1 Banner America
12 Proximity switches DW-AD-611-M12 1 Contrinex Switzerland
13 Proximity switches DW-AD-613-M12 2 Contrinex Switzerland
14 Travel switch YBLX-K1/411 2 CHNT China
15 Encoder OVW2-2500-2MD 1 NEMICON Japan
16 Encoder OVW2-1024-2MHT 1 NEMICON Japan
17 Circular
connector
P32K3Q 2 Haogncn Connectors China
18 Encoder OVW2-2500-2MD 1 NEMICON Japan
19 Encoder OVW2-1024-2MHT 1 NEMICON Japan

Automatic Feeding with Hydraulic System & Pneumatic Shaft



High Speed Roll Fed Paper Bag Making Machine 550 Model for Square Bottom bag making 2



High Speed Roll Fed Paper Bag Making Machine 550 Model for Square Bottom bag making 3



Automatic Glue System for Side pasting(sensor detecting glue)



High Speed Roll Fed Paper Bag Making Machine 550 Model for Square Bottom bag making 4



Paper Folding System and Photocell Sensor for Printed Paper

High Speed Roll Fed Paper Bag Making Machine 550 Model for Square Bottom bag making 5High Speed Roll Fed Paper Bag Making Machine 550 Model for Square Bottom bag making 6

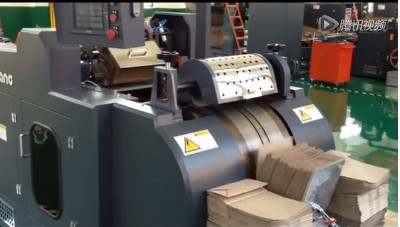

Paper Tube Cutting System Controlled by Servo Drive.(Touch Screen)



High Speed Roll Fed Paper Bag Making Machine 550 Model for Square Bottom bag making 7

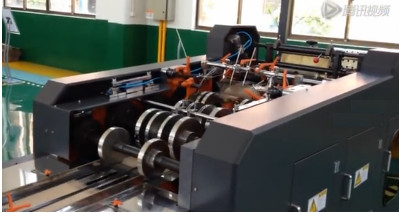

Bottom Folding System.



High Speed Roll Fed Paper Bag Making Machine 550 Model for Square Bottom bag making 8

High Speed Roll Fed Paper Bag Making Machine 550 Model for Square Bottom bag making 9



Output. (Bag Counter, Alarm...)



High Speed Roll Fed Paper Bag Making Machine 550 Model for Square Bottom bag making 10High Speed Roll Fed Paper Bag Making Machine 550 Model for Square Bottom bag making 11



High Speed Roll Fed Paper Bag Making Machine 550 Model for Square Bottom bag making 12High Speed Roll Fed Paper Bag Making Machine 550 Model for Square Bottom bag making 13
