High Speed Automatic Paper Bag Forming Machine / Paper Bag Making Machine
paper bag making machine
,paper bag manufacturing machine
,high speed paper food bag machine

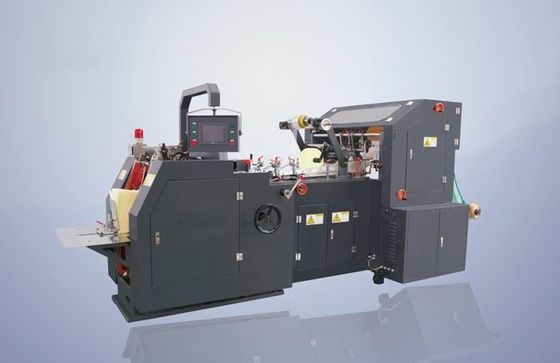

WFD-400 High Speed Automatic Paper Food Bag Machine
This machine is built to make paper rolls or printed-paper rolls into bags for packing fast food like bread, loaf, KFC. Paper Baguette bags. It is equipped with CRT for easy operation; with photocell for make the same printed paper bags. The bags can be many different dimensions.
| Paper Gram Weight (g/㎡) | 40-80 |
| Bag length (mm) | 160-440 |
| Bag Width (mm) | 80-250 |
| Bag Side Width (mm) | 20-100 |
| Paper Roll Width (mm) | 230-720 |
| Maximum Paper Roll Width (mm) | 1200 |
| Speed | 100-400bags/min. |
| Total Power (kw) | 10 |
| Machine Weight (Ton) | 3.5 |
| Machine Dimension (L*W*H) | 4500*1500*2100mm |
Company:
Shanghai ProMega Trading Co., Ltd. is a professional manufacturer producing qualified products and equipment in printing and packaging industry. Our company was established in 2008. We have 1 steel rule factory in Shanghai producing all kinds of steel rules, punches, ejection rubber, jigsaw blades, pins, doctor blade and creasing matrix in the Cutting formes industry.
Our main products are related to the Diecutting industry like Auto Bender, Laser cutter, Jigsaw machine, Diecutting machine, Hot stamping machine, Sampler maker, as well the machines in the after printing area such as Folder gluer, Guillotine machine, Laminator, Booking binding like cover machine, grooving machine, cardboard cutting machine, Dieboard making tools and consumables in Packaging and Printing industry.
We are specialized in the Diecutting industry which we can provide complete resolution of setting up a Dieshop for making Cutting formes and Block making for hot stamping or embossing areas. With our Auto Bender and Laser cutter, manual tools, users can set up or upgrade dieshop easily and raise efficiency greatly. We can provide not only the machines to set up dieshop, but also the software and management for this purpose.
-
High - End Version 400w 600w 800w Laser Cutting Machine For Die Board Maker
MPS-DS1212 SERIES OF HIGH-END VERSION LASER CUTTING MACHINE FOR DIE BOARD MAKER MPS-DS, the high-end version of medium power laser cutting machine, adopts the principle of constant light path design.it keeps laser in the process of device running, materials are fixed on the platform with the moving platform, thus, it can ensure the stability of the optical path. The advantage of this laser cutting machine: 1. The laser cutting machine equipped with the laser generators
-
Laser Cutting Machine 1000W/1500W/2200W Fast Flow Generator For Die Board Making
1500W 3 Phase Metal Laser Cutting Machine for die cutting Factory Specifications: Model PMH-1812 Laser generator power 1500W max. Laser beam wave 10.6 m Power adjustment 50-1500W X axis travel 1250mm Y-axis travel 1850mm Positioning accuracy +/- 0.05mm/m Maximum positioning speed 10m/minute max. Control system motion control card / NC Transmission system screw guide Driving system Three-axis servo drive system Optical system X axis Laser moves Y axis table moves Moving system
-
Fully Automatic Auto Bender With Bending Cutting Notching And Lipping 910C Model For 1.5/2/3pt Steel Rule
Completely Computer Control Diecutting rule Auto Bending Machine for Dieboard making Main technical specifications 90 ° minimum R no repair knife 1.5 mm (support blade thickness 0.71) 2.0mm (support blade thickness 1.07) 180 ° minimum R no repair knife 2.5mm (support blade thickness 0.71) 3mm (support blade thickness 1.07) Maximum bending $ 1000 mm Maximum bending angle 120 ° Minimum 90 ° bend size 3 mm Minimum bending full circle diameter 5mm Feeding accuracy ± 0.05mm Tail
-
Digital Printing / Graphic Express Printing Unit Hydraulic Paper Cutting Machine
Hydraulic paper cutting machine Guillotine for Digital Printing for Graphic Express Printing Unit Product Description: Cutting knife and paperweight are controlled by hydraulic transmission. Fully hydraulic drive makes the machine more secure and imported hydraulic parts ensure the stability of the system. The machine has the function of a reference setting and keeping, and the effectiveness of the reference and self-diagnostic function; infrared protection and hands button
