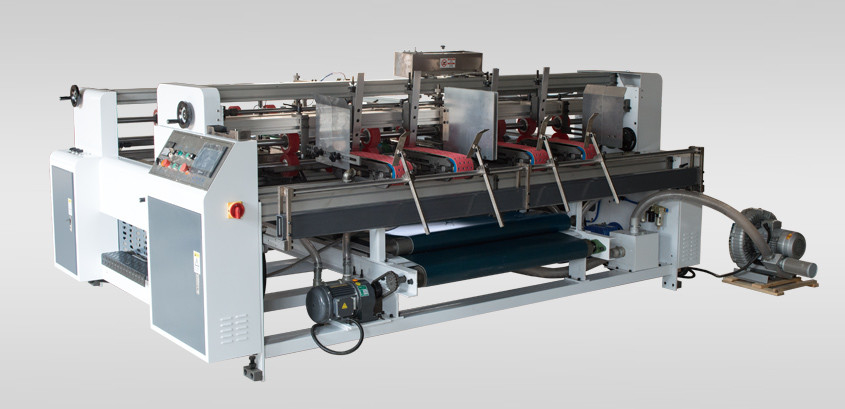

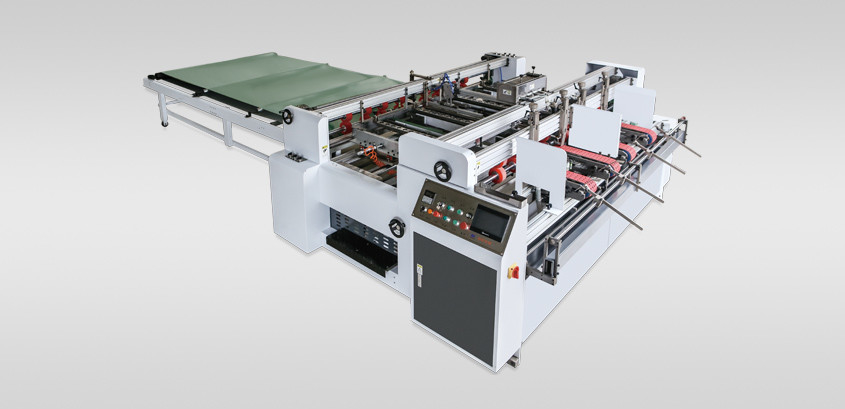

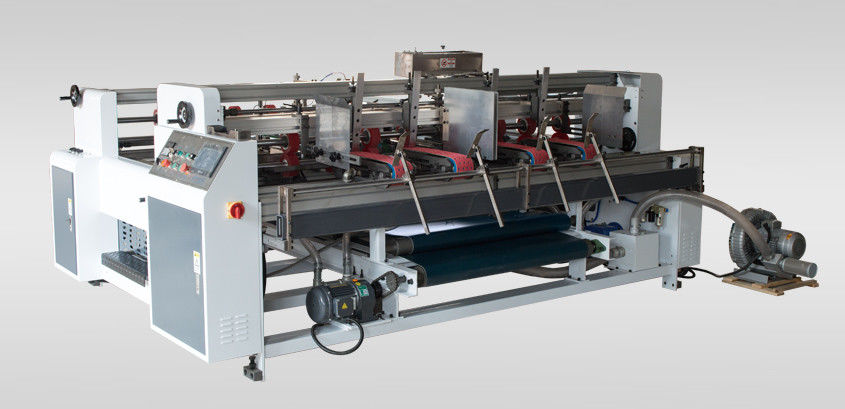

High Speed Semi Automatic Ab Gluer Machine 2300/2600 For Corrugation Board Pasting And Gluing
Semi Automatic Ab Gluer Machine
,Corrugation Board Pasting Gluing Machine

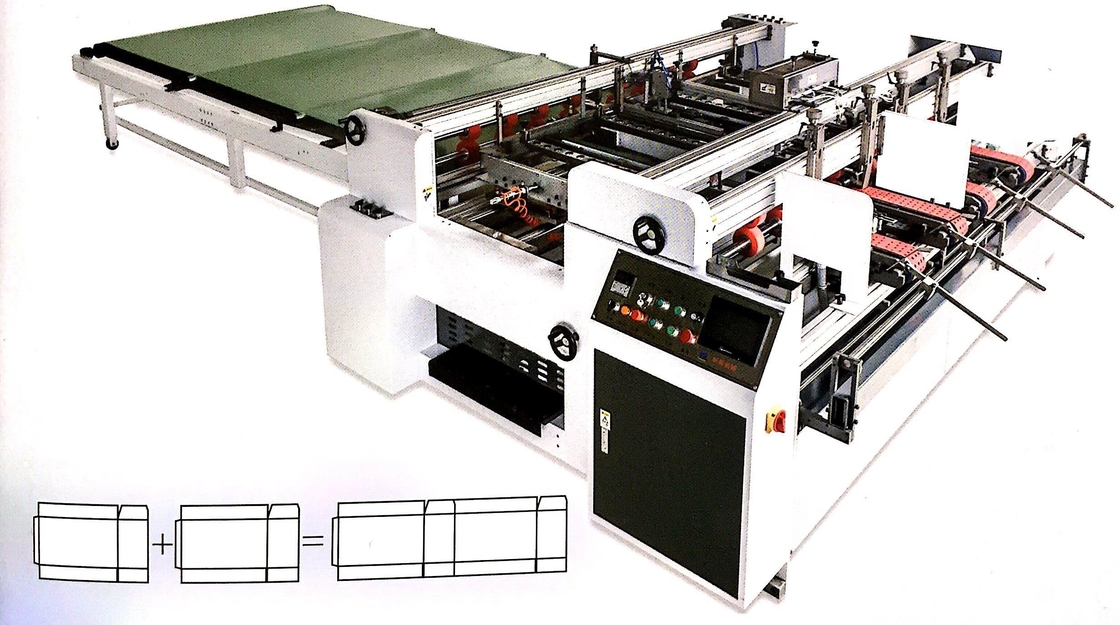

In existing traditional technology, AB (double) box cementing is often made by hand or by existing semi-automatic gluer machine and then glued by hand, which is slow speed and poor accuracy. In this machine, feeder assembly uses Slice A and Slice B for adsorption and paper skip, which paper feeding is fast speed, high precision and quick adjustment, intermediate feed docking part uses four-side positioning to ensure the accuracy of the first crossing docking, folding part uses artificial fold for inaccurate indentation (above or below the arris) to make the second crossing precision controllable, pressing part uses press machine for conveying with pressure maintaining, making glue sticking and positioning in the press machine, to ensure the accuracy of the cartons.
| Specification | Model: PM-2300 |
| Max Output paper size (Single) | 1150x800mm |
| Mini Feed Size (Single) | 450x350mm |
| Max. height of stack | 400mm |
| Main Motor Power | 2.2KW |
| Total Power | 6KW |
| Total Weight | 2.5T |
| Dimension | 3100x3500x1500mm |
Components:
Adjusting part
This machine uses lead screw for electric adjustment, which is convenient to update order, and saves time and effort.
Electrical part

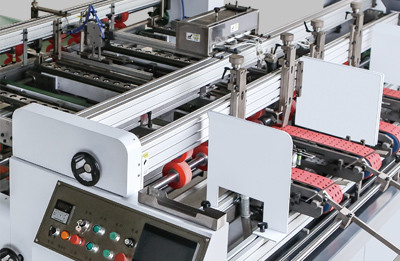

This machine adopts imported electrical appliance to ensure stable running without electrical accident. Electrical system adopts advanced control devices, including PLC program controller and man-machine interface touch screen.

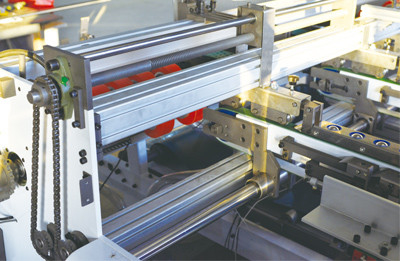

Feed part
This machine uses steel ball to press paper, equipped with plastic cover to reduce its noise.
-
