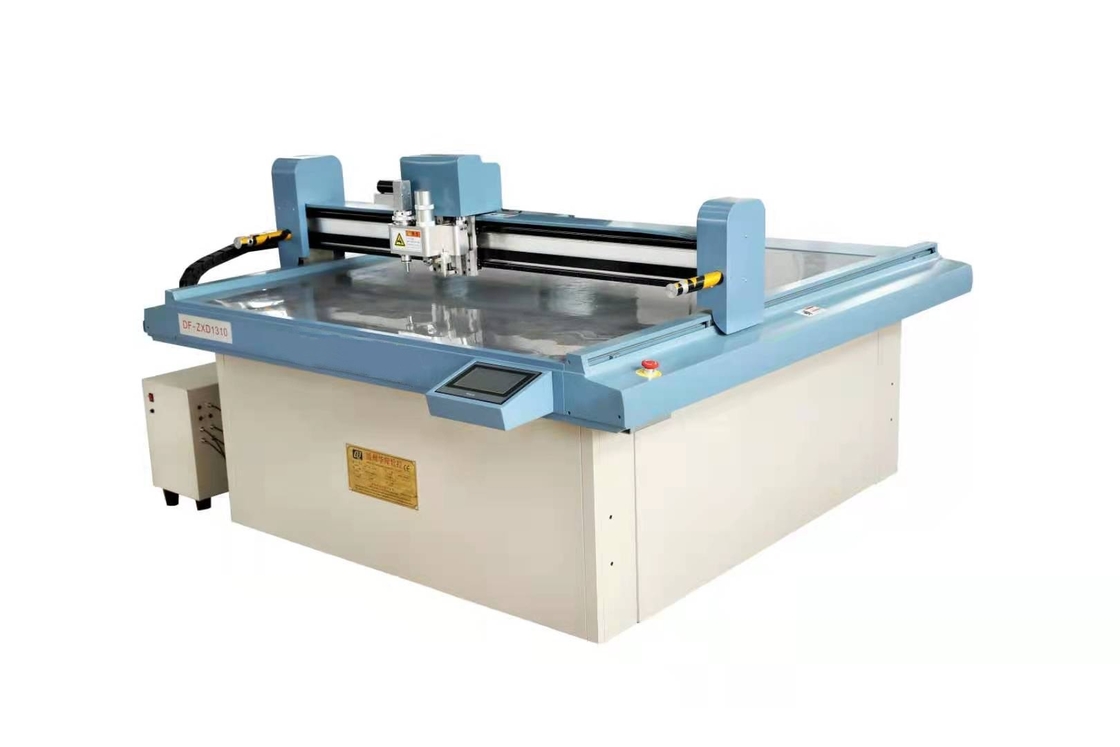

Carton Box Sample Maker Cutting Machine Paper Plotter

Carton Box Sample Maker Cutting Machine Paper Plotter

Carton Box Sample Maker Cutting Machine

Drawing Sample Maker Cutting Machine

Sample Plotter Machine

Place of Origin:


Brand Name:




Model Number:


Contact Us

Request A Quote
Product Details
Cutting Thickness:
T Is Used In Packaging, Paper Box, Corrugated Paper Box, Color Print Etc.
Graphic Format Supported:
Dxf, Ai
Cutting Speed:
1 Year
Product Name:
Carton Box Sample Maker Cutting Machine
Drawing , Half-cut, V-cut, Cutting
Payment & Shipping Terms
Minimum Order Quantity
1 set
Packaging Details
wooden cases
Supply Ability
5 sets 1 month
Product Description

carton box sample maker cutting machine



It is used in Packaging, paper box, corrugated paper box, color print etc.

Cutting different materials(up to 30 mm):

It can cut such materials as card paper, corrugated paper, duplex board, PVC, grey paper board and composite materials etc.

Pressing folding line:

It can press perfect line in the corrugated paper, cardboard, grey board etc.

Half-cut and dot line cutting:

It can half-cut on corrugated paper and also dot-line cut on grey board for folding.


It can accurately locate and cut the printed paper box.

Drawing function :

It can draw an accurate figure on a paper and a film.

V Cutting:

It can be cutting V groove





Model DF-ZXD1310 DF-ZXD1713 DF-ZXD2516
Cutting area(mm) 1300*1000 1700*1300 2500*1600
Floor area(mm) 1950*1840*1150 2350*2140*1150 3150*2440*1150
Cutting material Cardboard, corrugated paper, PVC, grey paper , foam, composite materials etc
Max cutting thickness 30mm
Positioning precision ≤0.1mm
Fixed type Vacuum absorption
Cutting precision ≤0.1mm
Min cutting radius 3mm
Tool Oscillating blade , Pen ,Creasing wheel ,Drag knife ,V knife
Command system HPGL
Travel speed 40-1350mm/S
Power supply 220V±10%50HZ/380V±10%50HZ
Driving system Servo
Transmission materials Straight-line guide rails and imported synchronous belts
NOTE: The cutting area available for customization



Company Introduction:

Our company was established in 1998.Our main products are Auto Bender, Laser cutter, Diecutting machine, Hot stamping machine, Laminator, Dieboard making tools and consumables in Packaging and Printing industry.


With our Auto Bender and Laser cutter, manual tools, users can set up or upgrade dieshop easily and raise efficiency greatly.Our high quality cutting rules feature good hardness and perfect flexibility and we also have various kinds of creasing rules, perforating rules, wave rules, cut-crease rules, zipper rules and glue flap rules.


We also specialize in doctor blades, creasing matrix, jigsaw blades and different kinds of punches, click die steel, plywood as dieboards, drawing films, ejection rubber and equipment related in die cutting industry. We are always ready to provide complete products for cutting products making, printing and packaging.
