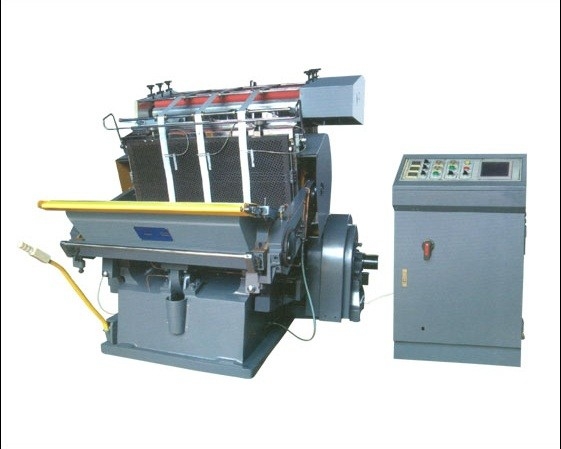

1100 Hologram Positioning Plc Hot Stamping Equipment Concave Convex Shaping
Hot Foil Stamping Machine
,Die Cutting Machine
1100 Hologram Positioning Plc Hot Stamping Equipment Concave Convex Shaping
Specifications
Hologram Positioning Foil Stamping Machine
hot stamping,
positioning,
concave convex shaping
in one time process
1. The Hologram Positioning Computerized Hot Foil Stamping Machine have the function of hot stamping, positioning, concave convex shaping in one time process, and it could do die cutting work as well.
2. The display system adopts the touch screen, it’s easy to operate and improves the production efficiency.
3. It adopts imported PLC internal micro computer to control 5 groups, drive the pace separately, and the pace length is easy to regulate.
4. The temperature control has been divided into 5 individual heating zone, fast heating, electricity saving, each temperature zone could keep constant temperature automatically and display the instant temperature degree, which improve the stamping quality.
Specifications:
|
Model |
1100 |
|
Max. inside chase size (mm) |
1100×800 |
|
Max. stamping size (mm) |
1100×800 |
|
Speed (sheets/min) |
23±2 |
|
Groups of feeding foil |
5 |
|
Max. foil feeding length(mm) |
800 |
|
Leapfrog frequency |
0-99 |
|
Adjustable temperature (C) |
10-300 |
|
Zones individually heated |
5 |
|
Heating capacity (kw) |
15 |
|
Motor power (kw) |
5.5kw6pole |
|
Total power (kw) |
25.5 |
|
Gross weight (kg) |
6,000 |
|
Dimensions (L×W×H) (mm) |
2520×2170×2200 |
-
