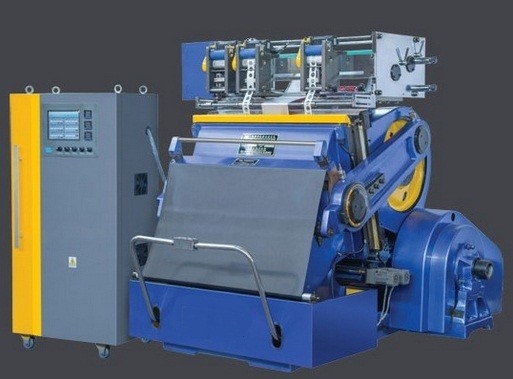

Automatic Foil Hot Stamping Machine 780 Competely For Paper Forming Machine
Specifications
Hot Stamping,Die Cutting,Pressing Convex,Creasing
machine controlled by micro processor
equipped with automatic lubricating
- The780 Automatic Foil Stamping and Die Cutting Machine is designed for the Hot Stamping, Die Cutting, Pressing Convex and Creasing etc technics, it’s suitable for paper, cardboard, plastic film and so on. It can finish feeding, die cutting, collecting work cycle automatically.
- The machine is composed of four parts: main motor, hot stamping, auto feeder and electric equipment. The motor’s main transmission is by bend shaft structure driving the platen running up and down, plus the pressure adjusting structure, coordinate to finish hot stamping or die cutting job.
- The electrical parts are composed of main motor control, feeder/collect control and foil feeder control and so on. The whole machine is controlled by micro processor.
- The machine is equipped with the automatic lubrication system.
Specifications:
|
Model |
780 |
|
Max. sheet size(mm) |
780×560 |
|
Min. sheet size(mm) |
280×220 |
|
Max. feeding pile height (mm) |
800 |
|
Max. collect pile height (mm) |
160 |
|
Max. working pressure(N) |
110×104 |
|
Power rating(KW) |
12 |
|
Air pump displacement(m3/h) |
40 |
|
Paper range(g/m2) |
100 -2000 |
|
Max. mechanical speed (s/h) |
1500s/h paper<150g/m2 2500s/h paper>150g/m2 |
|
Machine weight(kg) |
4300 |
|
Machine noise(db) |
<81 |
|
Heating capacity(KW) |
8 |
|
Overall machine dimensions(mm) |
2700×1820×2020 |
-
