Hot Stamping Die Cutter Machine 15 Ton 590×440mm 0.8 - 1.2mpa
0.8mpa die cutter Machine
,Hot stamping die cutter Machine
,die Cutting Equipment 15Ton
Hot stamping die cutter
Features:
1. One man operation with easy parameters setting on touch screen, mainly used for hot stamping, embossing and die cutting on various materials.
2. Boosting cylinder from German technology, air over hydraulic reinforcement driving system, freely switching from two-stroke and three-stroke, ensure high efficiency and energy-saving.

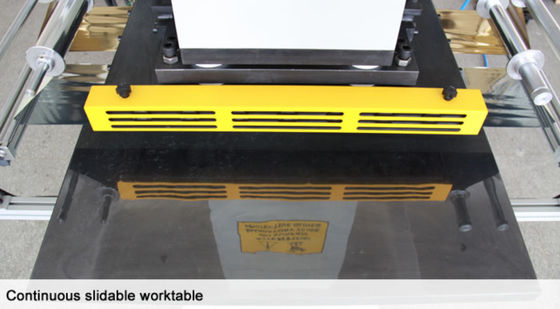

3. Linear guideway from HIWIN, Taiwan, ensure high precision on sliding out and in of the worktable.
4. CE standard, safety device and electrical system is equipped: Omron Safety light curtain, Heat protective cover, Omron touch screen, Digital control, Working status display.
5. Adjustable delay time and pressure for hot stamping to achieve various results.
6. Two groups foil running, length and skip steps can be set on touch screen as you wish.
7. Foot pedal for more efficiency working and easy operation.
Specifications:
Hot Stamping & Die Cutting Machine
| Model | TJM-568-8T | TJM-568-15T | TJM-568-30T |
| Max. Pressure | 8 Ton | 15 Ton | 30 Ton |
| Max. Stamping Size | 510×390mm | 590×440mm | 780×540mm |
| Max. Cutting Area | 490×370mm | 570×420mm | 760×520mm |
| Worktable Area | 780×490mm | 880×540mm | 980×640mm |
| Max. Working Height | 100mm | 100mm | 100mm |
| Workable Stroke | 160mm | 200mm | 250mm |
| Temperature | 0~300℃ | 0~300℃ | 0~300℃ |
| Air Supply | 0.8~1.2mpa | 0.8~1.2mpa | 0.8~1.2mpa |
| Total Power | 4.8kw | 5.8kw | 7.8kw |
| Weight | 900kgs | 1200kg | 1600kg |
| Dimension(LxWxH) | 1120×890×1940mm | 1200×960×1990mm | 1440×1330×2010mm |
Company Profile:
Our main products are Auto Bender, Laser cutter, Diecutting machine, Hot stamping machine, Laminator, Dieboard making tools and consumables in Packaging and Printing industry.
With our Auto Bender and Laser cutter, manual tools, users can set up or upgrade dieshop easily and raise efficiency greatly. Our high quality cutting rules feature good hardness and perfect flexibility and we also have various kinds of creasing rules, perforating rules, wave rules, cut-crease rules, zipper rules and glue flap rules.
FAQ
We are based in Shanghai, China, start from 2008, sell to South America ,South Asia ,Mid East,Eastern Europe(,Southeast Asia,North America,Southern Europe. There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Cutting rule,Auto bender,Laser cutting machine
4. why should you buy from us not from other suppliers?
Our company is in the printing and packaging industry since 2008, we provide machines and consumables mainly in the after printing industry, especially die cutting, paper cutting, box folding and pasting, laser cutting and CNC engraving.
5. what services can we provide?
Delivery Terms: FOB, CFR, CIF,EXW,CIP,Express Delivery；
Payment Currency: USD,EUR,JPY,CAD
Payment Type: T/T,L/C,MoneyGram,Credit Card;
Language Spoken:English,Chinese
-
