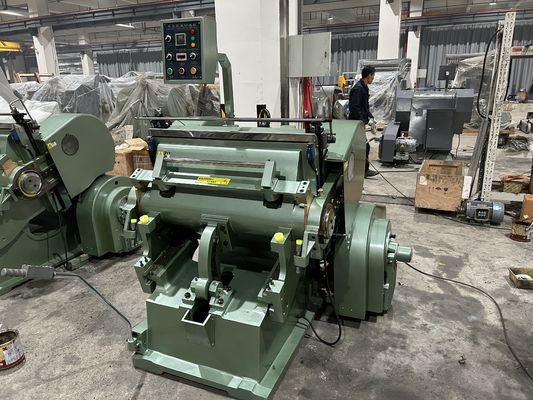

Die Cutting And Creasing Machine For Paper Paperboard Corrugated Board

Die Cutting And Creasing Machine For Paper Paperboard Corrugated Board

Corrugated Board Die Cutter

Paper Die Cutting And Creasing Machine

Paperboard Die Cutting And Creasing Machine

Place of Origin:

china

Brand Name:

PM

Certification:

ce

Model Number:

ML-1100

Contact Us

Request A Quote
Product Details
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
USD8500
Packaging Details
wooden case
Delivery Time
5-8 work days
Payment Terms
L/C, T/T
Supply Ability
10 sets/ month
Product Description

Die cutting machine

Application:



It is used for die cutting and creasing various types of paper, paperboard, corrugated board, label, and plastic sheets, with single pressing and cutting, continuous pressing and cutting, and an adjustable time delay during the continuation. The operation system is well-designed and easy to use, and the clamp for pressing can be opened at a wide angle. It is equipped with a central lubrication system and automatic oil pumps. The body of the machine is made of high-strength cast iron. It is also equipped with a large flywheel, which can ensure high pressure for cutting.

Suitable materials:

Paper and paperboard

Corrugated board

Sticky label (kiss cut)

Plastic sheets, e.g., PVC and PP sheets (need to add the optional heating plate)



Specification
Model Inner Chase Size(mm)

Speed

(strokes/min)

Max.Rule Length(m) Motor Power(kw) Weight(t) Overall Dimensions(mm)
ML-750 750*520 26±2 <15 2.2kw 1.8 1450×1300×1400
ML-930 930*670 23±2 <25 4kw 2.7 1550×1800×1650
ML-1040 1040*720 23±2 <30 4kw 3 1650×1800×1650
ML-1100 1100*800 20±2 <32 4kw 3.7 1800×1900×1800
ML-1200 1200*820 20±2 <35 4kw 4.2 1900×1900×1800
ML-1300 1300*920 16±2 <40 5.5kw 5.3 2100×1900×2000
ML-1400 1400*1000 15±2 <45 5.5kw 6 2200×1900×2000
ML-1500 1500*1050 14±2 <48 7.5kw 6.2 2300×1900×2000
ML-1600 1600*1250 13±2 <50 11kw 10.5 2800×2300×2400
ML-1800 1800*1300 13±2 <60 11kw 11.5 3000×2300×2500
ML-2000 2000*1400 13±2 <65 15kw 14 3200×2400×2600
ML-2200 2200*1400 13±2 <70 15kw 15 3400×2400×2600
ML-2500 2500*1400 11±3 <80 22kw 16 3700×2400×2600
ML-2800 2800×1600 11±3 <85 30kw 18 4000×2400×2600
ML-3000 3000×1600 11±3 <90 30kw 20 4200×2400×2600



Features:

The heavy-duty machine body is made of cast iron (resin sand casting), which ensures its high strength and durability.

Die Cutting And Creasing Machine For Paper Paperboard Corrugated Board 0



The large flywheel and helical gears allow the machine to run smoothly and at high pressure.



Die Cutting And Creasing Machine For Paper Paperboard Corrugated Board 1

The advanced automatic central lubrication system ensures full lubrication for every necessary transmission part.



Die Cutting And Creasing Machine For Paper Paperboard Corrugated Board 2
