China Hot Foil Stamping Machine For Bottle Pneumatic Hot Stamping Printing Machine

China Hot Foil Stamping Machine For Bottle Pneumatic Hot Stamping Printing Machine

Bottle Hot Foil Stamping Machine

Pneumatic Hot Foil Stamping Machine

China Hot Foil Stamping Machine

Place of Origin:

china

Certification:

CE

Model Number:

TJM-568-8T

Contact Us

Request A Quote
Product Details
Product Name:
Paper Bags Stamping Machine
Max. Pressure:
8 Ton
Max. Stamping Size:
510×390mm
Max. Cutting Area:
490×370mm
Worktable Area:
780×490mm
Max. Working Height:
100mm
Dimension(LxWxH):
1120×890×1940mm
Weight:
900kgs
Total Power:
4.8kw
Air Supply:
0.8~1.2mpa
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
USD16800
Packaging Details
PLYWOOD CASE
Delivery Time
10 DAYS
Payment Terms
L/C, T/T, Western Union, MoneyGram
Supply Ability
20 SETS/MONTH
Product Description

Hot Foil Stamping Machine For Bottle Pneumatic Hot Stamping Printing Machine

Description:

1. One man operation with easy parameters setting on touch screen, mainly used for hot stamping, embossing and die cutting on various materials.

2. Boosting cylinder from German technology, air over hydraulic reinforcement driving system, freely switching from two-stroke and three-stroke, ensure high efficiency and energy-saving.

3. Linear guideway from HIWIN, Taiwan, ensure high precision on sliding out and in of the worktable.

4. Adjustable delay time and pressure for hot stamping to achieve various results.

5. Two groups foil running, length and skip steps can be set on touch screen as you wish.

6. Foot pedal for more efficiency working and easy operation.



Specifications:



Model TJM-568-8T TJM-568-15T TJM-568-30T
Max. Pressure 8 Ton 15 Ton 30 Ton
Max. Stamping Size 510×390mm 590×440mm 780×540mm
Max. Cutting Area 490×370mm 570×420mm 760×520mm
Worktable Area 780×490mm 880×540mm 980×640mm
Max. Working Height 100mm 100mm 100mm
Workable Stroke 160mm 200mm 250mm
Temperature 0~300℃ 0~300℃ 0~300℃
Air Supply 0.8~1.2mpa 0.8~1.2mpa 0.8~1.2mpa
Total Power 4.8kw 5.8kw 7.8kw
Weight 900kgs 1200kg 1600kg
Dimension(LxWxH) 1120×890×1940mm 1200×960×1990mm 1440×1330×2010mm

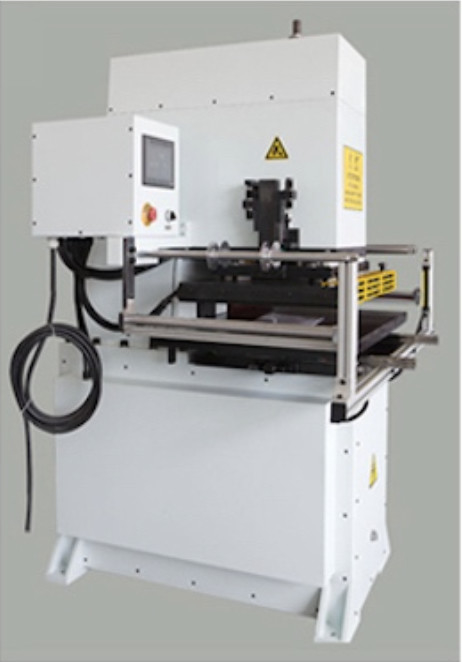

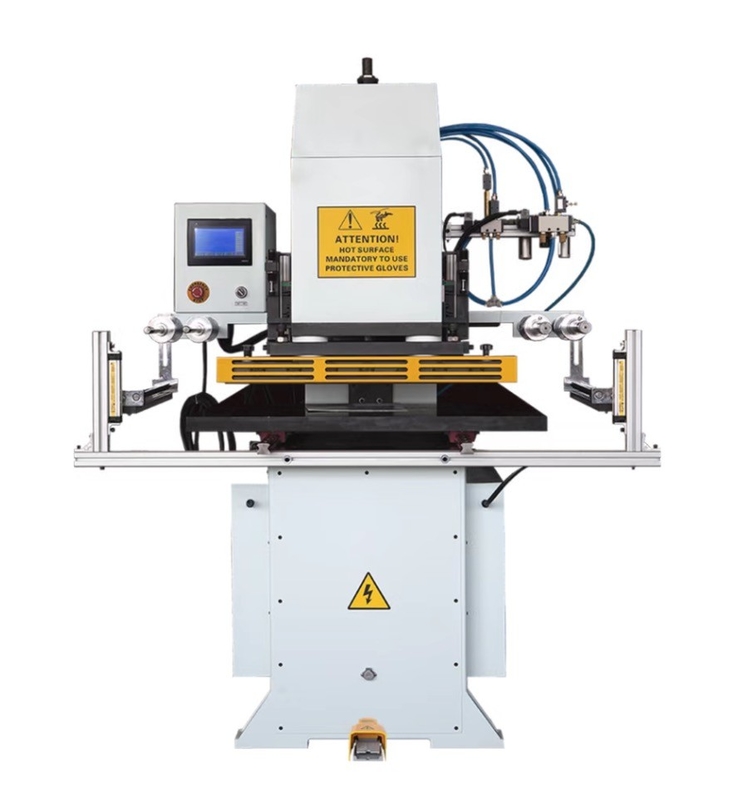

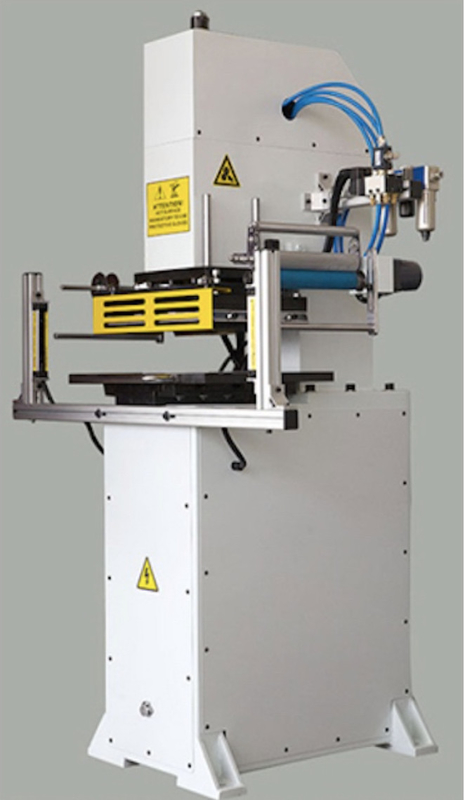

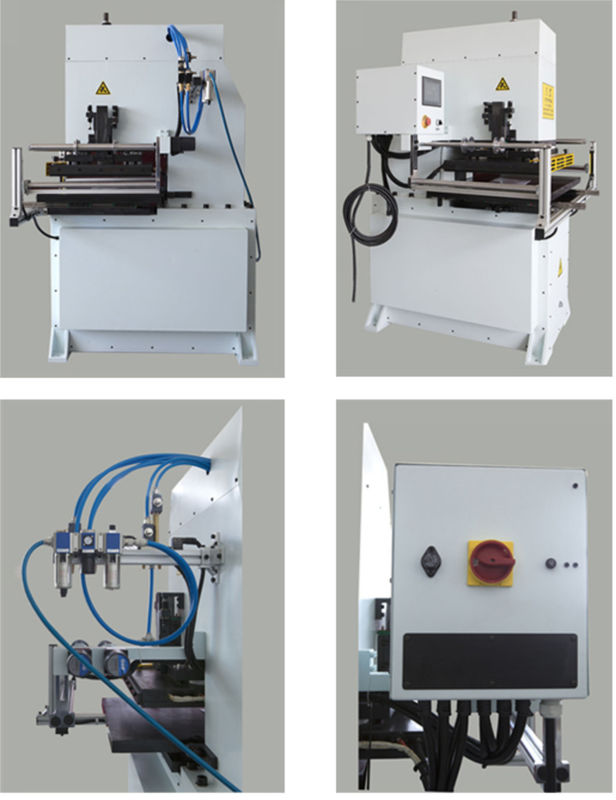

China Hot Foil Stamping Machine For Bottle Pneumatic Hot Stamping Printing Machine 0



China Hot Foil Stamping Machine For Bottle Pneumatic Hot Stamping Printing Machine 1China Hot Foil Stamping Machine For Bottle Pneumatic Hot Stamping Printing Machine 2



China Hot Foil Stamping Machine For Bottle Pneumatic Hot Stamping Printing Machine 3

China Hot Foil Stamping Machine For Bottle Pneumatic Hot Stamping Printing Machine 4



China Hot Foil Stamping Machine For Bottle Pneumatic Hot Stamping Printing Machine 5

Company Profile:

China Hot Foil Stamping Machine For Bottle Pneumatic Hot Stamping Printing Machine 6

Our main products are Auto Bender, Laser cutter, Diecutting machine, Hot stamping machine, Laminator, Dieboard making tools and consumables in Packaging and Printing industry.



With our Auto Bender and Laser cutter, manual tools, users can set up or upgrade dieshop easily and raise efficiency greatly. Our high quality cutting rules feature good hardness and perfect flexibility and we also have various kinds of creasing rules, perforating rules, wave rules, cut-crease rules, zipper rules and glue flap rules.



FAQ

1. who are we?
We are based in Shanghai, China, start from 2008, sell to South America ,South Asia ,Mid East,Eastern Europe(,Southeast Asia,North America,Southern Europe. There are total about 5-10 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Cutting rule,Auto bender,Laser cutting machine

4. why should you buy from us not from other suppliers?
Our company is in the printing and packaging industry since 2008, we provide machines and consumables mainly in the after printing industry, especially die cutting, paper cutting, box folding and pasting, laser cutting and CNC engraving.
