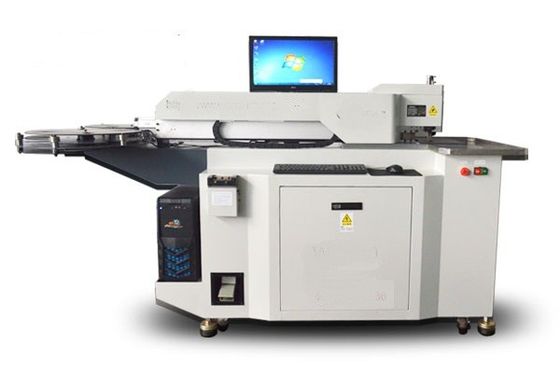

Completely Computer Control Die Cutting Rule Auto Bending Machine For Dieboard Making

Completely Computer Control Diecutting rule Auto Bending Machine for Dieboard making

Competitive Advantage

1. The price of this machine is competitive which is less than 16000 whcih is suitable to the beginner. The price is also economic for  the people who wants to grow the business

2. We have been specialized in Diecutting industry since 2001

3. Our machine is using Korean YDWS style bending to get very small angle, and using Japanese Multi-Bender style servo screw bar feeding rule to ensure accuracy

4. We can provide clients with a complete project of dieboard making equipment such as laser cutter, manual bender, jigsaw machine and consumable products.

Processing Specifications:

Description of Auto bending machine:

1, Main specification:

Size: 2580x710x1700mm

Gross Weight: 450Kg

Electricity:220V AC    50Hz (60Hz is available)  1.4kw

Compressor requirement:5Kg/cm² pressure,10mm pipe diameter

Operating system:Microsoft Windows XP Windows7
Language:English

Supporting Design format:DXF,AI,PIT(AI, plt can be imported directly)

Cutting blade height:8.0-30.0mm

Cutting blade thickness:0.45-0.71mm

Lipping:Using electric motor control (23.8mm to 30mm height) Auto lipping,

software controls lipping height

Notching (Bridge): Using pneumatic way to notch, the size of bridge is customized.

2, List of Components (PM-2014A model):

    1.Rule cassette                     2 pcs

    6.Operation software

    7.Lipping matrix                     1 set

    8.Dongle

Machine component:

Panasonic A5 servo, Japan Shimpo reducer, Taiwan HIWIN leading bar, OMRON sensor, Japan SMC Pneumatic, AirTAC magnetic valve

PM 2015 is a multi-functional automatic bending machine, the model with automatic level olecranon, automatic bridge site (anti-card knife with inflatable waste discharge), automatic bending, two-way cut, continuous screw feeding, Korean plug pin bend.

1. Humanized design, operation easier. Its function; automatic continuous level bridge site, around the level of the olecranon automatic, two-way flat cut, continuous processing mode without manned.

(Advantage: supporting continuous feed screw pins are bent, not only to ensure accuracy while bending more in place, reducing the time to repair a knife)

1. The portable pole plate design, the tool changer more secure, convenient and quick.

Cut mode, when the election is no need to identify the graphic chart automatically reverse direction can be easily cut, this function effectively solved due to the head-end graphics straight shorter or restricted and can not cut the drawbacks. Intuit do not play a significant role when unattended, saving time and cutting jobs expected to make more convenient machete.

1. The software can be self-developed free lifetime upgrades, support layer selection, fully supported formats are: PLT, AI, DXF. (Can make changes according to customer special requirements)
2. Matsushita servo feed fast and precise, using Taiwan silver rod, pneumatic double clip blade slip design, high accuracy. Highlighting the effect for bending flower knife, wavy knife.
3. Operation is simple, the only Intuit shortcuts custom module, the user can customize the settings shortcut keys, editing and processing in real-time switching interface, full mouse operation also makes the operation easier. Click and marquee graphics support, from the pick to the processing without waiting, while the pick side processing. Processed map support save feature. Knife material suitable height: 8 mm-30 mm, thickness of ordinary type material for knife 0.45 mm-0.71 mm (thickness 1.07 special hydraulic system with optional)Scope: dolls, paper, cartoon, logo, suction Schomburg, stickers and so on. For industry: packaging, printing, footwear, electronics. All wearing parts quality assurance, high strength, toughness, and the implementation of quality assurance. Charge after the warranty period of wearing parts and maintenance costs of the company are the main pipe line transmission of information. Subject to final approval.
4. 12 months warranty

Applications:

This machine can be widely used in diecutting making area such as dieshop, package factory, dieboard maker shop and printing press.
