Ck-9 Yck-6 Manual Notching Machine Bridge / Metal Punching Machine
Specifications
Punch the bridge on the body of the rule for easy and fast insert the rule into the plywood dieboard
Punch slot is 3,4,6.9mm
We have 2 kind of Punching machine

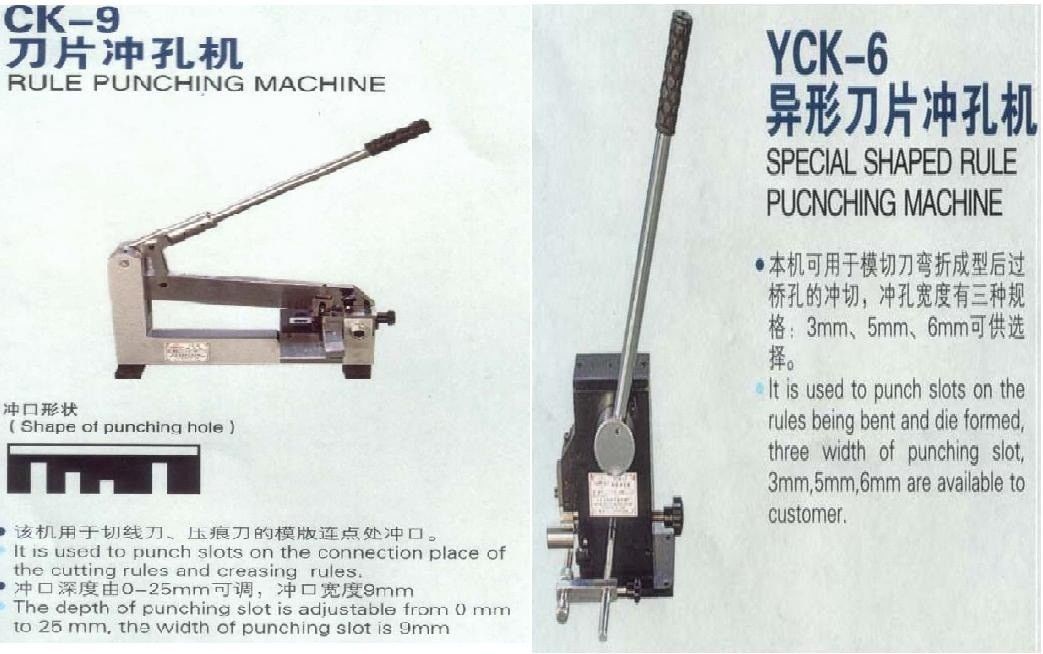

1. CK-9 RULE PUNCHING MACHINE
It's used to punch slots on the connection place of the cutting rules and creasing rules
The depth of punching slot is adjustable from 0mm to 25mm, the width of punching slot is 9mm, but depth can be decided by the buyer when making the punching knife
2. YCK-6 SPECIAL SHAPED RULE PUNCHING MACHINE
It's used to punch slots on the rules being bent and die formed, three width of punching slot, 3mm, 5mm, 6mm are available to customer.
-
